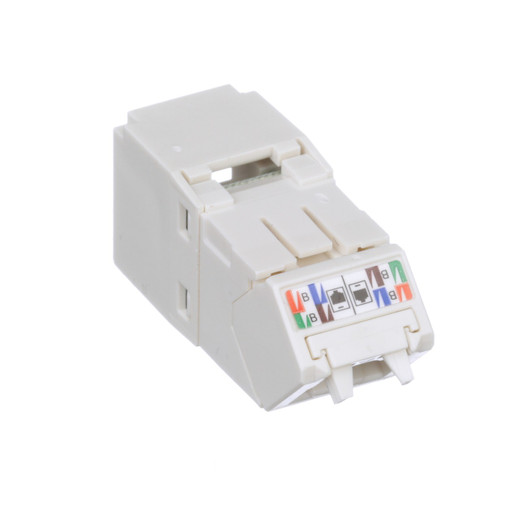

Panduit CJUD688TGIW Cat 6 UP Down 45DEGREE Wirecap Jack M EA
Panduit CJUD688TGIW Cat 6 UP Down 45DEGREE Wirecap Jack M EA
CJUD688TGIW
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Panduit CJUD688TGIW Cat 6 UP Down 45DEGREE Wirecap Jack M EA

Overview

The Panduit CJUD688TGIW is a Mini-Com® Cat 6 UTP RJ45 Up/Down 45° Angled TG Jack Module designed for terminating 4-pair, 22-26 AWG twisted pair cable. Its angled design improves cable routing in confined spaces, making it ideal for installations with limited room behind the wall plate or patch panel. This module is 100% factory tested to exceed industry standard performance requirements, ensuring reliable data transmission.

Compatibility

This jack module is compatible with Mini-Com Modular Patch Panels and Faceplates. It supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE), drawing power up to the Class 4 level without impacting network performance. It meets channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 standards for Category 6 copper systems.

Installation Notes

The TG style termination on this jack module eliminates the need for a specialized termination tool, simplifying the installation process. Each jack is individually serialized for traceability. The module supports 2500 connection cycles, providing long-term reliability. It is also UL 1863 and UL 2043 compliant, and RoHS compliant.

Expert Analysis
Specifications
Poe Power: PoE++ (802.3bt)
Sub Brand: Pan-Net®
Color: Off White
Height In: 0.71
Height Mm: 18
Width In: 0.62
Width Mm: 15.7
Product Type: Jack Module
Carton Qty: 50
Package Qty: 1
Upc: 61305644981
Cable Category: copper-systems
Q&A
Reviews
Product Video
Have Questions?

Panduit CJUD688TGIW Cat 6 UP Down 45DEGREE Wirecap Jack M EA

$19.73
$14.99
Add to Cart
