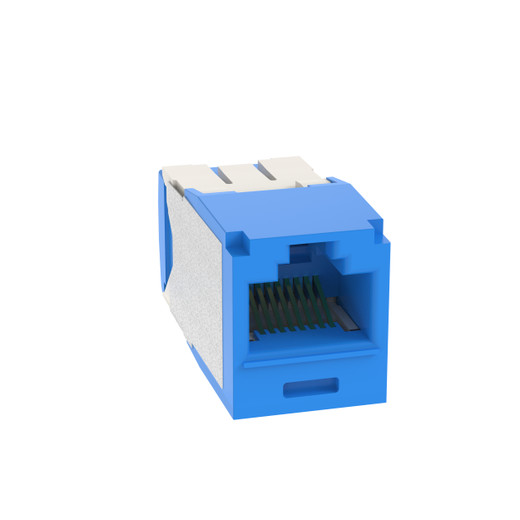

Panduit CJ6X88TGBU CAT6A RJ45 Jack Module
Overview
The Panduit CJ6X88TGBU is a Pan-Nettie™ Mini-Com™ Category 6A UTP RJ45 jack module designed for terminating 4-pair, 22-26 AWG twisted-pair cables. It solves the installation complexity of traditional punch-down connectors by using a TG-style termination that eliminates the need for a dedicated punch-down tool. This module is factory tested to exceed performance requirements, ensuring reliable 10 Gb/s data transmission in enterprise network deployments.
Compatibility
This module is compatible with Panduit Mini-Com™ modular patch panels and faceplates. It meets ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel performance requirements for 10GBASE-T transmission up to 100 meters, with a sweep frequency of 1-500 MHz. It is also qualified for IEEE 802.3af/at PoE and proposed for 802.3bt Types 3 and 4, making it suitable for powering network devices.
Installation Notes
The TG-style termination is designed for tool-less installation, simplifying field terminations. Each jack module features a traceable individual serial number. It meets ANSI/TIA-1096-A, IEC 60603-7, and IEC 60512-99-001 standards for connectivity. The module is rated for 2500 cycles with IEEE 802.3af/at and proposed for 802.3bt standards.
