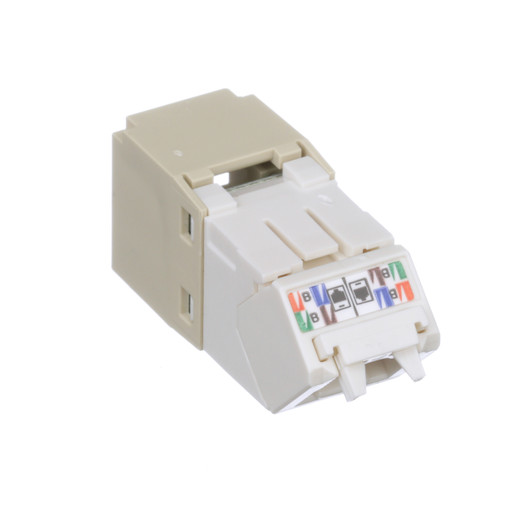

Panduit CJUD688TGEI RJ45 Jack Module

Overview

The Panduit CJUD688TGEI is a Cat 6 UTP RJ45 Up/Down 45° Angled TG Jack Module designed for terminating 4-pair, 22-26 AWG twisted pair cable. Its angled design specifically improves cable routing in confined spaces, making it ideal for installations where space is at a premium, such as high-density server racks or wall-mounted network distribution points. Each module is 100% factory tested to exceed ANSI/TIA-568.2-D and ISO 11801 channel and component requirements for its category.

Compatibility

This jack module is compatible with Mini-Com Modular Patch Panels and Faceplates. It supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++) standards, ensuring it can handle the power requirements of PoE-enabled devices without performance degradation. It meets IEC 60603-7 specifications and supports 2500 connection cycles.

Installation Notes

The TG style termination eliminates the need for specialized termination tools, simplifying installation. Each jack is individually serialized for traceability. The module is UL 1863 and UL 2043 compliant and RoHS compliant.
