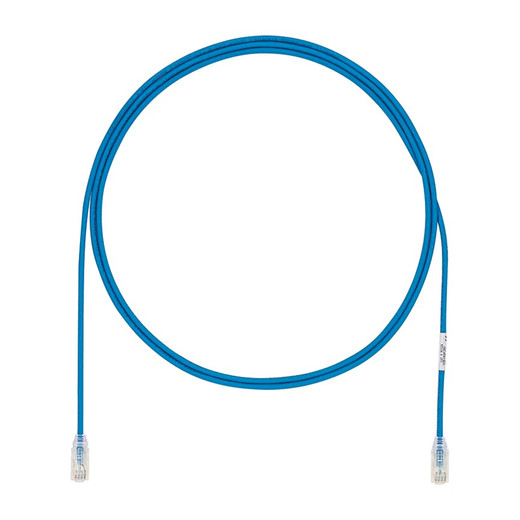

Panduit UTP28X7OR Cat 6A Patch Cord
Panduit UTP28X7OR Cat 6A Patch Cord
UTP28X7OR
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Panduit UTP28X7OR Cat 6A Patch Cord

Overview

The Panduit UTP28X7OR is a 7-foot, Cat 6A, 28 AWG unshielded twisted pair (U/UTP) patch cord designed for high-speed data transmission and Power over Ethernet (PoE) applications. Its compact 28 AWG diameter simplifies routing in dense environments like data centers and enterprise networks, while the CM/LSZH jacket offers fire safety compliance. This cord supports up to 500 MHz, ensuring performance for 10GBASE-T Ethernet and beyond.

Compatibility

This patch cord is engineered to meet ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, guaranteeing performance for 10GBASE-T Ethernet up to 100 meters. It is also rated for IEEE 802.3af/at (PoE+) and IEEE 802.3bt Type 3 and Type 4 (PoE++) applications, supporting up to 90W of power delivery. The RJ45 connectors are compatible with standard Ethernet ports found on switches, servers, and network devices from major manufacturers.

Installation Notes

Featuring a patented tangle-free latch, this cord prevents snags during installation and removal, streamlining moves, adds, and changes. The integrated barcode (RapidID) allows for quick identification and mapping within your network infrastructure. The centered de-embedded plug design ensures consistent performance and reliable connections.

Expert Analysis
Specifications
Product Type: Cat 6A Patch Cord
MPN: UTP28X7OR
Cable Category: Category 6A
Cable Construction: U/UTP (Unshielded Twisted Pair)
Conductor Gauge: 28 AWG
Conductor Type: Solid Copper
Overall Diameter: 0.185 in (4.7 mm)
Length: 7 ft (2.13 m)
Jacket Color: Orange
Flammability Rating: CM/LSZH
Connector 1: RJ45 Modular Plug (8P8C)
Connector 2: RJ45 Modular Plug (8P8C)
Performance Standard: ANSI/TIA-568.2-D Cat 6A, ISO 11801 Class EA
Frequency Range: Up to 500 MHz
Application: 10GBASE-T Ethernet, Data Center, PoE++
PoE Support: IEEE 802.3af/at/bt Type 3 & 4 (up to 90W)
Testing: 100% Factory Tested (Wire Map, NEXT, Return Loss)
Certifications: cULus Listed (UL 1863, CSA C22.2), RoHS Compliant
Special Features: Tangle-Free Latch, RapidID Barcode, Centered Plug
Package Quantity: 1 Each
Carton Quantity: 10
Connectivity: RJ45 to RJ45
Type: Cat 6A Patch Cord
Poe Power: PoE++ (802.3bt)
Sub Brand: Pan-Net®
Color: Orange
Length Ft: 7
Length M: 2.13
Carton Qty: 10
Package Qty: 1
Upc: 07498304962
