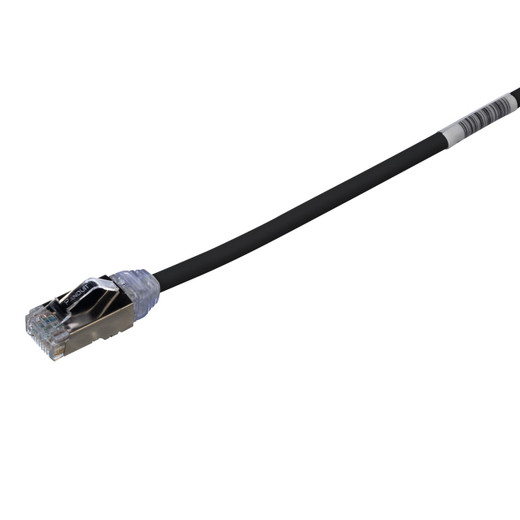

Panduit STP28X3MBL Cat 6A 28 AWG Shielded Patch Cord

High-density 10GBASE-T networks demand patch cords that deliver full Category 6A performance without choking switch cabinets or blocking airflow. Panduit's TX6A-28 series addresses both challenges with a shielded, 28 AWG design that runs 37% thinner than standard Cat 6A cords while maintaining 500 MHz bandwidth and alien crosstalk immunity. The STP28X3MBL delivers 3 meters of Black F/UTP cable with pre-installed RapidID barcodes, tangle-free latches, and solid-conductor construction optimized for data center I/O consolidation, server virtualization backbones, and high-speed computing clusters where cabinet real estate and thermal management are as critical as link integrity.

Key Features

• 28 AWG solid shielded twisted pair cable — 0.185" (4.7mm) diameter for maximum port density and improved airflow in congested switch cabinets
• 3-meter (9.8 ft) Black CM/LSZH jacket — reduced smoke and halogen emission for confined-space installations and international fire-safety compliance
• F/UTP shielding with high-performance modular plugs — foil shield across all four pairs blocks EMI and alien crosstalk in high-density 10G environments
• Tangle-free latch design — prevents snags during MAC (moves, adds, changes) and allows fast one-hand release without damaging adjacent cords
• RapidID pre-installed barcodes — enables automated port mapping and asset tracking via Panduit's RapidID software, eliminating manual documentation errors
• Exceeds ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA — tested to 500 MHz with margin for 10GBASE-T, ensuring long-term headroom
• Supports IEEE 802.3bt Type 3 and Type 4 PoE — delivers up to 90W per port for high-power devices (PTZ cameras, Wi-Fi 6E APs, VoIP phones) without performance degradation
• Solid 28 AWG conductors — lower DC resistance than stranded variants, reducing insertion loss and improving PoE power budget over 3-meter runs
• T568A/T568B wiring compatibility — universal pinout works with both TIA wiring schemes without adapter dongles or re-termination
• UL 1863 and CAN/CSA-C22.2 listed (File E129886) — third-party safety certification for commercial and enterprise installations

The 28 AWG conductor gauge is the defining advantage in modern data center deployments. Standard Cat 6A patch cords use 23 or 24 AWG cable, yielding diameters near 0.28" that stack poorly and trap heat. Panduit's TX6A-28 series cuts that footprint by over a third while maintaining F/UTP shielding — a foil wrap around all four pairs that blocks electromagnetic interference from adjacent cables and electrical equipment. This shielding is critical in top-of-rack (ToR) switch deployments where 48-port switches run at full 10 Gbps capacity; unshielded U/UTP cords exhibit alien crosstalk (noise coupling between cables) that degrades link margins and triggers CRC errors under sustained load. The STP28X3MBL's foil barrier isolates each cable, allowing you to bundle dozens of cords in a single vertical manager without sacrificing the 500 MHz bandwidth required for 10GBASE-T. Solid conductors further improve performance: unlike stranded patch cords designed for flexibility, solid 28 AWG maintains consistent impedance and lower attenuation across the 1–500 MHz spectrum, which translates to better bit error rates and longer maximum channel lengths when combined with structured cabling. Panduit's modular plugs use 50-microinch gold plating on all contact points and a load bar that seats each conductor against the plug's IDC (insulation displacement contact) without nicking the copper — a manufacturing precision that ensures less than 0.2 dB insertion loss per connector, well below TIA's 0.4 dB budget.

Deployment context matters as much as specs. The STP28X3MBL is purpose-built for scenarios where port density and thermal efficiency drive design: server virtualization fabrics running VMware NSX or Microsoft Hyper-V, where each ESXi host aggregates dozens of virtual NICs over a pair of 10G uplinks; storage area networks (SANs) using iSCSI or NFS over 10GBASE-T, where low latency and zero packet loss are non-negotiable; and high-performance computing (HPC) clusters running MPI workloads across hundreds of nodes, where cable-induced skew or crosstalk can bottleneck parallel processing. The 3-meter length suits typical rack-to-rack or in-row switch connections without excess slack — long enough to route from a bottom-mounted switch to a top-U server (accounting for vertical and horizontal cable management), short enough to avoid the coiled loops that create inductive coupling and degrade signal integrity. The tangle-free latch addresses a chronic pain point in MACs: standard RJ45 boots snag on adjacent cables during insertion or removal, forcing technicians to either yank (risking plug damage) or spend minutes untangling. Panduit's latch uses a recessed, low-profile design that clicks into the jack's retaining clip without protruding laterally, so you can insert and remove cords in densely packed switch ports without disturbing neighbors. RapidID takes this further by embedding a machine-readable barcode on each cord — scan the barcode during installation, and Panduit's RapidID software auto-populates your DCIM (data center infrastructure management) database with port mappings, serial numbers, and patch history. This eliminates the manual documentation errors that plague network audits and change windows.

Standards compliance provides the foundation for interoperability and long-term reliability. The STP28X3MBL exceeds ANSI/TIA-568.2-D Category 6A performance requirements across all frequencies from 1 to 500 MHz, including the alien crosstalk (PSANEXT and PSAACRF) metrics that separate true Cat 6A from uprated Cat 6. It also meets ISO 11801 Class EA for international deployments and IEC 60603-7 for modular plug mechanical durability (750+ insertion cycles). The CM/LSZH jacket satisfies both NEC Article 800 (Communications) requirements for general-purpose plenum substitution and IEC 60332-1 flame propagation limits, while the low-smoke, zero-halogen formulation reduces toxic gas emission during fire — a mandate in many European and Asian markets. PoE support extends to IEEE 802.3bt Type 3 (60W) and Type 4 (90W), the latest standards for high-power devices; the solid 28 AWG conductors exhibit lower DC resistance than stranded equivalents (≤196 Ω/km vs. ≤230 Ω/km), reducing voltage drop and keeping power delivery above the PD's minimum input threshold even at the full 3-meter length. UL File E129886 covers both UL 1863 (Communication Circuit Accessories) and CAN/CSA-C22.2 No. 214, giving you third-party verification for NEC 800.113 and CEC Section 60 installations. The T568A/T568B wiring compatibility ensures the cord works with both legacy (T568B) and modern (T568A) structured cabling without rewiring — pairs 2 and 3 are crossed internally so the plug-to-plug pinout matches either standard, a detail that prevents the "works on some switches but not others" failures common with cheaply manufactured patch cords.
