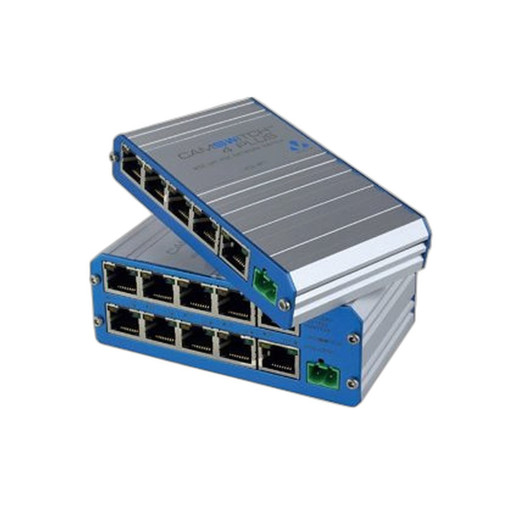

Veracity VCS-4P1 PoE Network Switch
Overview
The Veracity VCS-4P1 CAMSWITCH 4 Plus is a compact PoE+ switch purpose-built for distributed IP camera deployments where you need reliable power and network connectivity over a single cable run. This unit operates on the 802.3at PoE+ standard, delivering up to 3W per port to power surveillance devices across standard Cat5, Cat5e, and Cat6 cabling. The 10/100 Mbps Ethernet rate provides adequate bandwidth for standard-definition and low-bandwidth IP camera streams—sufficient for retail entrance monitoring, small office complexes, and perimeter security without requiring high-throughput infrastructure. RJ45 connectors ensure plug-and-play integration with existing network infrastructure. Operating across −10°C to +50°C, the VCS-4P1 handles both heated indoor facilities and unheated outdoor or field environments typical in surveillance installations. At 290g, the lightweight form factor simplifies mounting in equipment racks, wall enclosures, or cable management systems without additional hardware.
Compatibility
The VCS-4P1 works with any PoE-powered IP camera, access control reader, or network device requiring 802.3at power delivery over standard Ethernet. It is compatible with fixed and PTZ surveillance cameras, IP intercoms, and door controllers drawing under 3W per port. No special configuration is required—the switch operates as a passive PoE injector with plug-and-play Ethernet connectivity. Verify your powered device's PoE requirement does not exceed 3W; devices requiring higher power (e.g., pan-tilt-zoom cameras with heaters) will not operate reliably on this unit.
Installation Notes
Install using standard Cat5, Cat5e, or Cat6 Ethernet cable rated for your environment. For outdoor runs, use UV-resistant or armored variants. The switch requires no power supply or external configuration—it draws minimal power itself and passes PoE directly to connected devices. Ensure all cable terminations use standard RJ45 connectors and are properly crimped to avoid intermittent connectivity. In field deployments spanning multiple seasons, verify the −10°C to +50°C operating range covers your installation geography; temperature excursions outside this range may cause temporary shutdown or data loss.
