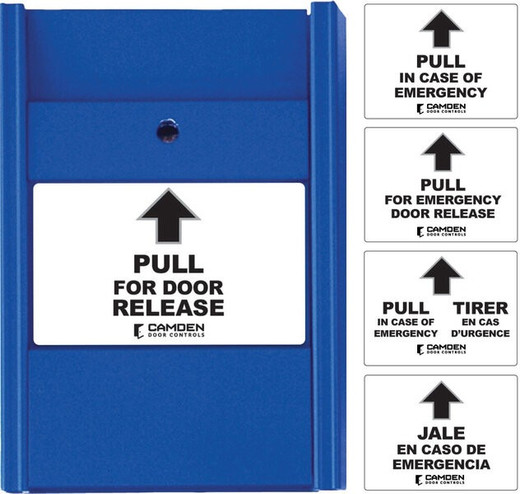

Camden CM-702U Dual N/C Blue Pull Station 30VDC

The Camden CM-702U is a dual normally-closed (N/C) pull station designed for 30VDC networked access control systems requiring hardwired switch activation. Two independent N/C relay outputs allow flexible circuit wiring—primary and secondary door release, door unlock plus alarm trigger, or dual-zone coverage on a single pull. Heavy-duty extruded aluminum construction resists forced entry and vandalism in high-traffic entry areas. Single-gang wall-mount footprint (3/4" protrusion) fits standard electrical boxes without infrastructure modification. This device is purpose-built for emergency exit doors, manual door release scenarios, and access points where physical pull-to-activate control eliminates the need for electronic credential readers.

Key Features

• Dual N/C Relay Outputs: Two independent normally-closed switches rated 1A @ 30VDC each. Wire separate circuits for redundant door releases or combined door release + alarm sounder operation.
• 30VDC Operation: Direct integration with standard access control panels, door controllers, and magnetic lock release modules using 30VDC supply. No additional power conversion required.
• Hardwired Dry-Contact Design: Terminal-block connections (no connectors) ensure simple, field-serviceable wiring. Compatible with legacy and modern access control systems that accept N/C switch inputs.
• Vandal-Resistant Aluminum Housing: Heavy-duty extruded aluminum body withstands forceful pulling and environmental exposure. Blue color meets ANSI/NFPA 101 Life Safety Code aesthetics for emergency egress identification.
• Single-Gang Wall Mount: Compact footprint fits standard electrical boxes; 3/4" wall protrusion minimizes cabinet depth requirements. Includes mounting hardware and screwdriver-accessible reset mechanism.
• Universal Labeling: Shipped with English/French bilingual and English-only label sets. Spanish label variants available via model suffix ('SP'); optional clear protective lift cover ('PC' suffix) adds tamper visibility.
• Contact Rating Verification Required: 1A maximum load @ 30VDC—confirm door release sounder or lock module draw does not exceed 1A to prevent relay degradation or false activation.
• 3-Year Manufacturer Warranty: Covers defects in materials and workmanship under normal access control duty.

Integration and Wiring

The CM-702U integrates into any access control architecture using 30VDC hardwired inputs—from basic door controller systems to networked panels with relay card modules. Each N/C output closure activates independently, allowing you to wire one output to a primary magnetic lock release and the second to an alarm sounder or secondary unlock circuit. Terminal-block design avoids connector inventory and field replacement complexity. Confirm your magnetic lock release or alarm device draws under 1A; oversized loads will cause relay chatter or failure. The pull station does not communicate over IP or serial protocols—it is a pure hardwired switch closure device, making it compatible with both legacy access control hardware and modern networked panels that include dry-contact input modules.

Deployment Scenarios

In emergency exit scenarios, the CM-702U serves as a fail-safe door release—pull activation closes the relay, de-energizing an access-control-integrated magnetic lock or triggering a solenoid strike. This is distinct from credential reader applications; the CM-702U is for facilities requiring rapid manual egress override or areas where credential readers are impractical (stairwells, emergency exits, manual loading docks). On dual-output wiring, one circuit can drive the lock release while the second triggers a local buzzer or alarm, creating immediate audible feedback and a record of pull activation. The vandal-resistant aluminum housing suits high-traffic public entry areas, education campuses, and correctional facilities where physical tampering pressure is routine. For locations requiring integrated audible feedback without external alarm infrastructure, the optional CM-701SO variant includes a built-in sounder module.

Operational Constraints and Maintenance

The CM-702U is not UL-listed for fire alarm systems per manufacturer specification—do not integrate into emergency notification circuits or life safety fire panels. After each pull activation, the internal relay mechanism requires manual reset (screwdriver access to reset button); this prevents accidental re-triggering but adds a procedural step to restoring the pull station to armed state. Contact lifecycle depends on load type: low-current circuits (indicators, small solenoids under 500mA) will see longer contact life than full 1A loads. In high-activation environments (loading docks, high-turnover facilities), plan for contact inspection at 12-month intervals and replacement of relay cartridges every 3–5 years depending on activation frequency and load current. The hardwired architecture eliminates network protocol dependencies but requires dedicated wiring runs—budget accordingly if retrofitting into existing access control systems without spare wire.

The Camden CM-702U is the right choice for integrators specifying physical pull-to-activate emergency egress or manual door release logic in 30VDC networked access control deployments. Its dual N/C output architecture and vandal-resistant build address emergency exit compliance and high-traffic public spaces. For facilities planning to upgrade to fully networked credential readers, the CM-702U serves as a robust interim solution or permanent backup release mechanism. Explore the full Camden catalog for coordinated access control hardware and pull station variants.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've spec'd the CM-702U into education campuses, courthouse egress points, and loading dock operations where manual pull-to-release is mandatory or preferred over credential readers. The dual N/C output design is the real operational advantage—on a courthouse emergency stairwell, we wire one output to the magnetic lock release and the second to a 24VDC buzzer module wired to the access panel's alarm card. When a staff member pulls the station, the lock de-energizes immediately AND the panel logs an alarm event with timestamp, creating both physical release and digital accountability. The relay contact rating (1A @ 30VDC) is a hard constraint—we've encountered field installations where integrators attempted to drive a 2A solenoid strike directly from the pull station, resulting in contact degradation and intermittent release failures within 6–8 months. Always use a relay module or driver if your load exceeds 1A. The manual reset mechanism is intentional; it prevents phantom re-triggering but adds a procedural step that some end-users find cumbersome on high-activation doors. In those cases, we recommend considering a version with integrated local feedback or pairing the CM-702U with a networked access controller that can silence audible alarms after the first activation cycle.

Technical Highlights:

• Dual Independent N/C Outputs: Two separate relay closures rated 1A @ 30VDC allow independent circuit wiring without a secondary relay module. We've used this to drive both a magnetic lock release and a sounder from a single pull, eliminating integration complexity and reducing BOM.
• 30VDC Direct Integration: No power conversion needed on 30VDC access control systems. Hardwired terminal connections (no connectors to fail or require field inventory) integrate seamlessly into legacy door controllers and modern networked panels with dry-contact input cards.
• Contact Lifecycle in High-Activation Environments: In loading docks or emergency stairwells with 10–20 daily pulls, contact wear becomes measurable by month 18–24. Plan for relay cartridge replacement every 3–5 years; the modular relay design makes swaps straightforward without replacing the entire housing.
• Vandal-Resistant Extruded Aluminum: This is not cosmetic—we've installed thousands of blue pull stations in rough-use facilities (correctional, education, hospitals) and the aluminum body withstands sustained pulling pressure and environmental salt spray that would destroy powder-coated steel.
• Manual Reset as Operational Safeguard: The screwdriver-reset design prevents accidental re-activation but requires procedural acknowledgment. On high-traffic egress points, integrate the pull station with access control software that logs pull events; this creates a digital record independent of physical reset status.

Deployment Considerations:

• Confirm your door release or sounder load is under 1A @ 30VDC before wiring. Oversized loads cause contact degradation and intermittent failure—never attempt to drive a 2A solenoid or high-power buzzer directly from the pull station without a relay driver.
• Manual reset is required after each pull activation. On frequently-used emergency exits, educate end-users that the reset step is intentional and document the reset procedure in facility access control SOP documentation.
• Not UL-listed for fire alarm systems—do not integrate into life safety fire notification circuits or use as a manual fire alarm activation device. Consult local fire code and AHJ for pull station role in emergency egress scenarios.
• Terminal-block wiring eliminates connector dependency but requires conduit and field termination. If retrofitting into existing access control systems, budget for new wire runs if spare pairs are unavailable in existing conduit.
• On dual-output wiring, physically separate the two relay circuits if one drives a high-current sounder and the other drives a low-current indicator. Use separate conduit runs to avoid induced noise on signal circuits.
• The optional clear lift cover ('PC' suffix) provides tamper visibility and is recommended for locations where pull station actuation must be visually evident to security personnel or system administrators.

The CM-702U is ideal for integrators designing emergency egress logic, manual door releases, or dual-output control into 30VDC networked access systems. Its hardwired relay architecture and vandal-resistant build suit high-traffic public facilities, education campuses, and rough-use environments where credential readers are secondary or impractical. Pair it with a networked panel that logs relay closure events, and you have both fail-safe physical release and digital accountability. Explore the Camden catalog for complete access control hardware solutions.
