Camden CM-701U HID Credential Reader

Camden CM-701U HID Credential Reader Pull Station

The Camden CM-701U is a single-gang manual pull station designed for emergency door release and access control override in commercial facilities. It provides one normally closed (N/C) switch rated at 1A @ 30VDC, housed in extruded aluminum with a 3/4-inch wall protrusion. This station serves as the tactile, vandal-resistant manual override for electromagnetic locks, solenoid strikes, and door release mechanisms—essential in facilities where credential-reader-only logic cannot satisfy life-safety or operational requirements. The heavy-duty construction and straightforward dry-contact interface make it the foundational choice for integrated access control systems requiring both electronic authentication and manual emergency egress.

Key Features

• 1A @ 30VDC N/C Contact: Single normally closed switch rated at 1 amp, 30 volts DC. Works with any access control panel that accepts dry-contact closure signals for door release logic.
• Single-Gang Wall Mount: Standard electrical box footprint; 3/4-inch wall protrusion. Integrates seamlessly into new or retrofit installations without requiring oversized cutouts or structural modification.
• Magnetic Lock & Solenoid Compatible: Works directly with electromagnetic locks, strike plates, and solenoid door release mechanisms. Verify your strike or lock accepts 30VDC control signal before installation.
• Extruded Aluminum Housing: Heavy-duty construction resists tampering and impact damage in high-traffic corridors, lobbies, and emergency egress routes.
• Manual Reset: Mechanical reset with screwdriver access—no electronic latching or complex reset sequences. Operationally transparent: press and release.

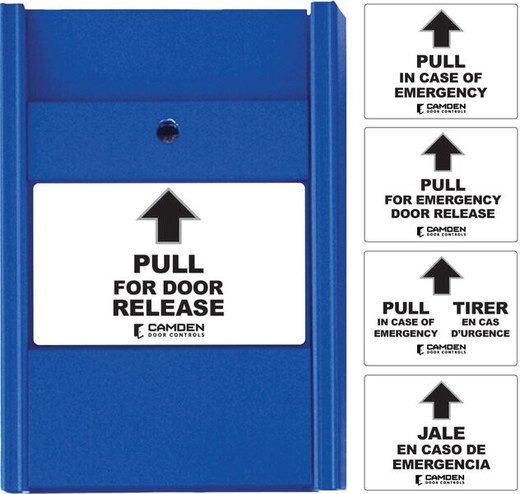

• Included Labels: Supplied with English, French/English bilingual, and standard 'Pull for Door Release' labels. Meets signage expectations for North American facilities.
• 3-Year Warranty: Manufacturer warranty covers defects in materials and workmanship. Service and replacement available through channel distributors.
• No Electronic Credential Validation: This is a manual override station—it does not read HID badges or process credential logic. Pair it with a separate credential reader for multi-factor access control.

The CM-701U integrates with any access control panel that can source or accept a 30VDC N/C dry contact closure. Wiring is straightforward: connect the N/C contact pair to your panel's door release input terminal, observing polarity. The station itself does not process credentials; it functions as a hard-wired emergency release or manual override. If your access control logic requires both credential reading and manual pull capability on the same door, install the CM-701U alongside a separate HID credential reader on the same entrance, each controlling the same strike or lock via parallel relay logic in the panel.

Deployment context matters: the CM-701U is mandatory in high-security facilities where emergency egress must remain functional during power loss (pair with a fail-safe electromagnetic lock), and in multi-tenant or public-access buildings where life-safety code requires manual override independent of electronic systems. It's also the standard choice for server rooms, secure storage areas, and restricted zones where authorized personnel need a physical panic-button alternative to badge-only access. The heavy aluminum enclosure resists casual tampering; the reset mechanism requires intentional mechanical action (no accidental triggers from bumping or leaning). Total cost of ownership is minimal: no batteries, no network dependency, no software licensing—just a simple, reliable switch.

Verify compatibility before ordering: confirm your access control panel accepts 30VDC N/C logic on the door-release input channel. If your panel supplies 12VDC or requires N/O (normally open) logic, the CM-701U will not integrate directly. The Camden CM-700 series offers variants (CM-702U for dual N/C, CM-703U for mixed N/C + N/O); consult your system requirements. Not rated for fire alarm or emergency notification system integration—do not wire into bells, strobes, or notification circuits. This is a door-release device only.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've specified the CM-701U on hundreds of access control projects, and its simplicity is exactly the point. This is not a smart device—there's no network processor, no credential decoding, no firmware updates. It's a 30VDC dry-contact switch in a rugged aluminum package, and that constraint is its strength. On emergency-egress doors, server-room access, and high-security checkpoint entrances, the CM-701U becomes the manual override when credential readers fail, network outages occur, or someone needs to release a door without authentication. We've seen integrators pair it with a separate HID reader on the same frame—reader handles badge logic, pull station handles mechanical override—and the architecture never fails because there's nothing to fail. One caveat: this is not a credential reader itself. The product name includes 'HID Credential Reader' for catalog classification, but the unit itself is a manual switch. Credential reading happens at a separate reader mounted nearby. That distinction matters on the BOM and the wiring diagram.

Technical Highlights:

• 1A @ 30VDC N/C Contact: Rated for direct control of solenoid strikes and electromagnetic locks operating at 30V. The 1-amp limit is sufficient for standard mag-lock release logic but insufficient for high-current switching; if your strike draws >1.5A, interpose a relay to isolate the station.
• Mechanical Reset, No Latch: Press the blue button, door releases, spring return. No electronic state or unlatching sequence. Operationally transparent and immune to control-panel firmware quirks.
• Single-Gang Footprint: Standard electrical box depth and width. On retrofit installations, eliminates the need for structural modification or oversized plates. Fit tight in congested entrance frames.
• Heavy Aluminum, 3/4-inch Protrusion: The depth is intentional—a recessed button is easier to defeat or deactivate in a conflict. The 3/4-inch stand-off places the blue button at natural reach height and provides a psychological 'press here' cue.
• No Batteries, No Network: Wired 30VDC dry-contact closure. Total operational dependency on the access control panel's ability to sink or source 30V. If the panel loses power, the station is inert—design your exit control to use fail-safe electromagnetic locks (mag locks powered by UPS or battery backup).

Deployment Considerations:

• Confirm your access control panel supplies 30VDC and can accept an N/C contact closure on the door-release input. Panels that supply 12VDC or require N/O logic will not drive this station directly. Test the polarity and amperage before live installation.
• On fail-safe electromagnetic locks (typical for emergency egress), the lock is powered by a separate circuit, and the CM-701U contact shorts the lock coil or triggers a relay. During power loss, the lock de-energizes and the door swings open automatically—the pull station is only useful when power is present. Confirm your lock control strategy aligns with life-safety code in your jurisdiction.
• 3/4-inch wall protrusion: measure clearance in tight wall cavities, doorframes with molding, or areas with overhead pipes. Flush-mount alternatives (CM-700 series variants) exist if space is constrained.
• Install in a standard single-gang electrical box using the included mounting template. No special tools required beyond a screwdriver and wire strippers. Secure the N/C contact pair to your panel's door-release terminal, observing polarity markings.
• Heavy-duty aluminum and mechanical simplicity mean essentially zero maintenance. The button and spring may wear after 10,000+ cycles; replacement modules are available from the distributor. For high-traffic emergency exits, plan for eventual switch replacement in the 5-7 year range.

The CM-701U is the right choice for integrators building access control systems that require manual override independent of network or credential infrastructure. It's not a reader—it's a panic button for door release. If you need to authenticate a user and release a door in one motion, pair this with a separate HID credential reader on the same entrance. Explore the Camden catalog for the full CM-700 series and complimentary readers and strikes.
