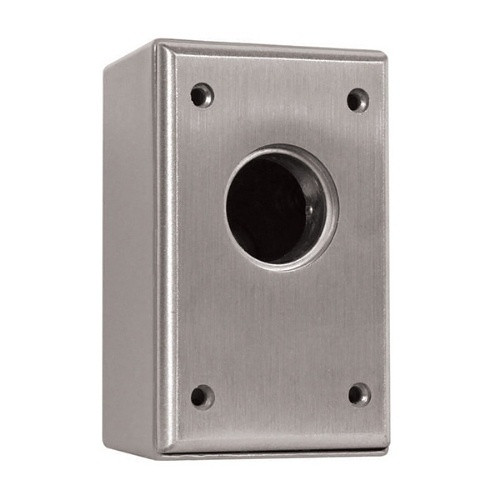

Camden Surface Mount Key Switch SPDT N/O \& N/C - CM-1020

We've deployed the Camden CM-1020 in dozens of retrofit and new-build access control projects, and its appeal is straightforward: it's a no-nonsense, analog key switch that doesn't rely on batteries, networking, or credential parsing. In high-security environments where a physical key override is mandated by facility policy or code — think data centers requiring manual supervisor unlock, psychiatric facilities with panic-button override stations, or loading docks where the access control network may be down — the CM-1020 sits at the intersection of simplicity and control. The SPDT contact pair is the real differentiator. Most key switches are either N/O or N/C; the CM-1020 gives you both from a single cylinder, which means you can wire the N/O contact directly to the strike or relay, and feed the N/C contact back to your control panel or supervisory circuit for audit logging. That dual-feedback loop is expensive to achieve with two separate switches and adds mounting real estate; with the CM-1020, it's baked in.

Technical Highlights:

• SPDT Contacts (N/O & N/C): Single key action energizes N/O for strike activation and de-energizes N/C for supervisory relay logic. One cylinder, two signal states — eliminates the cost and bulk of dual-switch installations and supports complex bypass circuits without additional pilot relays.
• 30VDC at Negligible Draw: Contact switching is passive (no solenoid, no heating element). Current draw depends entirely on your downstream relay or strike coil. The switch itself draws less than 50mA in any state, making it safe for low-voltage integration on standard access control 4A supplies.
• Mortise Cylinder Interchangeability: Standard 1", 1 1/8", or 1 1/4" mortise cylinders work without modification. You can change locks on-site without replacing the entire switch housing — critical for facilities that rotate master keys or upgrade to high-security cylinders (Medeco, ASSA ABLOY) over the product lifetime.
• Die-Cast Aluminum, Anti-Rotation Locators: Heavy 1/4" aluminum construction resists prying and impact. Locators (mechanical stops) prevent cylinder rotation inside the housing, eliminating the operational headache of a loose or spinning key cylinder that interrupts switch contact. No set screws means no periodic tightening maintenance.
• Sealed Gasket + Field-Soldered Leads: Weather-resistant rubber gasket keeps moisture out of the electrical junction. Soldered leads (not screw terminals) eliminate vibration creep and cold-joint failure, common failure modes in older key switches subjected to door vibration or thermal cycling.

Deployment Considerations:

• The CM-1020 is a momentary-contact device — holding the key down doesn't lock in the strike energization. If your application requires sustained strike unlock (e.g., a timed door-hold relay), you must wire through an external 30VDC relay or timer module. Failure to do so means the door striker de-energizes the instant the key is released, potentially creating an access denial if there's no fallback latch.
• Mortise cylinders are mechanical — they wear. Over 5-10 years of heavy use (e.g., a loading dock accessed 20+ times per day), the cylinder may become stiff or intermittently fail to turn. Stock spare 1 1/8" cylinders and plan for periodic replacement. The swap is a 5-minute field job (undo fasteners, slide out old cylinder, slide in new one, no rewiring required).
• Surface-mount geometry means the switch sits proud of the wall. In high-traffic or public-access zones, the protruding cylinder is visible and potentially tempting to shoulder-check or deliberately strike. Mount in a sheltered alcove or behind a retractable access panel whenever possible to reduce accidental damage and tampering risk.
• Test wiring polarity before final installation. The color-coded leads follow standard convention, but field terminations vary. Always verify N/O and N/C continuity with a multimeter, and confirm strike energization during key insertion before securing the housing. A miswired N/C contact fed to a relay can invert logic and cause the door to lock instead of unlock.
• The 30VDC supply must be a regulated, fused access control PSU — not an automotive 30V battery or unregulated wall supply. Voltage spikes from relay coil collapse can damage the switch contacts. Use a UL-listed 30VDC supply with at least 4A capacity and a 2A fuse upstream of the switch.

The CM-1020 is the right choice for integrators and facility managers who need keyed manual override without digital complexity, battery dependency, or network latency. It's the simplest and most reliable way to give authorized personnel a physical backup to card readers, biometric scanners, and networked access control in scenarios where policy or code mandates it. For a deeper catalog of Camden access control hardware and key switch alternatives, explore the Camden catalog.
