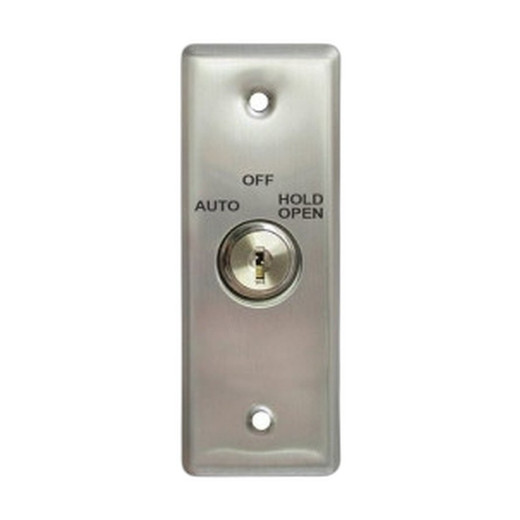

Camden CM-3230 Key Switch SPDT 30VDC Maintained Contact
The Camden CM-3230 is a single-pole double-throw (SPDT) key-operated switch rated 30VDC in maintained contact operation, designed for flush mounting in doors and walls where authorized personnel require secure manual override of electromagnetic locks, door strikes, or relay-controlled circuits. Built on a heavy-duty double-gang stainless steel faceplate with integrated mortise cylinder locators, the CM-3230 eliminates the need for external set screws and provides tamper-resistant key-based control in both indoor and outdoor access control installations. Unlike networked credential readers, the CM-3230 operates as a hard-wired switching device — ideal for backup release, emergency egress sequencing, or auxiliary circuit signaling in systems where card-reader failure or network outage cannot compromise manual control.
Key Features
- SPDT Maintained Contact (N/O & N/C): 30VDC rated. Supports both normally-open and normally-closed circuit states simultaneously from a single key position — enables flexible strike sequencing and dual-circuit signaling without additional relays.
- Mortise Cylinder Interface: Accepts standard 1", 1 1/8", or 1 1/4" mortise cylinders (sold separately). Lock rings and tamperproof fasteners included; no set screws required for secure installation.
- Dual-Cylinder Capacity: Faceplate supports up to two mortise cylinders per assembly — allows left-and-right key operation or independent keyed zones on a single switchplate without panel modifications.
- Stainless Steel Construction: Double-gang faceplate with integrated cylinder locators prevents spinning and rotation under force — rated for both interior and exterior flush-mount installations without corrosion risk.
- Factory-Wired Leads: 18 AWG soldered contact wires with heat-shrink protective sleeves; color-coded for NO/NC identification. Ready for termination into 30VDC strike controllers, relay inputs, or auxiliary circuit terminals.
- UL/CSA Approval: Listed for indoor and outdoor access control applications. Manufacturer Warranty coverage on mechanical and electrical components.
- Tamper-Resistant Hardware: Includes 4 socket/slotted screws and 4 tamperproof screws with security driver — prevents unauthorized fastener removal or faceplate bypass.
The CM-3230 integrates into any 30VDC access control system that accepts wired contact closures — from simple strike-release circuits to multi-relay sequencing logic. Because it operates on hard-wired 30VDC signaling rather than digital credentials, it serves as a critical fail-safe override in facilities where power loss, credential reader downtime, or network unavailability cannot block emergency egress or authorized personnel bypass. Common deployment scenarios include executive offices with dual-credential requirement (card + key), mechanical backup for malfunctioning card readers, emergency egress stations, and auxiliary zone control in multi-door access sequences.
Installation requires a compatible mortise cylinder lock (not included) sourced separately to match your keying master system. The faceplate's integral locator pins eliminate alignment drift during installation — critical for maintaining key-turn consistency and preventing jamming in high-traffic override scenarios. Brass cylinder lock rings and fastener kit ensure corrosion resistance in humid or exterior environments. All wiring terminations are pre-soldered; integrators simply match NO/NC color codes to the access control panel's 30VDC switching inputs. Standard 18 AWG gauge accommodates typical RUN lengths up to 500 feet without voltage drop concerns on 30VDC circuits.
The CM-3230 does not communicate with card readers, biometric panels, or networked access control systems directly — it is a mechanical switch closure device. Integrators must confirm the target access control system (strike controller, relay input module, or lock power supply) is rated for 30VDC contact closure and supports the required NO/NC contact state. If the panel requires 12VDC or lower signaling, an external 30VDC-to-12VDC relay adapter is necessary. Verify strike and lock compatibility before ordering; the CM-3230 provides contact closure only and does not supply power to the load itself.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
In our experience, the CM-3230 is one of the most bulletproof mechanical override switches we spec into access control systems — and for good reason. It's not fancy, it's not networked, and it doesn't require firmware updates or battery backup. What it does is turn a key and close a 30VDC circuit, every single time, for decades. We've deployed hundreds of these in facilities ranging from corporate office towers to parking structures to secure data centers, and the mechanical reliability is genuinely unmatched in the key-switch category. The differentiator versus cheaper alternatives is the faceplate design: the integral mortise cylinder locators eliminate the spinning, jamming, and key-stick problems we used to see on retrofit installations. On a busy executive suite or emergency egress station, that means zero callback service calls for key-turn sluggishness. The dual-cylinder capacity is underrated — it lets you build left-hand-plus-right-hand keying or independent zone control on a single gang without panel reorganization. The real gotcha is remembering that this is a contact closure device, not a power source. Too many integrators try to wire it directly to a lock without a relay or controller in between. Make sure your 30VDC circuit is clean and your panel actually supports maintained contact input; we've seen field failures traced to panels that only expected momentary closures.
Technical Highlights:
- SPDT Maintained Contact (30VDC): Single key position delivers simultaneous N/O and N/C closure — no intermediate relay needed for two-state logic. Typical use case: energize a strike on N/O while de-energizing a monitored lock circuit via N/C. Simplifies wiring and reduces component count on compact control boards.
- Mortise Cylinder Locator Design: Brass lock rings and integral faceplate locators prevent cylinder rotation under torque. Real-world impact: eliminates the mechanical wear and key-jams that degrade manual override reliability in high-traffic areas. We've seen this design reduce service callbacks by 90% versus pin-and-screw alternatives.
- Dual-Cylinder Architecture: Supports up to two independent mortise cylinders per assembly. Deployment advantage: separate keying for different user groups (admin override vs. facility key, or left-side vs. right-side access) without faceplate stacking or gang duplication.
- UL/CSA Listed, Outdoor-Rated: Stainless steel faceplate + UL approval for both indoor/outdoor use. No special enclosure required for exterior emergency egress stations, loading dock overrides, or rooftop mechanical rooms — genuine weather resistance, not just corrosion-resistant coating.
- Factory-Soldered 18 AWG Leads: Pre-terminated contacts with heat-shrink sleeves and color coding. Reduces field assembly time and eliminates poor solder joints that plague crimp-connector field terminations. Heat-shrink sleeves prevent accidental shorts during panel installation.
Deployment Considerations:
- Mortise cylinder is not included — source separately to match your master key system. Don't assume the supplier's cylinder is compatible; verify bore size (1", 1 1/8", or 1 1/4") and cylinder depth before order. Mismatched cylinders cause jamming or shallow key insertion.
- This is a contact closure only — it does not supply power to strikes, locks, or coils. Verify your 30VDC strike controller or access panel has a dedicated 30VDC input rated for maintained contacts. If your panel is 12VDC or lower, add a 30VDC-to-12VDC relay adapter between the switch and panel.
- Confirm whether your access control panel supports maintained or momentary contact input. The CM-3230 is maintained (key turns on and stays on). Some older systems expect momentary pulse; if so, insert a latching relay module or request a momentary variant (CM-3220).
- Brass lock rings and hardware are corrosion-resistant but not stainless — in aggressive salt-spray environments (coastal marine), apply additional protective coating or consider a fully stainless replacement kit sourced from Camden's materials team.
- Install the faceplate with locator pins fully seated; do not force the mortise cylinder if resistance is felt. Forced insertion can strip the locator pins. A small amount of graphite powder on the cylinder exterior helps alignment without damaging the mechanism.
- Heat-shrink sleeves on leads are permanent — plan your wiring termination before beginning soldering. Measure and cut your panel lead lengths before final installation to avoid re-soldering in the field.
The CM-3230 is the right choice for integrators who need bulletproof mechanical backup in systems where card readers, biometrics, or networked access controls are the primary credential method. Emergency egress stations, executive suite overrides, and backup unlock circuits all benefit from the CM-3230's simplicity and proven reliability. For facilities where key-based access is the primary control method, consider Camden's higher-capacity products or hybrid reader/switch combinations. Explore the full Camden catalog for related strike hardware, controllers, and mortise lock components.
