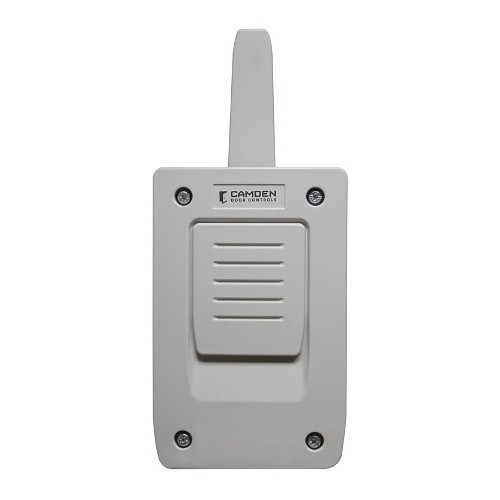

Camden CV-WRX4 Four Channel Wiegand Receiver

We've deployed the CV-WRX4 across campus environments, parking facilities, and multi-tenant buildings where reader count exceeds available door controller I/O or where wireless transmitter consolidation is required. The strength of this receiver lies in its simplicity and voltage flexibility — 9–21VDC operation means you can power it from the same 24VDC supply as your door strike or proximity reader, or from a dedicated UPS backup branch on critical entry points. The four independent channels eliminate the need for separate per-reader controller infrastructure in sprawling deployments. Where we've seen the most value is in retrofits: legacy systems with hardwired Wiegand readers (installed 15+ years ago) that need wireless transmitter support without panel replacement. Drop in the CV-WRX4, pair it with CV-WTX2 transmitters on mobile or temporary access points, and your facility code management stays intact. The DIP switch facility code selector is a genuine time-saver during commissioning — no field programming, no software login required, just binary switch positions and you're assigned to the correct credential zone.

Technical Highlights:

• Dual Protocol Support (Wiegand 26/37): Wiegand 26 is the industry standard (8-bit facility + 16-bit card ID); Wiegand 37 adds parity and extended credential bits. We've never encountered a scenario where mixed-protocol support on a single receiver was essential, but the DIP switch flexibility allows you to stage firmware-free migration between systems without swapping hardware — a real advantage in large multi-site operations where standardization timelines are long.
• Four-Channel Architecture: Unlike daisy-chain or multiplexed readers, each channel outputs independent D0/D1 pairs. This means you can wire all four readers to a single four-input door controller without signal collision, or fan out to four separate panels if your topology demands it. On a typical office building (lobby, service entrance, loading dock, secure zone), you get four reader locations converged into one wall-mount receiver — less clutter in control rooms, fewer intermediate relay enclosures.
• Low Current Envelope: 14mA idle, 36mA under load. If you're running multiple receivers on a central 24VDC UPS supply, the cumulative draw is negligible — critical on sites where backup power budget is tight. We've seen integrators power six of these receivers from a single commercial-grade 24VDC 5A supply without thermal stress.
• Facility Code Granularity: Binary DIP selection of facility codes 1–255 is the operational advantage here. In multi-site deployments (10+ locations), each receiver can be assigned a unique facility ID that maps to a specific geographic zone in your access control database. Card holder credentials are linked to facility+ID combinations, not just raw card numbers. Eliminates the risk of card collisions across locations and simplifies audit trails.
• IP54/IP65 Flexibility: The baseline IP54 rating suffices for climate-controlled spaces; the supplied cable plug upgrades to IP65 for outdoor or wash-down environments. We've used the IP65 variant in parking garage installs where humidity and tire-spray are constant. No field modification needed—just plug the cable cover and you're sealed.

Deployment Considerations:

• Wiegand is a legacy protocol (invented 1974, peak deployment 1990s–2010s). Modern access control platforms increasingly use IP-native readers and software-defined credential handling. Verify your target panel/software accepts Wiegand input before specifying the CV-WRX4 — many newer systems do not. Check the control panel datasheet for D0/D1 terminal configuration and voltage tolerance (most are 5VDC–24VDC logic-compatible, but exceptions exist).
• Four-channel capacity is absolute; you cannot cascade or expand channel count with additional receivers on the same facility code. If your site has more than four readers to consolidate, you'll need multiple CV-WRX4 units on distinct facility codes or consider a protocol gateway (IP readers → software platform) instead.
• Facility code assignment via DIP switch is permanent per receiver and requires physical access to change. In high-churn facilities (frequent reader relocation, facility consolidation), plan your facility code allocation carefully at install time to avoid costly re-commissioning.
• Cable routing through the grommet and antenna positioning are critical for wireless transmitter variants (CV-WTX2). If you're deploying pure hardwired readers, antenna placement is irrelevant, but document your configuration at handover to avoid confusion during future maintenance.
• Power supply regulation: Wiegand receivers are relatively forgiving of voltage ripple, but use a regulated 24VDC supply (not a raw wall-power rectifier). If the receiver is powered by the same supply as solenoid locks or strike plates, ensure adequate capacity and filtering — inductive kickback from door hardware can introduce noise on the power rail.

The CV-WRX4 is the right choice for integrators managing legacy Wiegand reader ecosystems or facilitating wireless transmitter consolidation without panel replacement. For new deployments, evaluate whether your control platform supports IP-native readers (ONVIF, RESTful APIs) or Wiegand — the long-term trajectory in the industry is away from Wiegand, but retrofit and brownfield projects rely on it heavily. If you're maintaining a mature system or building out a multi-reader campus on a budget, this receiver delivers genuine operational leverage. Learn more about our Camden access control product line.
