Bosch Bullet 2MP 3.3-10.2mm IP66 IK10 IR GOV - NBE-3702-AL-GOV

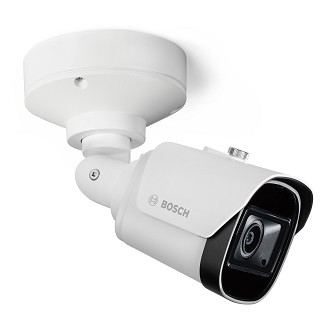

Bosch NBE-3702-AL-GOV 2MP Varifocal Bullet Camera with IR, IP66/IK10, GOV

Overview

The Bosch NBE-3702-AL-GOV is a 2MP (1080p) outdoor bullet camera built for government and public-sector deployments where physical toughness, cybersecurity posture, and VMS interoperability are non-negotiable. With a motorized 3.3–10.2mm varifocal lens, 30m IR illumination, IP66 weather sealing, and IK10 vandal resistance, it covers a wide range of exterior installation scenarios — perimeter fencing, building entrances, parking structures, and corridor approaches — without requiring a separate housing. The NBE-3702-AL-GOV (often searched as NBE 3702 AL GOV) ships with ONVIF Profile S, G, M, and T conformance out of the box, making it straightforward to integrate into virtually any major VMS platform already deployed across government facilities.

The GOV designation signals that this unit is sourced and positioned for government procurement channels, supporting TAA-aligned acquisition workflows. If your agency already runs Bosch Security cameras across your campus or facility, this model integrates cleanly into that ecosystem.

Key Features

• 1/2.8-inch CMOS at 1080p / 30fps: Full HD resolution at a full 30 frames per second means you get fluid motion capture for walking subjects and vehicles. The 1/2.8-inch sensor delivers adequate sensitivity for most lit exterior environments without the cost premium of a larger sensor format.
• 3.3–10.2mm Varifocal Lens (106° – 31° HFOV): The motorized varifocal range lets the installer dial in the exact field of view on the day of commissioning — no lens swap required. At 106° wide end you can cover a broad entrance zone; pull it to 31° to isolate a gate or chokepoint at distance. This is the spec that saves a return trip when the site survey wasn't perfectly predictive.
• 30m IR Illumination at F1.6 Aperture: The f/1.6 maximum aperture works with the onboard IR to deliver usable footage in complete darkness out to roughly 30 meters. For parking lots, loading docks, or perimeter paths that go unlit after hours, this eliminates the need for supplemental lighting infrastructure on lower-priority camera positions.
• IP66 + IK10 Rated Enclosure: IP66 means the camera tolerates direct rain and dust ingestion without sealing failure — suitable for most North American exterior climates. IK10 is the highest standard impact rating, meaning the enclosure resists a 20-joule mechanical strike. For installations in publicly accessible areas where casual or deliberate physical contact is likely, IK10 is worth specifying; lower-rated cameras in the same location would require a separate steel housing to reach equivalent protection.
• H.265/HEVC Compression: H.265 typically cuts storage consumption 40–60% versus H.264 at equivalent visual quality. On a government NVR recording dozens of cameras around the clock, that reduction directly translates to fewer drive replacements or longer retention windows within the same storage budget. M-JPEG is available for legacy VMS integrations that require it.
• PoE IEEE 802.3af / 802.3at Class 3 (2.6W – 6.74W): The camera draws between 2.6W at idle and 6.74W at full load — well within standard 802.3af limits (max 15.4W). This means a Class 3 port on any managed PoE switch handles it without requiring PoE+ provisioning. That keeps switch hardware costs down on large deployments and simplifies power budget planning.
• Onboard microSD / microSDXC Storage: Local edge storage via microSD or microSDXC provides recording continuity if the network or NVR goes offline — a real operational benefit for perimeter cameras in facilities with intermittent WAN links. Check VMS and camera firmware for supported card capacities before procurement.
• TPM, RSA 4096-bit, AES/CBC 256-bit, TLS 1.2: The hardware TPM and strong encryption suite address the cybersecurity baseline requirements increasingly mandated across federal and state government camera deployments. RSA 4096-bit key exchange and AES-256 stream encryption mean intercepted network traffic stays unreadable. TLS 1.2 secures management plane communications. These aren't marketing checkboxes — they're features procurement reviewers on government contracts will specifically verify.
• ONVIF Profile S, G, M, T: Conformance across all four active ONVIF profiles covers live streaming (S), edge storage access (G), metadata and analytics (M), and media streaming with advanced capabilities (T). In practice this means the NBE-3702-AL-GOV will integrate with Milestone, Genetec, Avigilon, Hanwha Wisenet WAVE, and most other IP camera-compatible VMS platforms without custom driver work.

Integration & Compatibility

The NBE-3702-AL-GOV integrates with any ONVIF-conformant VMS via Profile S/G/M/T. The broad ONVIF profile coverage is particularly useful in multi-vendor government environments where camera brands are mixed across zones. For deployments running a Bosch-native VMS or BVMS (Bosch Video Management System), this camera supports deeper native integration beyond standard ONVIF.

Power delivery is straightforward: any PoE switch with 802.3af Class 3 ports supports this camera. At 6.74W maximum draw, even budget-tier 802.3af switches handle it without power budget concerns. If your deployment includes PTZ cameras or cameras with heaters drawing PoE+, the NBE-3702-AL-GOV's modest draw helps balance port allocation across the switch.

For storage planning, onboard microSD/microSDXC provides a local backup layer. Pair this with a network video recorder sized to your retention requirements — H.265 compression on 1080p/30fps typically runs 300–500GB per camera per month depending on scene motion, which is worth factoring into NVR capacity sizing when building out a multi-camera government facility. See the camera selection guide for coverage and resolution planning across building types.

Frequently Asked Questions

Q: What is the maximum IR range on the NBE-3702-AL-GOV?

A: The NBE-3702-AL-GOV has onboard IR illumination rated to 30 meters. This is sufficient for most exterior perimeter and entrance applications in complete darkness, particularly at the narrower end of the varifocal range where light is concentrated on a smaller field of view.

Q: Does the NBE-3702-AL-GOV support edge storage?

A: Yes. The camera includes a microSDHC and microSDXC card slot for local edge recording. This provides recording continuity during network or NVR outages. Verify supported card capacities with the current firmware release before selecting a card.

Q: What compression formats does the NBE-3702-AL-GOV support?

A: The camera supports H.265/HEVC, H.264, and M-JPEG. H.265 is the recommended choice for most deployments due to its storage efficiency — typically 40–60% lower bitrate than H.264 at equivalent quality. M-JPEG is available for legacy VMS integrations that require it.

Q: What PoE standard does the NBE-3702-AL-GOV require?

A: The camera operates on IEEE 802.3af or 802.3at (PoE or PoE+). Its maximum power consumption is 6.74W, which is within standard 802.3af Class 3 limits. PoE+ is not required, making it compatible with standard-class PoE switch ports.

Q: Which ONVIF profiles does the NBE-3702-AL-GOV conform to?

A: The NBE-3702-AL-GOV is ONVIF conformant to Profile S, G, M, and T. This covers live video streaming, edge storage retrieval, analytics metadata, and advanced media streaming — enabling integration with virtually all major VMS platforms without custom drivers.

Q: What cybersecurity features are built into the NBE-3702-AL-GOV?

A: The camera includes a hardware TPM (Trusted Platform Module), RSA 4096-bit key management, AES/CBC 256-bit encryption, and TLS 1.2 for secure communications. These features address common cybersecurity requirements for government and enterprise network camera deployments.

Jerry Tildsen

The NBE-3702-AL-GOV's combination of hardware TPM and RSA 4096-bit encryption is what stands out to me on this unit. In government procurement cycles I've seen an increasing number of RFPs specifically call out hardware-rooted trust and AES-256 — this camera checks those boxes at the hardware level, not just in software configuration. At 6.74W max draw it also gives you flexibility on switch port allocation in multi-camera government builds where PoE budgets are tight.

Technical Highlights:

• Varifocal 3.3–10.2mm (106°–31° HFOV): The full 3× zoom range means one SKU covers entrance wide-angle and moderate-distance chokepoint monitoring — reduces the number of lens variants you need to stock across a multi-building campus deployment.
• IK10 Impact Rating: At 20 joules of rated mechanical resistance, this is the highest standard IK classification. On publicly accessible exterior walls or parking structures, IK10 eliminates the need for an additional steel cage or protective housing that would otherwise add cost and installation time.
• H.265 + 1080p/30fps: Running H.265 on a 1080p stream keeps per-camera storage consumption manageable — expect roughly 300–500GB/camera/month depending on scene activity. On a 64-camera government NVR, that difference between H.264 and H.265 can represent tens of terabytes in required storage capacity.

Deployment Considerations:

• ONVIF Profile G (edge storage access) requires the microSD card to be installed and formatted correctly before the VMS can retrieve recordings — confirm card installation is part of your commissioning checklist, especially on deployments where field technicians aren't the same team as the VMS integrators.
• The weight listed in available data (1.385g) appears to be a data error in the source — the physical unit is a full-sized outdoor bullet camera and should be treated as substantially heavier for mount load calculations. Verify actual shipping weight before specifying mounting hardware on overhead or cantilever installations.

This camera is well-suited for state and local government exterior deployments — specifically building perimeters, parking structures, and campus entrance points — where the combination of IK10 vandal resistance, hardware cybersecurity (TPM/AES-256), and broad ONVIF conformance need to satisfy both physical security and IT security review in the same procurement cycle.
