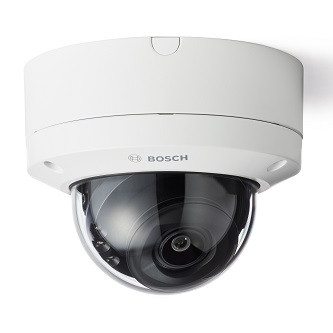

Bosch F.01U.419.306 - Fixed dome 5MP 3.3-10.2mm IP66 IK10 IR - NDE-3703-AL-GOV

Bosch NDE-3703-AL-GOV Fixed Dome 5MP Varifocal IR Camera

Overview

The Bosch NDE-3703-AL-GOV is a 5-megapixel fixed dome camera purpose-built for government and enterprise deployments where NDAA Section 889 and TAA compliance are non-negotiable procurement requirements. It pairs a 3.3–10.2mm varifocal lens with a 120dB wide dynamic range sensor, IR illumination to 30m, and a vandal-rated IK10 housing that survives -30°C winters and 55°C industrial environments. If your project requires a NDAA-compliant outdoor dome that won't compromise on image quality or physical durability, the NDE-3703-AL-GOV belongs on the shortlist.

For a broader look at the full Bosch security camera lineup, or to compare within the fixed dome IP camera category, the context below maps every specification to a real deployment decision.

Key Features

• 5MP Resolution with 30fps: At 5 megapixels you get roughly 2.5× the pixel density of a standard 1080p camera. That matters at entry points and parking lots where facial or license-plate detail at distance determines whether footage is evidential or useless. Full 30fps keeps motion sharp — no smearing on fast-moving subjects.
• 3.3–10.2mm Varifocal Lens (101.4° down to 30.1° horizontal FoV): The 3:1 zoom ratio lets one SKU cover both wide-area lobby coverage and tighter corridor or perimeter framing. Aperture ranges F1.6 to F3.29, so at the wide end you're pulling in significantly more light — useful in low-ambient conditions where IR alone isn't enough. You set the field of view during installation and lock it; no motorized adjustment means one fewer failure point in the field.
• 120dB Wide Dynamic Range: At 120dB this sensor handles scenes that would blow out a standard WDR camera — think sun-facing entry doors with a dark interior, or a loading dock with direct headlight exposure. Detail is preserved in both the bright and shadow zones simultaneously, reducing the number of cameras needed to cover transitional lighting environments.
• IR Illumination to 30m (98ft): Integrated IR covers subjects at 30 meters in complete darkness. Combined with the varifocal lens, you can align the illumination cone with the actual field of view rather than over-lighting a narrow scene with a wide IR spread. This is a practical advantage in covered parking structures and stairwells.
• H.265 / H.264 / M-JPEG Compression: H.265 cuts storage and bandwidth roughly in half versus H.264 at equivalent quality — meaningful when you're recording 5MP streams 24/7 across dozens of cameras. M-JPEG fallback is available for VMS integrations that don't yet support H.265 natively. Variable frame rate from 1–30fps gives additional storage tuning headroom on low-activity scenes.
• IP66 and IK10 Ratings: IP66 means no ingress from direct water jets — this dome installs outdoors without a separate housing or rain cover. IK10 is the highest vandal-resistance rating, withstanding 20-joule impacts. For retail exteriors, transit environments, or any public-facing installation where camera tampering is a real threat, IK10 eliminates a common failure mode.
• PoE 802.3af/802.3at, 4.5–7.6W: Drawing under 8W maximum, this camera runs comfortably on standard 802.3af ports (15.4W budget) — it won't tax your PoE switch power budget even on a fully loaded 24-port switch. No separate power supply or wiring run required.
• NDAA Section 889 and TAA Compliant: Government and federal contractors have hard procurement walls around non-NDAA hardware. This SKU is verified compliant, making it specifiable on GSA schedules and DoD projects without a compliance exception. TAA compliance extends eligibility to additional federal and state procurement vehicles.
• Up to 2TB Local SD Storage: A 2TB SD card slot provides substantial edge recording capacity — enough for multi-day local buffering even at 5MP/30fps, which is useful as a failsafe when network connectivity is intermittent or as a standalone recording solution in bandwidth-constrained sites.
• ONVIF Profile S, G, M, T: Profile S covers basic stream integration with any ONVIF-compliant VMS. Profile G adds on-camera recording and playback. Profile M covers metadata and analytics interoperability. Profile T includes H.265 and HTTPS. Together they make the NDE-3703-AL-GOV compatible with virtually every enterprise VMS platform — Milestone, Genetec, Avigilon, Hanwha Wisenet WAVE, and others — without custom drivers.
• TPM, HTTPS, and 802.1X Security: The Trusted Platform Module (TPM) anchors hardware-level credential storage — firmware and configuration cannot be spoofed without physical access. HTTPS encrypts the management interface. 802.1X network access control lets you place cameras on a segmented VLAN with port authentication, which is a standard hardening requirement on government and healthcare networks.
• Operating Range -30°C to 55°C: Rated to -30°C (-22°F) without a heater accessory, this dome handles northern US winters and high-altitude sites without cold-start failures. The 55°C upper limit covers rooftop and attic installations in hot climates.

Integration and Compatibility

ONVIF Profile S/G/M/T conformance ensures the NDE-3703-AL-GOV integrates with all major enterprise VMS platforms without proprietary plugins. The four profiles together cover streaming, edge recording access, analytics metadata, and H.265/HTTPS — a combination that supports both basic integrations and advanced analytics-driven workflows. For Bosch-native deployments, the camera integrates directly with Bosch Video Management System (BVMS) for unified management.

The 802.1X authentication support means this camera fits cleanly into network segmentation architectures common in federal, healthcare, and higher-education environments. Pair with a managed network switch that supports 802.1X port authentication to enforce access control at the network layer.

Local storage via SD card (up to 2TB) supports ONVIF Profile G edge recording, enabling VMS-coordinated local buffering or standalone deployment in bandwidth-limited sites. The SD slot also enables failover recording if the primary NVR or VMS loses connectivity.

Frequently Asked Questions

Q: Is the NDE-3703-AL-GOV NDAA Section 889 compliant?

A: Yes. The NDE-3703-AL-GOV carries verified NDAA and TAA compliance, making it specifiable on government procurement vehicles including GSA schedules and DoD projects without a compliance exception.

Q: What VMS platforms does the NDE-3703-AL-GOV support?

A: The camera conforms to ONVIF Profile S, G, M, and T — the four profiles that collectively cover streaming, edge recording access, analytics metadata, and H.265/HTTPS. This covers Milestone XProtect, Genetec Security Center, Avigilon Control Center, Hanwha Wisenet WAVE, and any other ONVIF-compliant VMS without custom drivers. Bosch BVMS is natively supported.

Q: Does the NDE-3703-AL-GOV require PoE+ or will a standard PoE port work?

A: The camera draws 4.5–7.6W, which falls well within the 15.4W budget of a standard 802.3af PoE port. PoE+ (802.3at) is supported but not required. Most mid-range managed switches will power this camera without any special configuration.

Q: What is the maximum IR range on the NDE-3703-AL-GOV?

A: The integrated IR illuminator reaches 30 meters (98 feet). Combined with the varifocal lens, the IR cone can be aligned with the actual scene coverage for efficient illumination without wasteful over-spread.

Q: Can the NDE-3703-AL-GOV record locally without a NVR?

A: Yes. The camera supports SD cards up to 2TB for local edge recording via ONVIF Profile G. This enables standalone recording or NVR failover buffering without additional hardware.

Q: What is the operating temperature range for the NDE-3703-AL-GOV?

A: The camera operates from -30°C to 55°C (-22°F to 131°F). This range covers northern US winters without supplemental heating and hot rooftop or attic installations in warmer climates.

Marty Allison

What stands out to me on the NDE-3703-AL-GOV is the combination of 120dB WDR and NDAA compliance in a package that still draws under 8W — that's an unusually clean spec profile for a government-rated outdoor dome. Most integrators running federal or state projects have to choose between a premium imager and a compliant SKU; this one doesn't force that tradeoff.

Technical Highlights:

• 120dB Dynamic Range: Handles the hardest real-world lighting transitions — direct sun at a perimeter gate, headlights at a parking entry — without the blown highlights and crushed shadows that make footage inadmissible. 120dB is a meaningful step above the 100–110dB you see on mid-tier domes.
• 3.3–10.2mm Varifocal at F1.6: The wide-end aperture of F1.6 pulls in roughly 2.5× more light than an F2.8 fixed lens. In low-ambient conditions that difference keeps color detail visible before the IR kicks in, which matters for facial and clothing recognition at building entrances.
• ONVIF Profile G + 2TB SD: Local edge recording to 2TB is not a checkbox feature here — at 5MP/H.265, 2TB covers days of continuous footage. Profile G means your VMS can query and retrieve that buffered footage directly, so you're not pulling SD cards manually during an incident investigation.

Deployment Considerations:

• The varifocal range (3.3–10.2mm) covers most standard mounting heights of 3–6m, but verify the field-of-view math before specifying it for long-distance perimeter runs above 8m — at 10.2mm and 5MP you have roughly 30° horizontal coverage, which may not be enough horizontal sweep without additional cameras.
• 802.1X is listed but verify your switch supports RADIUS-based port authentication before relying on it as a security control — not all PoE switches in the field support 802.1X even when the camera does.

This is the dome I'd specify for federal building entrances, transit authority cameras, and any state or municipal project where the procurement officer is going to ask for NDAA and TAA documentation on every line item. The NDE-3703-AL-GOV (often searched as NDE 3703 AL GOV) delivers the compliance paper trail without conceding on the imaging specs that make footage actually useful.
