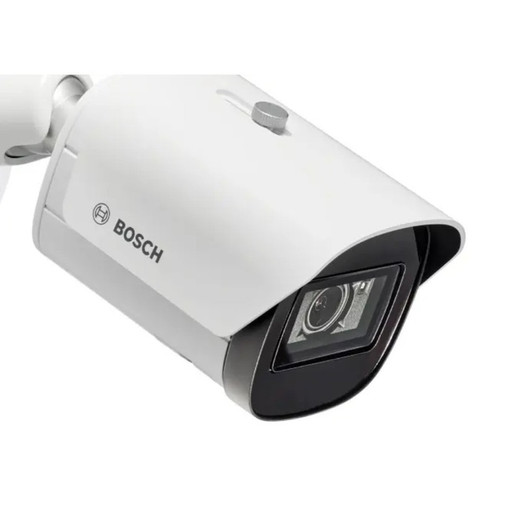

Bosch Bullet 5MP HDR 3.2-10.5mm IP66/67 GOV - NBE-5703-AL-GOV

Bosch NBE-5703-AL-GOV 5MP HDR Outdoor Bullet Camera

Overview

The Bosch NBE-5703-AL-GOV is a 5MP outdoor bullet camera engineered for demanding government and critical-infrastructure deployments where physical toughness, cybersecurity compliance, and evidence-grade imaging all have to coexist. Built on a 1/2.7-inch CMOS sensor with a 3.2–10.5mm motorized varifocal lens, a 120 dB dynamic range, and a hardened aluminum housing rated IP66/67 and IK10, this camera is sized for perimeter walls, entry control points, parking structures, and any outdoor post that needs to stay functional in extreme weather. The GOV designation signals purpose-built cybersecurity: hardware TPM, x.509 PKI, AES-256/AES-128 encryption, TLS 1.3, and full end-to-end encryption with compatible VMS — all relevant if your deployment must satisfy federal or state security baselines. Explore the full Bosch surveillance line to see where this model fits within their outdoor camera portfolio.

Key Features

• 5MP at up to 30 fps: At 5 megapixels, you get enough pixel density to crop into license plates or facial detail in post-review without deploying a second camera — a real factor when minimizing pole or conduit runs on a government campus. Frame rate runs 1–30 fps, configurable per stream to balance bandwidth against retention requirements.
• 3.2–10.5mm Varifocal Lens (~3.3× zoom range): A motorized varifocal lens means you can fine-tune the field of view at commissioning without physically moving the camera. If coverage needs shift after installation — a fence line extended, a gate relocated — you adjust remotely through the VMS rather than dispatching a lift. This lens range covers roughly 70° wide at 3.2mm down to a tighter corridor view at 10.5mm, practical for both entry-lane and mid-range perimeter work.
• 120 dB Dynamic Range: On scenes with simultaneous sunlight and deep shadow — a vehicle entry gate, a loading dock with overhead skylights — 120 dB of dynamic range keeps both zones in usable detail simultaneously. Without this spec, you're choosing between a blown-out sky and a silhouetted vehicle. At 120 dB, both render correctly in a single frame.
• H.265/HEVC Compression: H.265 cuts storage and bandwidth roughly in half compared to H.264 on equivalent scenes — a direct cost reduction on a 24/7 multi-camera NVR deployment. The camera also supports H.264 and M-JPEG for legacy recorder compatibility, with multiple configurable streams so you can run H.265 to the NVR while feeding an H.264 stream to a secondary analytics server.
• IP66/67 + NEMA 4X + IK10: IP66 means continuous high-pressure water jets don't penetrate; IP67 adds 1-meter temporary submersion tolerance — relevant on low-mounted perimeter posts subject to flooding or high-pressure washdown. NEMA 4X extends the rating to corrosive environments (coastal sites, chemical plants). IK10 is the highest standardized mechanical impact rating, meaning the housing resists a 20-joule impact — useful on public-facing installations subject to tampering.
• –40°C to 55°C Operating Range: This camera operates from –40°C to 55°C (-40°F to 131°F), covering nearly any climate from arctic government facilities to sun-baked desert posts without heated enclosure accessories. Cold start is rated to –20°C; below that, the camera needs a warm-up period before full operation.
• Hardware TPM + AES-256 + TLS 1.3: The crypto coprocessor (TPM) stores keys in tamper-resistant hardware rather than software, which matters for deployments requiring hardware-rooted trust. AES-256 local storage encryption protects SD card footage even if the card is physically removed. TLS 1.3 with x.509 certificates covers the network transport layer. Together these controls directly address common government cybersecurity frameworks' requirements for camera endpoints.
• microSDHC/microSDXC Local Storage up to 2TB: Onboard storage up to 2TB via microSDXC provides edge buffering against network outages — the camera's 5-second pre-alarm recording buffer keeps context footage even for events that trigger right as a network disruption occurs. This is also the fallback if the NVR goes offline during an incident.
• ONVIF Profile S, G, T, M: Profile S covers basic video streaming to any ONVIF-compliant VMS; Profile G adds onboard recording management (useful when paired with the SD slot); Profile T adds H.265 and metadata streams; Profile M covers analytics metadata. This breadth means the camera integrates with network video recorders from major VMS vendors without proprietary driver dependencies.
• Audio I/O (Line-in, Mic-level, Line-out): Both line-level and mic-level audio inputs are supported, plus a line-out — practical for sites adding two-way audio or integrating with intercom systems at a gatehouse or perimeter entry. Line-level avoids the preamp noise typical of mic-only designs.
• 802.3af/at PoE (Class 3, 6.5–10.57W): Power draw peaks at 10.57W, which fits comfortably within 802.3af Class 3 (15.4W budget) — no need for PoE+ switches in a standard deployment. If you're running 24VAC or 12VDC infrastructure instead, those inputs are supported too. Flexible power options reduce infrastructure changes during retrofits.
• Alarm I/O (1 in, 1 out): A single alarm input and output enable direct integration with perimeter detection sensors or access control triggers — connecting a door contact or PIR to start recording, or triggering a siren or relay on video-detected events without routing through the VMS.

Integration & Compatibility

The NBE-5703-AL-GOV pairs with network video recorders and VMS platforms via ONVIF Profile S, G, T, and M. End-to-end encryption is supported with compatible VMS systems — verify your VMS vendor supports Bosch's encrypted video pipeline before committing to that feature in your design. The 10/100BASE-T Ethernet port handles standard network infrastructure; this is not a gigabit port, which is worth noting if your switch port allocation assumes higher-throughput devices. Conduit entries accept 3/4-inch NPT (or M25 metric) and 1/2-inch NPT (or M20 metric), covering standard US and international conduit runs. For structured cabling and PoE switch planning, see the PoE switches category. Video authentication using MD5, SHA-1, and SHA-256 checksums provides chain-of-custody verification for evidentiary footage. Pair with compatible camera mounts and brackets designed for bullet-form outdoor cameras to complete the installation kit.

Frequently Asked Questions

Q: What dynamic range does the NBE-5703-AL-GOV support, and does it matter for entry-lane deployments?

A: The NBE-5703-AL-GOV is rated at 120 dB dynamic range. For entry lanes where headlights, bright sky, and shadowed interiors appear in the same frame, this means the camera captures usable detail across all zones simultaneously — avoiding the blown-out or silhouetted images common on lower-WDR cameras.

Q: Is the NBE-5703-AL-GOV suitable for deployment in extreme cold climates?

A: The operating temperature range is –40°C to 55°C, and the cold start rating is –20°C. At temperatures below –20°C the camera requires a warm-up period before reaching full operational status. No supplemental heated enclosure is required for most cold-climate installations.

Q: What cybersecurity features are built into the NBE-5703-AL-GOV?

A: The camera includes a hardware TPM crypto coprocessor, x.509 PKI certificate support, AES-256 and AES-128 encryption, TLS 1.2 and TLS 1.3, AES-xTS local storage encryption, and video authentication via MD5/SHA-1/SHA-256 checksums. Full end-to-end encryption is available with a compatible VMS.

Q: What PoE standard does the NBE-5703-AL-GOV require, and will it work on a standard 802.3af switch?

A: The camera draws 6.5–10.57W via PoE, within IEEE 802.3af Class 3 (15.4W budget). A standard 802.3af switch port is sufficient — no PoE+ upgrade required. The camera also accepts 24VAC (±10%) and 12VDC (±10%) if your infrastructure uses centralized power instead.

Q: How much onboard storage does the NBE-5703-AL-GOV support?

A: The camera accepts microSDHC cards up to 32GB and microSDXC cards up to 2TB. It includes a 5-second pre-alarm recording buffer. Local storage is encrypted using AES-xTS, so footage on the card remains protected if the card is removed.

Q: What ONVIF profiles does the NBE-5703-AL-GOV support?

A: It supports ONVIF Profile S (basic video streaming), Profile G (onboard recording), Profile T (H.265 and metadata), and Profile M (analytics metadata) — covering compatibility with the broad majority of enterprise VMS platforms without proprietary drivers.

Ted Perry

The NBE-5703-AL-GOV (often searched as NBE 5703 AL GOV) stands out to me primarily because of its cybersecurity stack — not just a software checklist, but a hardware TPM coprocessor doing key storage, paired with AES-xTS on the SD card and TLS 1.3 on the wire. For a 5MP outdoor bullet, that's a meaningful combination when your deployment has to satisfy a government security assessment rather than just a generic IT checklist.

Technical Highlights:

• 120 dB Dynamic Range: On a vehicle entry lane with afternoon sun backlit against a shaded gatehouse, 120 dB keeps the license plate and the guard's face in the same usable frame — that's not marketing language, that's the spec doing what 60–70 dB cameras cannot.
• PoE Budget (6.5–10.57W, 802.3af Class 3): Peaks at 10.57W, which means you're not touching your switch budget on a standard 15.4W 802.3af port. On a 48-port switch powering a full perimeter, that headroom adds up across the panel — no forced upgrade to PoE+ infrastructure.
• H.265 + 2TB microSDXC Edge Storage: Running H.265 to the NVR and buffering up to 2TB locally means a network outage during an incident doesn't blank the recording — the edge card keeps rolling, encrypted at AES-xTS, and the 5-second pre-alarm buffer closes the gap on fast-moving events.

Deployment Considerations:

• The 10/100BASE-T Ethernet port is a real constraint to plan around — if your structured cabling design assumes gigabit for future camera upgrades or multi-stream bandwidth, note this now. You won't saturate a 100Mbps port running one 5MP H.265 stream, but it limits headroom if Bosch adds higher-bitrate modes via firmware.
• Cold start is rated to –20°C, not –40°C — the camera operates down to –40°C once running, but if your site loses power in a –30°C night and comes back online at dawn, plan for a warm-up delay before the camera is fully operational.

This camera is the right spec for a federal facility perimeter or a state/municipal critical infrastructure post where the procurement checklist includes both physical hardening (IK10, IP67, NEMA 4X, –40°C) and a cybersecurity annex (TPM, TLS 1.3, AES-256, video authentication). It's overkill for a commercial retail exterior — correctly spec'd for a facility where someone is actually reviewing those cybersecurity fields on the RFQ.
