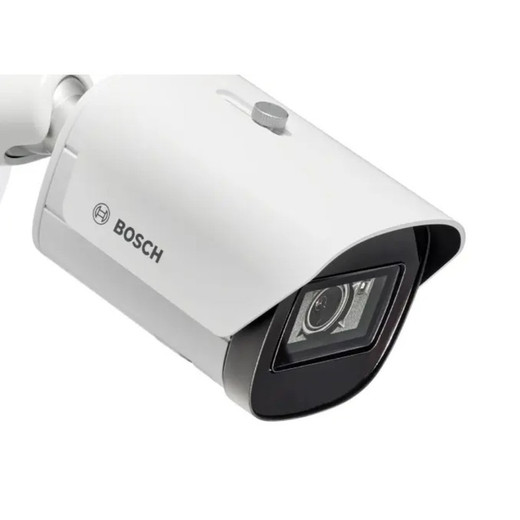

Bosch F.01U.419.482 - DINION 5100i IR Bullet 2MP HDR 3.2-10.5mm IP66/67 GOV - NBE-5702-AL-GOV

Bosch NBE-5702-AL-GOV 1080p Outdoor IR Bullet Camera

The Bosch NBE-5702-AL-GOV is a 1080p full HD outdoor bullet camera built for perimeter protection, gate surveillance, and wide-area monitoring in government and enterprise environments where image integrity, physical resilience, and device-level cybersecurity are non-negotiable. A 3.2–10.5mm varifocal lens, 144 dB WDR, and 60m IR range make it a single-SKU answer to most outdoor fixed-camera positions. It is part of the broader Bosch IP camera lineup engineered for professional integration.

Key Features

• 1080p Full HD (1920×1080): Delivers the pixel density needed for facial recognition and license-plate reads in post-incident review — not just a usable live view, but forensic-quality recorded stills.
• 3.2–10.5mm Varifocal Lens at F1.6: A 3.3× optical zoom range covers horizontal fields from 105° down to 31°, so one part number handles entrance overviews and narrow corridor shots alike. The fast F1.6 aperture pulls in more light at dusk and dawn without relying entirely on IR.
• 144 dB Wide Dynamic Range: This is the spec to scrutinize for entrance and lobby cameras. A gate camera covering a sun-blasted driveway and a shaded guard booth simultaneously will render readable detail in both zones — the 144 dB headroom is wide enough that no manual scene compensation is needed after commissioning.
• 60m IR Night Vision: Onboard infrared illumination extends coverage to 60 meters (197 ft) after dark, eliminating the cost and maintenance overhead of external lighting on most perimeter positions.
• IP66/IP67 + IK10 Rated: Dust-tight, protected against sustained water jets and temporary submersion, and rated to withstand 20-joule vandal impacts. Suitable for exposed wall and pole mounting without a separate protective housing. Pair with appropriate camera mounts and brackets for pole or parapet applications.
• -40°C to 55°C Operating Range: Covers extreme cold climates and high-heat rooftop positions on a single part number — useful for multi-site programs spanning different climate zones.
• H.265 / H.264 / M-JPEG Compression: H.265 cuts storage and bandwidth roughly in half versus H.264 at equivalent quality. On a 24/7 multi-camera NVR deployment, that translates directly to fewer or smaller drives and lower network utilization across long retention windows.
• Up to 60 fps Frame Rate: High-frame-rate capture reduces motion blur on fast-moving subjects — useful at vehicle entry points or where footage will be reviewed frame-by-frame for identification.
• microSDHC/microSDXC Edge Storage up to 2TB: Local card storage keeps recording continuous during network outages and provides a redundant copy independent of back-end infrastructure.
• PoE IEEE 802.3af / 802.3at Class 3: Single-cable deployment draws within Class 3 limits, so a standard managed PoE switch port is all that is needed — no separate power supply, no conduit run for power wiring.
• TPM + PKI x.509 + TLS 1.2 + AES-256: Hardware-rooted trust anchored by a Trusted Platform Module, with certificate-based device authentication and AES-256 encrypted video transport. This is a practical requirement for zero-trust network deployments in government and critical-infrastructure environments.
• 1 Alarm In / 1 Alarm Out: Onboard I/O supports direct wiring to door contacts, motion detectors, or external triggers — enabling camera-driven event recording or remote alerting without additional interface hardware.

Integration & Compatibility

The NBE-5702-AL-GOV supports ONVIF Profile S, G, T, and M — covering live streaming, recorded playback, metadata transport, and analytics interfaces. This breadth of profile coverage means the camera integrates with the major VMS platforms without proprietary driver dependencies. The single RJ-45 Ethernet port carries both data and PoE power. Conduit entries accept 3/4-inch NPT (M25) and 1/2-inch NPT (M20) fittings, matching standard commercial and government conduit runs. Audio line in (0.6 Vrms max) and line out (1.0 Vrms) allow two-way audio configurations when paired with a VMS or intercom system that supports audio channels. Browse the full range of outdoor IP cameras to compare resolution tiers and form factors for your site survey.

Frequently Asked Questions

Q: Does the NBE-5702-AL-GOV support H.265 compression?

A: Yes. The camera supports H.265, H.264, and M-JPEG. H.265 is recommended for new deployments — it reduces storage and bandwidth by approximately 50% compared to H.264 at equivalent image quality, which is meaningful on 24/7 multi-camera recorders.

Q: What PoE class does the NBE-5702-AL-GOV require?

A: The camera operates on IEEE 802.3af or 802.3at Class 3. A standard Class 3 PoE port on a managed switch or injector is sufficient — PoE+ budget is not required.

Q: What is the maximum microSD capacity supported?

A: The camera accepts microSDHC and microSDXC cards up to 2 TB, providing substantial edge storage for local buffering or standalone recording during network interruptions.

Q: Is the camera compatible with third-party VMS platforms?

A: The camera is certified to ONVIF Profile S, G, T, and M. Most professional VMS platforms support one or more of these profiles. Confirm your specific platform's ONVIF compliance list during pre-sales engineering to avoid integration surprises.

Q: What cybersecurity protections are built into the NBE-5702-AL-GOV?

A: The camera includes a hardware Trusted Platform Module (TPM), PKI x.509 certificate-based authentication, TLS 1.2 encrypted transport, and AES-256 data encryption. These features support zero-trust network architectures and meet common government and enterprise device security baselines at the hardware level.

Q: What are the conduit entry options on this camera?

A: The housing provides both 3/4-inch NPT (M25) and 1/2-inch NPT (M20) conduit entries, which are compatible with standard commercial and government conduit specifications used in most construction environments.

Eden Phillips

The spec I point clients to first on the NBE-5702-AL-GOV is the 144 dB WDR — not because it is a big number, but because at gate and lobby positions it eliminates hours of post-commissioning scene tuning. When the sensor can handle a 144 dB dynamic range natively, you stop fighting the camera and start configuring the VMS.

Technical Highlights:

• 144 dB WDR: Wide enough to render simultaneous detail in sun-blasted and deeply shadowed zones in a single frame — relevant at any entrance point where direct sunlight and interior shade coexist.
• TPM + AES-256 Cybersecurity: Hardware-rooted trust means device authentication is not just a password policy — certificates are anchored in the TPM, satisfying zero-trust requirements that many government and critical-infrastructure procurement specs now mandate.
• -40°C to 55°C Operating Range: A single part number covers arctic winters and desert-summer rooftop installations — useful for multi-site programs where procurement teams want to avoid climate-specific SKU variants.

Deployment Considerations:

• ONVIF Profile T is the profile to confirm with your VMS vendor — it covers metadata and analytics interfaces that Profile S alone does not, and some older VMS versions only partially implement it. Verify against your VMS release notes before finalizing the integration design.
• The -40°C temperature floor does not shortcut conduit sealing requirements. At sustained low temperatures, specify appropriate weatherheads and verify that your bracket material is rated for the same range — thermal contraction on mismatched materials causes the mounting failures, not the camera itself.

This camera is best positioned on government perimeter programs, critical-infrastructure entry control points, and multi-site commercial deployments where a consistent hardware security baseline and a wide climate tolerance are procurement requirements — not optional preferences.
