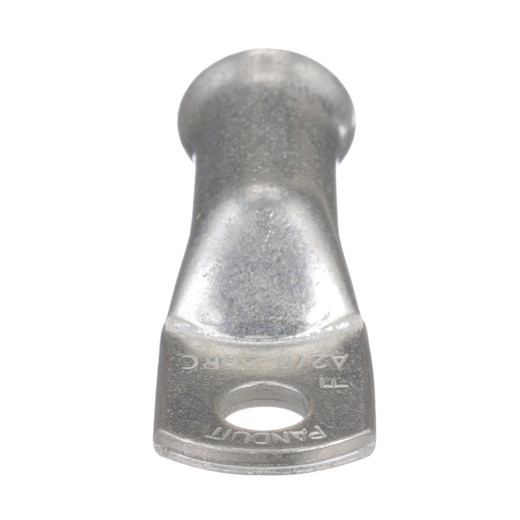

Panduit A8-10R-C Battery Cable Lug

Overview

The Panduit Pan-Lug™ A8-10R-C is a tin-plated copper compression lug designed for terminating 8 AWG battery cables onto a #10 stud. Its flared entry simplifies wire insertion, ensuring a secure connection in demanding power applications. This lug is engineered for high pullout strength, making it suitable for heavy-duty systems where reliability is critical.

Compatibility

This lug is specified for use with 8 AWG wire and is designed to connect to a #10 stud size. It meets US Military Wire Pull Out Specs, indicating suitability for applications requiring robust mechanical integrity. Its primary use is in wire termination for power distribution systems, including those found in surveillance, automation, and IT infrastructure where reliable power connections are essential.

Installation Notes

Installation requires a proper crimping tool designed for 8 AWG wire and compression lugs. The flared entry aids in seating the wire correctly before crimping. For optimal performance and to meet cULus standards, ensure the lug is crimped securely onto the wire. The tin-plated finish provides corrosion resistance, particularly important in environments where moisture may be present.
