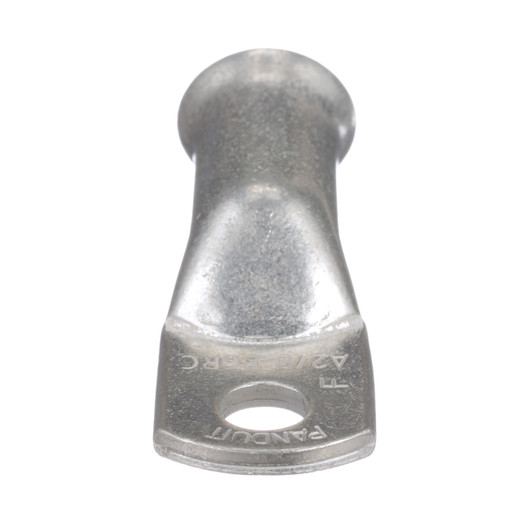

Panduit A8-56R-C Pan-Lug™ Battery Cable Compression Lug

The Panduit A8-56R-C compression lug terminates 8 AWG battery cable to 5/16" stud connections in UPS installations, standby power systems, and telecom battery banks. Tin-plated copper construction resists corrosion in high-humidity equipment rooms while maintaining low contact resistance over decades of service. Each lug is embossed with wire size markings to prevent mis-application during high-volume rack terminations. Sold in 100-piece packages for multi-rack UPS deployments and large-scale battery string installations.

Key Features

• 8 AWG wire capacity with 5/16" stud hole — fits standard battery terminal posts and bus bar hardware
• Tin-plated copper barrel and pad — superior corrosion resistance in HVAC-cycled equipment rooms compared to bare copper
• Flared wire entry — guides stranded cable into the barrel without pre-forming, speeds termination on 100+ connection jobs
• Embossed wire size marking — prevents accidental use of wrong lug size when multiple gauges are staged on the same cart
• cULus Listed to UL 486A-486B — meets US and Canadian electrical code requirements for power distribution lugs
• Meets MIL-STD wire pull-out specs — withstands vibration and mechanical stress in mobile generator trailers and outdoor battery enclosures
• 1.45" overall length — compact profile fits tight terminal spacing on sealed lead-acid battery arrays
• 100-piece package quantity — bulk packaging reduces per-connection cost on datacenter and central station UPS projects

Compression lugs create gas-tight connections between stranded copper conductors and threaded stud terminals by cold-forming the lug barrel onto the wire. Unlike mechanical set-screw lugs that rely on surface contact, properly compressed Pan-Lug terminals deform the copper strands into a unified mass that maintains contact pressure through thermal cycling and vibration. The tin plating on the A8-56R-C prevents galvanic corrosion when the lug contacts dissimilar metals like brass battery posts or aluminum bus bars, and inhibits oxide formation that increases contact resistance over time. In battery applications where connections may remain undisturbed for 10–15 years between service cycles, tin plating ensures the termination resistance stays within milliohm tolerances — critical for minimizing voltage drop and heat generation in high-current DC circuits.

The flared entry on this lug accommodates the natural splay of stranded 8 AWG cable without requiring installers to taper and bind the conductor end. On jobs involving 50–200 battery terminations — common in 3-string UPS configurations or telecom -48VDC plants — this design feature cuts 15–20 seconds per connection and reduces hand fatigue from pre-forming wire. The embossed size marking remains legible after compression, allowing QA inspectors to verify correct lug-to-wire pairing during final walkthrough without referencing install documentation. Installers working from pre-cut cable assemblies can stage multiple wire gauges on the same work surface and visually confirm the correct lug in gloved hands under poor lighting conditions typical of equipment room floor work.

cULus listing to UL 486A-486B qualifies the A8-56R-C for use in electrical distribution systems inspected under the National Electrical Code (US) and Canadian Electrical Code. The listing covers both general power wiring (486A) and wire connectors for aluminum and copper conductors (486B), ensuring the lug meets pullout force, temperature rise, and dielectric strength requirements for its rated wire size. Compliance with US Military wire pull-out specifications adds a mechanical performance validation beyond commercial electrical codes — the lug-to-wire interface survives the cyclic loading and shock conditions defined in military connector standards, making this lug suitable for mobile power applications like trailer-mounted generators, vehicle-based communications systems, and transportable surveillance equipment where vibration and movement stress cable terminations. The 100-pack quantity aligns with typical material takeoffs for 40–80 kVA UPS installations (2–4 strings of 40 cells each, positive and negative terminations) and allows purchasing teams to consolidate orders rather than managing multiple 10- or 25-piece box SKUs across different wire gauges.
