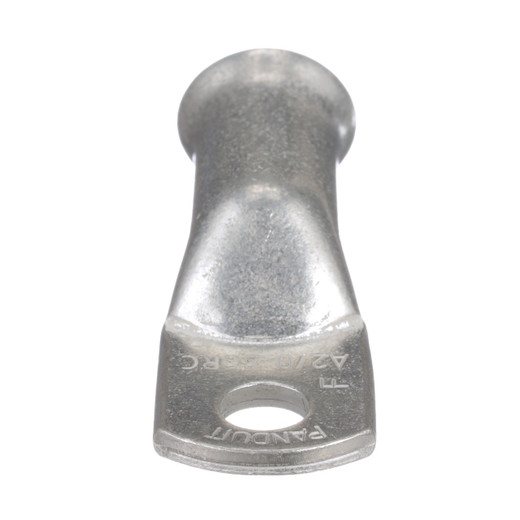

Panduit A4/0-56R-C Compression Lug

Overview

The Panduit A4/0-56R-C is a high-conductivity copper compression lug designed for heavy-duty battery cable applications. Its flared entry simplifies wire insertion, and the tin plating offers corrosion resistance. This lug is embossed with the wire size, ensuring correct application. It meets US Military Wire Pull Out Specs, providing assurance for demanding installations where cable integrity is paramount. The model number A4/0-56R-C is specifically engineered for 4/0 AWG wire and a 5/16" stud size, making it suitable for power distribution and critical connections.

Compatibility

This lug is designed for use with 4/0 AWG wire and is compatible with 5/16" studs. It is cULus Listed for use in US and Canada to UL 486A-486B standards for power applications, ensuring broad system compatibility in commercial and industrial environments. Its high pullout strength makes it suitable for applications requiring robust wire termination.

Installation Notes

Requires a proper crimping tool for 4/0 AWG wire to achieve rated pullout strength and electrical conductivity. Torque the stud connection to manufacturer specifications for the mating equipment to ensure a secure electrical path and prevent loosening under vibration. The tin plating provides a reliable contact surface.
