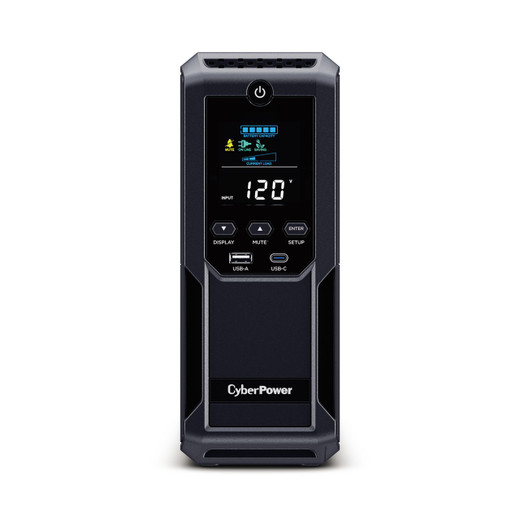

CyberPower BRG1500AVRLCD2 Intelligent LCD UPS System
The CyberPower BRG1500AVRLCD2 is a line-interactive uninterruptible power supply delivering 1500 VA / 900 watts of battery-backed simulated sine wave power in a compact mini-tower form factor. Built for desktop workstations, small server deployments, network equipment racks, and surveillance recording stations, this UPS combines automatic voltage regulation (AVR) with intelligent battery management to ride through power disturbances, brownouts, and short-duration outages without dropping critical loads. The front-panel LCD provides real-time load, battery, and fault status at a glance, while dual USB charging ports and comprehensive surge protection across twelve outlets make this a practical choice for integrators managing mixed-load environments where uptime and equipment protection are non-negotiable.
Key Features
- 1500 VA / 900 W capacity with line-interactive topology and simulated sine wave output for workstations, NVRs, network switches, and POS terminals
- Automatic Voltage Regulation (AVR) with ±10% boost/buck correction extends battery life by handling voltage sags and surges without switching to battery mode
- 12 total NEMA 5-15R outlets: 6 battery backup + surge protected, 6 surge-only for peripherals and non-critical equipment
- Multifunction LCD display shows load level, estimated runtime, battery capacity, input/output voltage, and fault codes in real time
- Dual USB charging ports (1× USB-A 2.4A, 1× USB-C 18W PD) for phones, tablets, and portable radios without consuming AC outlets
- USB, serial, and RJ-45 data line protection with PowerPanel Personal software for automated shutdown, event logging, and battery testing
- 1500 joule surge suppression with EMI/RFI filtration across all outlets to guard against transient spikes and electrical noise
- 2× 12V/9Ah sealed lead-acid batteries deliver 12 minutes runtime at 450W (half load), 2 minutes at 900W (full load)
- Optional SNMP/HTTP remote management card slot for out-of-band monitoring in headless server or network closet deployments
- 5-year warranty and $500,000 Connected Equipment Guarantee backed by UL1778, cUL, FCC Class B, and ENERGY STAR certifications
Line-interactive topology with AVR places this UPS in the practical middle ground between passive standby units and expensive online double-conversion systems. The internal buck-boost transformer automatically corrects input voltage swings of ±10% without engaging the battery, which is critical in commercial buildings with fluctuating mains power, aging electrical infrastructure, or HVAC-induced voltage drops. When input voltage moves outside the AVR correction window (below 97 VAC or above 145 VAC), the UPS transfers to battery mode in under 4 milliseconds—fast enough to keep ATX power supplies, switch-mode adapters, and most modern electronics online without interruption. The simulated sine wave output approximates a pure sine but with a stepped waveform suitable for resistive and switching loads; desktop computers, LED monitors, IP cameras, and PoE switches run without issue, though sensitive audio equipment or legacy laser printers with large motors may exhibit minor hum or reduced efficiency compared to pure sine wave units.
Typical deployment scenarios include small office network closets (cable modem, router, PoE switch stack, NVR), retail POS stations (terminal, receipt printer, cash drawer, barcode scanner), and remote surveillance recorder installs where a brief outage would otherwise corrupt video databases or leave cameras unreachable during ISP equipment reboots. The split outlet design—six battery-backed, six surge-only—lets you segregate critical loads from nice-to-have peripherals: put the NVR, switch, and modem on battery backup, plug monitors and desk lamps into surge-only. Runtime at half load (450W) is twelve minutes, enough to ride out momentary grid hiccups or execute a graceful shutdown via the PowerPanel software before the battery depletes. At full 900W load, runtime drops to two minutes—sufficient for a controlled shutdown sequence but not for extended runtime; if you need 30+ minutes at high load, plan for external battery packs or a larger VA model. The included 6-foot NEMA 5-15P input cord reaches most wall outlets without extension cables, and the mini-tower footprint (13.78″ D × 10.2″ H × 3.94″ W, 23.8 lb) fits under desks, in relay racks with a shelf, or beside network equipment without monopolizing floor space.
Management and monitoring options scale from basic to enterprise-grade. Out of the box, the front LCD panel displays six rotating metrics: input voltage, output voltage, load percentage, battery charge percentage, estimated runtime, and fault/status codes—no software required. For automated shutdown and event logging, the PowerPanel Personal application (Windows/Mac/Linux) connects via the rear USB port and can issue shutdown commands to the host machine when battery capacity falls below a user-defined threshold, email administrators on power events, log voltage and load trends, and schedule self-tests. Serial port connectivity supports legacy servers or specialized SCADA equipment requiring RS-232 signaling. For remote headless deployments—think wiring closets, equipment rooms, or co-located racks—CyberPower offers an optional RMCARD series SNMP/HTTP management card that slides into the rear expansion slot and provides web GUI access, SNMP traps, and integration with NMS platforms like PRTG, Nagios, or SolarWinds, letting you monitor battery health and power conditions across distributed sites without physical access to the unit.
The BRG1500AVRLCD2 meets UL1778 (UPS safety standard), Canadian UL107 5th edition, FCC Part 15 Class B (conducted and radiated emissions limits for commercial environments), RoHS hazardous substance restrictions, and qualifies for ENERGY STAR certification due to its high-efficiency design and low no-load power draw. The five-year manufacturer warranty covers the UPS chassis and electronics, with a typical battery service life of 3–5 years depending on charge cycles, ambient temperature, and depth-of-discharge patterns; replacement battery cartridges are field-swappable without tools. The $500,000 Connected Equipment Guarantee covers repair or replacement of equipment damaged by surges or lightning while properly connected to the UPS, subject to claim documentation and proof of proper grounding. For integrators managing small-to-medium commercial installs where clean power, brief ride-through capability, and straightforward management justify the investment over passive power strips, this unit delivers the practical feature set and reliable performance that keeps service calls to a minimum and end-users confident their gear stays online when the grid doesn't.
