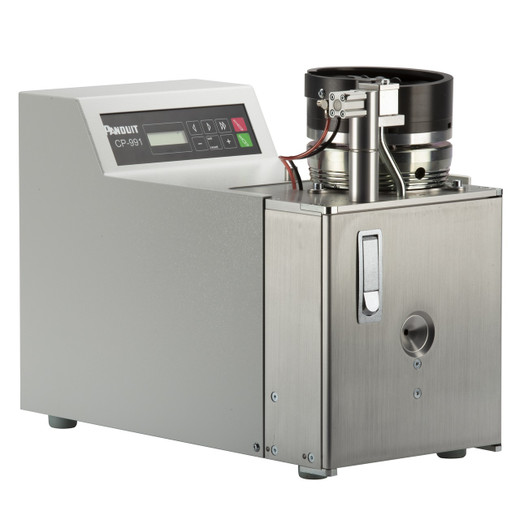

Panduit CP-991 Bowl-Feed Ferrule Strip and Crimp Press

The Panduit CP-991 is a production-grade, automated strip-and-crimp press in the Pan-Term® line — engineered for high-volume ferrule termination on panel wiring, control cabinets, and industrial automation assemblies where throughput and consistency matter more than occasional hand-tool use. At 1.3 to 1.5 seconds per completed termination cycle, this machine is built for facilities processing thousands of wire ends per shift, not dozens.

Overview

Where hand crimpers introduce variability and slow production lines, the CP-991 compresses three discrete manual steps — wire stripping, ferrule placement, and ferrule crimping — into a single automated cycle. The refillable bowl-feeding mechanism eliminates the reel changes that cause downtime on conventional ferrule applicators, keeping the machine running without manual ferrule loading between batches. At 16 inches tall and 9.5 inches wide (405 mm × 240 mm, 19.3 inches overall length), the CP-991 is a bench-mounted unit sized for a dedicated station in a panel shop or wire harness area — not a portable hand tool.

This is a Pan-Term® product from Panduit's wire termination line, part of a system that includes compatible die kits and loose-piece ferrule assortments designed for this platform.

Key Features

• 1.3–1.5 Second Automated Cycle: The three-step process (strip, place, crimp) executes in under 1.5 seconds per wire end. On a 400-wire panel build, that's under 10 minutes of pure termination time — versus 40+ minutes with a manual ratchet crimper and separate stripper. Throughput improvement is the direct ROI argument for this machine.
• Bowl-Feed Container for Loose Piece Ferrules: The refillable bowl-feed design handles loose-piece ferrules rather than reel stock, eliminating reel change downtime entirely. For shops running mixed ferrule sizes across different panel specs, this also simplifies changeover — refill the bowl rather than threading a new reel.
• Color-Coded Changeover Components: Die sets and changeover components are color-coded to ferrule size, reducing the chance of a wrong-die setup error during a ferrule size switch. In a busy shop running multiple wire gauges in the same shift, this is a practical error-reduction measure with a measurable impact on rework rates.
• Digital LCD Cycle Counter: The built-in digital LCD displays a running cycle count, enabling batch quantity verification without manual tally. For shops operating under IPC or UL 508A documentation requirements, accurate per-batch counts support traveler-based quality records and reduce over/under-crimp errors that slip through on manual counts.
• Designed for Loose Piece Ferrule Compatibility: Works with select loose-piece ferrules and the CP-991-KIT025, CP-991-KIT25, and CP-991-KIT4 die kits — giving panel builders a clear, Panduit-defined compatibility matrix rather than guessing at third-party die fit.
• Fixed Bench-Mount Footprint: The 19.3 × 9.5 × 16 inch envelope is sized for a permanent bench station. If you're evaluating this for portable or field use, it is not designed for that — plan for a dedicated termination bench with the unit positioned for operator ergonomics across an 8-hour shift.

Integration and Compatibility

The CP-991 (often searched as CP 991) is designed to be used with Panduit's Pan-Term® loose-piece ferrule assortments and the die kit series: CP-991-KIT025, CP-991-KIT25, and CP-991-KIT4. Each kit corresponds to specific ferrule wire ranges — confirm the ferrule gauge range for your project against the die kit specs before ordering. The machine does not accept reel-fed ferrules; your consumable procurement must be loose-piece format.

For facilities already standardized on Panduit wire management and termination products, the CP-991 integrates naturally into an existing Pan-Term® workflow. Shops building wire termination tooling kits for panel assembly lines should evaluate the full die kit range to match their ferrule size mix. If your project requires connector-to-wire terminations rather than ferrule terminations, review Panduit's crimping tools and applicators catalog for the appropriate platform. For facilities planning full panel wiring stations, pair the CP-991 with a wire duct and cable management solution to maintain conductor organization through the termination process.

Frequently Asked Questions

Q: What ferrule types does the CP-991 accept?

A: The CP-991 is designed for use with loose-piece ferrules — not reel-fed stock. Compatible die kits include CP-991-KIT025, CP-991-KIT25, and CP-991-KIT4. The specific ferrule gauge ranges are defined by the die kit selected; confirm your wire gauge range against kit specifications before ordering.

Q: What is the cycle time on the CP-991?

A: The CP-991 delivers an average manual processing cycle time of 1.3 to 1.5 seconds per completed termination, covering wire stripping, ferrule placement, and ferrule crimping in a single automated sequence.

Q: Can the CP-991 be used for field or portable applications?

A: No. The CP-991 is a bench-mounted production press measuring 19.3 inches long by 9.5 inches wide by 16 inches tall. It is designed for fixed installation at a dedicated termination station in a panel shop or wire harness facility — not for portable or field use.

Q: Does the CP-991 have a batch counter?

A: Yes. The CP-991 includes a digital LCD system with a cycle counter that tracks completed terminations for batch quantity counting. This supports production efficiency and accuracy for shops tracking per-batch output.

Q: How does the bowl-feed mechanism differ from reel-fed ferrule applicators?

A: The refillable bowl-feed container accepts loose-piece ferrules, eliminating reel change downtime. On reel-fed applicators, changing ferrule size or refilling requires rethreading the reel — the CP-991's bowl design allows a simpler refill operation and faster changeover when switching ferrule sizes.

Q: What die kits are compatible with the CP-991?

A: Panduit specifies the CP-991-KIT025, CP-991-KIT25, and CP-991-KIT4 as compatible die kits, along with select loose-piece ferrules. Verify wire gauge compatibility within each kit before committing to a ferrule size range for your project.

Eden Phillips

The CP-991 is the production argument for ferrule termination in a panel shop — the 1.3 to 1.5 second per-cycle spec is not marketing copy, it's the number that justifies the capital expense over a row of manual ratchet crimpers when you're running high wire counts. If your team is hand-crimping 500+ ferrules per shift, the math on throughput improvement closes fast.

Technical Highlights:

• Three-step automated cycle (1.3–1.5 sec): Strip, place, and crimp execute in sequence without the operator touching the ferrule — which also removes the ferrule misalignment errors you get with manual placement on high-volume runs.
• Bowl-feed loose-piece ferrule delivery: No reel threading means changeover between ferrule sizes is a bowl swap rather than a reel rethread — meaningful when a single panel build spec calls for multiple wire gauges on the same shift.
• Digital LCD cycle counter: Batch count visibility at the machine level supports traveler documentation and QC sign-off without a separate tally sheet — the kind of detail that matters on UL 508A panel shop floors.

Deployment Considerations:

• The CP-991 requires bench mounting at a fixed station (19.3 × 9.5 × 16 in) — size your termination bench and operator position before the unit arrives, particularly if you're retrofitting into an existing panel assembly line.
• Die kit selection is the first decision after the machine — CP-991-KIT025, CP-991-KIT25, and CP-991-KIT4 cover different ferrule ranges; if your wire gauge mix spans the full range, you may need more than one kit, and changeover time between kits should factor into your throughput projections.

The CP-991 is the right call for panel shops and wire harness facilities with sustained high-volume ferrule termination demand — specifically those running mixed gauge builds where the bowl-feed changeover advantage and cycle counter documentation support justify the bench footprint and capital cost.
