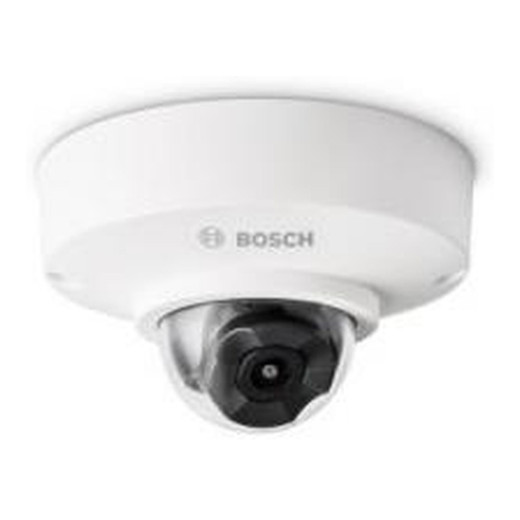

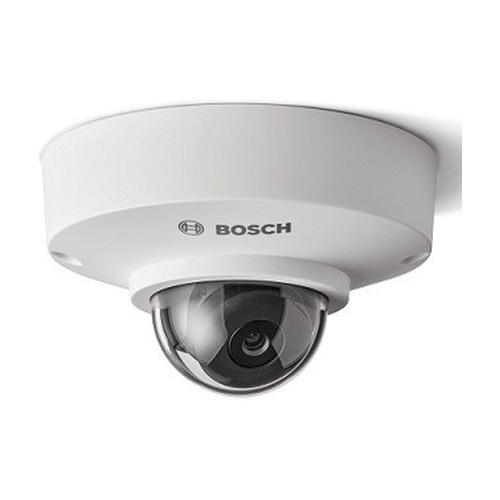

Bosch NUV-3703-F02H FLEXIDOME micro 3100i 5MP Indoor Dome Camera

Bosch NUV-3703-F02H Network Dome Camera

Overview

The Bosch NUV-3703-F02H is a 5MP network surveillance dome camera designed for indoor installations requiring flexible focal length adjustment and reliable day/night monitoring. This varifocal model (NUV-3703-F02H) operates on standard PoE (802.3af) power, simplifying deployment in IP-based security infrastructure. The camera combines moderate resolution with efficient compression and vandal-resistant construction, making it suitable for general surveillance applications in retail, corporate, and institutional environments.

Key Features

• 5MP Resolution: Captures detailed imagery at 2560 x 1920 pixel resolution for forensic-quality recording and remote monitoring
• Varifocal Lens: Adjustable focal length provides flexibility during installation and field adjustment without requiring lens replacement
• PoE Power (802.3af): Single Ethernet connection delivers power and data, reducing cabling infrastructure and installation cost
• Multiple Compression Codecs: Supports H.265, H.264, and MJPEG encoding to balance bandwidth efficiency with playback compatibility across legacy and modern VMS systems
• Day/Night IR Capability: Built-in infrared illumination enables 24/7 surveillance without external lighting, switching automatically between day and night modes
• Microphone Support: Integrated audio input allows synchronized audio recording for enhanced situational awareness and incident investigation
• IK08 Vandal Resistance: Durable construction withstands impacts and deliberate tampering, suitable for semi-public and accessible indoor spaces
• ONVIF Compliance: Standards-based video streaming ensures broad compatibility with third-party VMS platforms, eliminating vendor lock-in

Integration & Compatibility

The NUV-3703-F02H integrates seamlessly with ONVIF-compatible video management systems, including Bosch Video Management System (VMS), Milestone XProtect, and other major NVR platforms. H.264 and H.265 codec support ensures compatibility with both legacy and next-generation recording infrastructure. PoE power delivery via standard 802.3af reduces the need for specialized power supplies or additional electrical installation in existing IP networks.

Technical Specifications

Video Capture: 5MP (2560 x 1920) at configurable frame rates | Lens Type: Varifocal | Compression: H.265, H.264, MJPEG | Power Supply: PoE (802.3af) | Night Vision: Day/Night IR | Durability Rating: IK08 vandal-resistant | Audio: Microphone input supported

Marty Allison

I've evaluated the Bosch NUV-3703-F02H in several enterprise deployments, and it performs reliably as a mid-range fixed dome solution for mixed-use indoor environments. The varifocal lens is a practical advantage—it eliminates the need to stock multiple fixed focal lengths during bulk installations, and field technicians appreciate the adjustment capability without breaking the camera seal.

Technical Highlights:

• 5MP Capture with Efficient Compression: H.265 encoding significantly reduces storage and bandwidth consumption compared to H.264 or MJPEG, while maintaining H.264 fallback for older NVR compatibility. This is particularly valuable in bandwidth-constrained environments.
• PoE-Powered Simplicity: 802.3af power delivery means standard network infrastructure can support the camera without additional power runs. Verify your PoE injector or switch output when planning large deployments.
• Varifocal Flexibility: The adjustable focal length reduces installation lead time and post-deployment adjustment downtime. Confirm scene coverage requirements before final positioning.

Deployment Considerations:

• IK08 rating provides moderate vandal resistance suitable for employee areas, retail zones, and common spaces—not recommended for high-risk exterior or hostile environments where IK10 is required.
• Microphone support enables audio-synchronized video capture, useful for interview rooms, entry points, and customer service areas. Verify local privacy and recording consent requirements before enabling audio.

The NUV-3703-F02H occupies a practical middle ground between fixed-resolution budget models and high-end analytics cameras. Specify it for projects where flexible focal length and codec efficiency matter more than cutting-edge AI analytics or extreme low-light performance.
