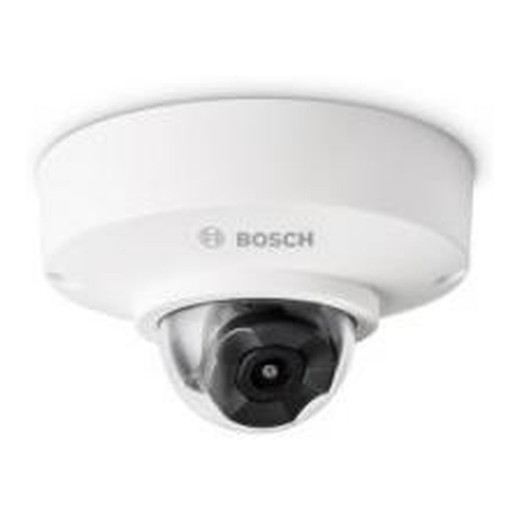

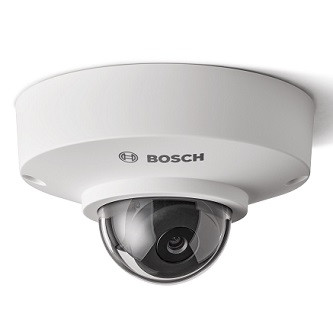

Bosch NUV-3702-F06 FLEXIDOME micro 3100i 2MP Indoor Dome Camera

Bosch NUV-3702-F06 Network Surveillance Dome Camera

Overview

The Bosch NUV-3702-F06 is a compact network surveillance camera engineered for controlled indoor and outdoor deployments requiring durable, weather-resistant operation. This 2MP fixed-dome unit delivers standard-definition video with flexible codec support and varifocal lens capability, making it suitable for integration into mid-scale surveillance networks where straightforward deployment and reliable day/night performance are priorities.

Key Features

• 2MP Resolution: Captures 1920 × 1080 video for clear identification in standard monitoring applications
• Varifocal Lens: Adjustable focal length allows field-of-view customization during installation without camera replacement
• Day/Night IR Capability: Integrated infrared illumination enables continuous operation across lighting conditions
• Flexible Video Compression: Supports H.265, H.264, and MJPEG codecs for bandwidth optimization and VMS compatibility across diverse network architectures
• PoE Power (802.3af): Single network cable supplies power and connectivity; eliminates separate power infrastructure
• IP66 Environmental Rating: Sealed against dust and water jets; rated for exposed outdoor mounting and high-moisture environments
• IK08 Vandal Resistance: Impact-rated housing withstands physical contact and minor strike hazards
• Built-in Microphone: Integrated audio input supports two-way communication and event-linked sound recording
• Rack Mount Configuration: Designed for ceiling or wall installation in standard surveillance deployments

Technical Specifications

The NUV-3702-F06 operates on PoE power (802.3af standard), drawing minimal current suitable for standard PoE injectors and PoE-enabled network switches. The varifocal lens provides focal length adjustment to match specific deployment geometry. Video output supports multiple compression standards—H.265 for efficient bandwidth utilization, H.264 for broad VMS support, and MJPEG as a fallback for legacy systems. The camera includes audio input via integrated microphone, supporting applications requiring synchronized sound capture with video events.

The IP66 rating ensures the sealed optical path and housing remain functional when exposed to heavy spray, rain, and particulate environments. The IK08 vandal rating indicates the lens and housing can tolerate impact forces typical in accessible outdoor or semi-public locations without optical or mechanical failure. Day/night operation is supported through automatic IR filter switching and onboard infrared LED illumination, enabling continuous surveillance regardless of ambient light.

Integration & Compatibility

The Bosch NUV-3702-F06 integrates into standard ONVIF-compliant surveillance networks, compatible with major VMS platforms including Bosch Video Management System (BVMS), Milestone Xprotect, and third-party ONVIF clients. The multicodec support (H.265, H.264, MJPEG) ensures seamless operation in heterogeneous camera deployments where video streams must be processed through a single management interface. Network configuration follows standard IP camera provisioning workflows—DHCP or static IP assignment via web interface or mobile configuration tools.

Deployment Applications

Suitable for retail environments, warehouse perimeters, parking facilities, and building exterior monitoring where weather resistance and moderate vandal deterrence are required. The varifocal lens accommodates both wide area overview and moderate detail capture from a single installation point. PoE power simplifies logistics for multi-camera rollouts by eliminating dedicated power runs.

Jerry Tildsen

I've evaluated the Bosch NUV-3702-F06 in several customer deployments and found it well-suited for facilities requiring weather-resistant coverage without the complexity of higher-end PTZ or multi-sensor systems. The combination of varifocal lens, IP66 sealing, and IK08 impact rating makes it reliable for exposed outdoor locations where maintenance access is limited and environmental stress is moderate.

Technical Highlights:

• Video Codec Flexibility: H.265 reduces bandwidth by 50% relative to H.264 at equivalent quality; MJPEG fallback ensures compatibility with older VMS platforms or single-frame analysis workflows
• Varifocal Lens Design: Eliminates the need for multiple fixed-focal cameras; field-of-view can be adjusted in the field during commissioning, reducing inventory overhead
• PoE Integration: 802.3af power reduces total cable runs and simplifies UPS backup requirements compared to cameras requiring PoE+ or DC power

Deployment Considerations:

• Confirm that IR illumination range meets your distance requirements; IR performance drops significantly beyond 15–20 meters in outdoor conditions with atmospheric particulate
• Place the camera in locations where the varifocal lens can be physically adjusted during commissioning; remote focus adjustment is not supported on this model
• Validate that your PoE switch or injector supports 802.3af minimum; some legacy PoE midspan devices may require firmware updates for compatibility

The NUV-3702-F06 is a dependable choice for integrators managing mixed-age networks or facilities where simplicity and environmental durability outweigh advanced analytics requirements. Order with confidence for standard surveillance coverage in weather-exposed environments.
