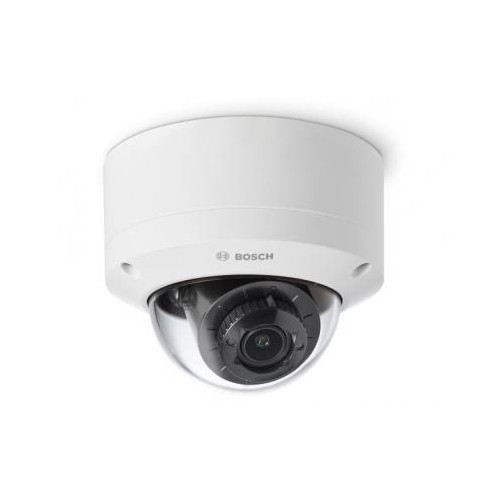

Bosch NDV-5704-A Network Dome Camera

Overview

The Bosch NDV-5704-A is a fixed dome network surveillance camera designed for indoor deployment. This model delivers 8MP resolution in a compact form factor with day/night capability and built-in infrared illumination. The NDV-5704-A supports multiple video compression standards and is powered entirely by PoE (802.3af), eliminating the need for separate power infrastructure on simple network installations.

Key Features

• 8MP Native Resolution: Captures video at 3840 x 2160 (4K UHD), with additional resolution options including 1920 x 1080, 1280 x 720, and lower resolutions for bandwidth optimization
• Varifocal Lens (3.2–10.5 mm): Adjustable focal length allows field-of-view customization from installation, reducing the need for multiple camera SKUs across varied deployment zones
• Day/Night Infrared Illumination: Built-in IR emitters enable continuous operation in low-light and no-light environments without requiring supplemental external lighting
• Multiple Video Compression Codecs: Supports H.265, H.264, and MJPEG encoding, providing flexibility for bandwidth-constrained networks and legacy VMS system integration
• PoE Power (802.3af): Single Ethernet connection supplies both data and power, reducing installation labor and cable runs on standard PoE infrastructure
• Built-in Microphone: Integrated audio input enables two-way communication and event-triggered audio recording for enhanced situational awareness
• IP54 Environmental Rating: Protection against dust ingress and water splash makes the NDV-5704-A suitable for semi-exposed indoor locations such as loading docks, warehouse entrances, and sheltered alcoves
• IK10 Vandal Resistance: Reinforced enclosure withstands impact forces up to 20 joules, protecting against intentional tampering and accidental strikes in high-traffic or hostile environments
• Color and Night Vision Modes: Automatic day/night switching maintains image quality across full 24-hour cycles without manual configuration
• Network Connectivity: 10Base-T/100Base-TX Ethernet interface integrates with standard IT infrastructure and existing network surveillance deployments

Deployment Considerations

The NDV-5704-A is designed for fixed indoor installation with light environmental exposure. The varifocal lens design enables field adjustment post-mounting, reducing commissioning time. Integrators should confirm PoE injector or switch port availability before ordering, as the camera draws power exclusively from 802.3af sources. The IP54 rating supports mounting in semi-protected outdoor spaces such as covered entryways or sheltered alcoves, but full outdoor deployment in rain or direct UV exposure requires additional protective enclosures.

The compact dome form factor and neutral color finishes (black and white options available) integrate unobtrusively into commercial and institutional settings. Multiple video resolution outputs allow real-time streaming at high quality while maintaining concurrent recording at lower bitrates for long-term archive storage. The built-in microphone supports both audio monitoring and two-way calling when integrated with compatible VMS platforms.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Bosch NDV-5704-A represents a practical choice for indoor fixed-dome deployments where straightforward PoE power infrastructure and multi-codec flexibility are priorities. During deployment planning, this camera's varifocal lens and compact footprint consistently reduce site survey complexity and installation time compared to fixed single-lens alternatives.

Technical Highlights:

• Resolution and Compression: 8MP capture with H.265 encoding delivers efficient bandwidth utilization on congested networks while maintaining H.264 and MJPEG fallback for legacy system compatibility.
• Optical Flexibility: The 3.2–10.5 mm varifocal range accommodates both wide-area monitoring and tighter focal coverage from a single SKU, reducing stock complexity for integrators managing multiple deployment sites.
• Power Simplification: PoE (802.3af) operation eliminates power-conduit runs and reduces electrical labor, particularly valuable in retrofit installations where new power circuits are unavailable or costly.

Deployment Considerations:

• Confirm PoE injector or switch capacity before deployment; 802.3af power budgets are finite on shared infrastructure. High-density deployments may require dedicated PoE switches or power budgeting analysis.
• The IP54 rating supports light spray and dust environments, but verify mounting location does not expose the camera to direct rain streams or extended sun. Protective housings extend operational life in harsh micro-climates.
• Audio input is single-channel microphone only; integrate with external amplifiers or codec interfaces if two-way speaker output is required beyond VMS platform audio.

The NDV-5704-A is well-matched to mid-scale commercial surveillance rollouts where PoE infrastructure already exists and codec flexibility is valued. Validate VMS platform ONVIF compatibility before ordering to ensure seamless integration with your chosen management software.
