Bosch NDV-3503-F03 Fixed Dome Camera

Overview

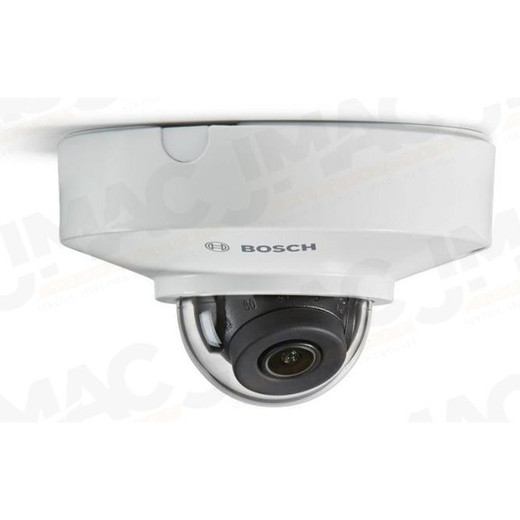

The Bosch NDV-3503-F03 is a compact fixed dome camera designed for indoor surveillance installations requiring 5MP resolution and infrared night vision capability. This model delivers reliable performance with efficient PoE power delivery and multiple codec support, making it suitable for security integrators deploying mixed-codec network environments. The NDV-3503-F03 combines a fixed 2.8mm lens with vandal-resistant construction (IK08 rating), supporting both professional monitoring and cost-effective bulk deployment scenarios.

Key Features

• 5MP Resolution: Captures detailed surveillance video suitable for identification and monitoring applications in small-to-medium coverage areas.
• PoE (802.3af) Powered: Operates on standard Power over Ethernet, eliminating the need for separate power infrastructure and simplifying installation.
• Multi-Codec Compression: Supports H.265, H.264, and MJPEG compression formats, enabling compatibility with diverse VMS platforms and bandwidth optimization based on deployment requirements.
• Infrared Night Vision: Integrated IR illumination extends surveillance capability into low-light and nighttime conditions without requiring external lighting.
• Fixed 2.8mm Lens: Wide field of view suitable for lobby, corridor, and small-space coverage without requiring lens adjustment post-installation.
• IK08 Vandal Resistance: Hardened dome construction rated IK08 provides protection against impact damage and intentional interference, extending service life in accessible areas.
• Built-in Microphone: Audio input capability supports incident documentation and two-way communication scenarios where enabled by the VMS platform.

Integration & Compatibility

The NDV-3503-F03 operates as a standard ONVIF-compatible IP camera, integrating with leading VMS platforms and NVR systems that support ONVIF Profile S. Multi-codec output (H.265, H.264, MJPEG) ensures compatibility with legacy and modern recording infrastructure. The camera's PoE power requirement simplifies network design—a single Cat5e or Cat6 run provides both video transport and power, reducing installation time and infrastructure cost.

Audio input via the built-in microphone enables sound-triggered recording and two-way communication workflows in VMS systems that support audio channels. Standard Ethernet 10/100Base-T connectivity ensures deployment flexibility across existing network segments.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Bosch NDV-3503-F03 in several mid-market deployments where budget and mixed-codec requirements intersect. This camera occupies a practical position in the 5MP fixed dome category—reliable, straightforward to integrate, and power-efficient. The IK08 rating proved valuable in accessible indoor spaces where impact resistance prevents frequent replacement cycles.

Technical Highlights:

• Codec Flexibility: H.265 compression reduces storage and bandwidth demands by 40–50% versus H.264 on the same resolution; MJPEG support maintains compatibility with older VMS deployments that lack modern codec support.
• Power Efficiency: 802.3af PoE operation ensures the camera operates on standard switch ports without requiring PoE+ or dedicated power injectors, simplifying switchport allocation on budget-conscious deployments.
• Low-Light Performance: IR illumination extends usable coverage into unlit areas; 2.8mm fixed lens provides wide coverage suitable for corridors and lobby environments without hotspot issues.

Deployment Considerations:

• Confirm VMS platform supports at least one of the three codec outputs (H.265 preferred for bandwidth savings); H.264 fallback ensures broad compatibility.
• IK08 rating protects against casual tampering but is not impact-resistant to heavy blows; avoid high-risk areas prone to deliberate destruction.
• Audio input is passive (microphone only)—verify your VMS supports audio ingestion if two-way communication is required; speaker output typically requires external amplification.

The NDV-3503-F03 is a practical choice for integrators building compliance-focused or cost-constrained surveillance systems where codec diversity and low power consumption reduce total project cost. Specify it where standard PoE infrastructure and 5MP resolution meet the operational requirements.
