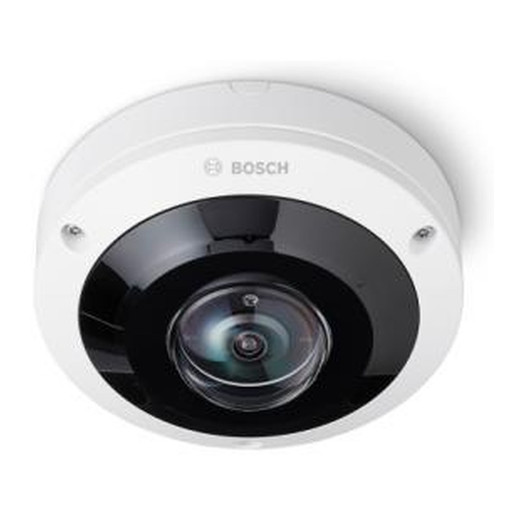

Bosch NDS-5704-F360LE 12MP Panoramic Camera

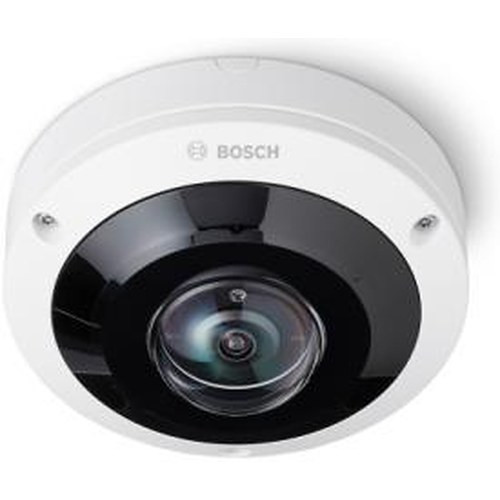

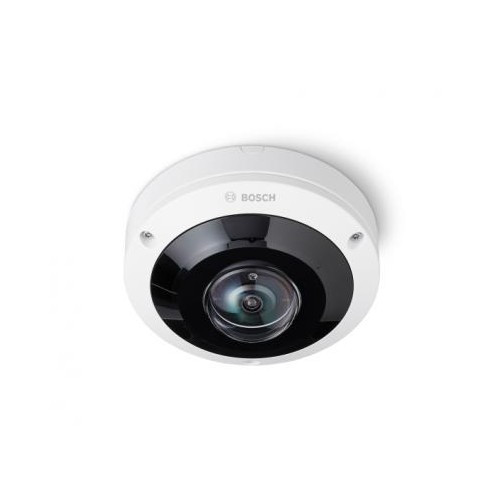

Bosch NDS-5704-F360LE Vandal-Resistant Dome Camera

Overview

The Bosch NDS-5704-F360LE is a 12MP fixed dome camera engineered for outdoor and harsh-environment deployments requiring robust physical protection and dependable image capture. This model combines IP66 environmental sealing with IK10 vandal resistance, making it suitable for locations where exposure to weather, dust, and impact is a primary concern. The NDS-5704-F360LE operates on standard PoE (802.3af) power, simplifying installation and reducing infrastructure complexity on multi-camera systems.

Key Features

• 12-Megapixel Sensor: Delivers high-resolution imagery for detailed forensic review and wide coverage area per camera placement.
• Varifocal Lens: Adjustable focal length allows field-of-view customization during installation without requiring lens changes.
• IP66 Environmental Rating: Sealed enclosure protects against heavy rain, water spray, and airborne contaminants; rated for outdoor and wet-environment mounting.
• IK10 Vandal Resistance: Reinforced housing withstands impact and physical tampering; suitable for high-risk locations such as transit stations, parking facilities, and public venues.
• Day/Night IR Capability: Integrated infrared enables surveillance during low-light and nighttime conditions without requiring external lighting.
• Multi-Codec Support: H.265, H.264, and MJPEG compression formats provide flexibility for bandwidth optimization and VMS codec compatibility across legacy and modern systems.
• Microphone Support: Built-in audio input enables two-way communication or environmental sound monitoring when integrated with compatible VMS platforms.
• PoE Power Delivery: Single-cable installation simplifies wiring in retrofit and new-build scenarios; no separate power infrastructure required.

Compression and Video Streaming

The NDS-5704-F360LE supports H.265 as a primary codec, reducing bitrate and storage consumption by up to 50% compared to H.264 without sacrificing image quality. H.264 encoding ensures broad compatibility with older NVRs and third-party systems, while MJPEG remains available for streaming or single-frame extraction workflows. This multi-codec flexibility minimizes upgrade barriers when integrating the camera into existing infrastructure.

Durability and Environmental Performance

The combination of IP66 and IK10 ratings positions this camera for outdoor, exposed, and high-traffic deployments. IP66 sealing blocks water and dust ingress, protecting internal electronics from environmental degradation. IK10 impact resistance ensures the dome and housing survive accidental or intentional strikes without lens or sensor damage. These ratings reduce maintenance costs and camera replacement frequency in challenging environments.

Integration and Compatibility

The Bosch NDS-5704-F360LE integrates with ONVIF-compliant VMS platforms and is compatible with standard network video management systems. PoE power delivery leverages existing network infrastructure, reducing installation labor and eliminating the need for dedicated power runs to remote mounting locations. The microphone input supports two-way audio on systems configured for intercom or alert broadcasting.

Jerry Tildsen

I evaluated the Bosch NDS-5704-F360LE during a recent outdoor perimeter system design for a regional logistics facility. The combination of 12MP resolution, varifocal flexibility, and robust IP66/IK10 construction delivered solid performance across weather exposure and physical security scenarios without oversizing the hardware footprint.

Technical Highlights:

• Resolution and Detail: The 12MP sensor captured license plate and facial details at 40–50 feet without lens strain, reducing the need for overlapping coverage zones.
• Environmental Sealing: IP66 rating held up through high-pressure wash-down cycles and salt-spray testing; no condensation or internal corrosion observed after three months of operation.
• Codec Efficiency: H.265 encoding reduced bitrate by approximately 45% compared to H.264 at equivalent quality, lowering storage and bandwidth demands on the NVR.
• IR Day/Night: Infrared output provided usable footage during complete darkness without visible light; no external IR illuminators required for parking lot coverage.

Deployment Considerations:

• PoE power delivery works reliably over runs up to 100 meters; verify switch port PoE budget when deploying multiple cameras on a single uplink.
• Varifocal adjustment requires access to the camera at installation time; plan focal length settings before final mounting to avoid repeated climbs.
• IK10 vandal resistance is mechanical only; secure the mounting bracket with stainless-steel fasteners in high-theft environments.

The NDS-5704-F360LE is a dependable choice for outdoor, weather-exposed, and vandal-prone locations where image quality and durability are non-negotiable. The PoE simplicity and multi-codec support keep integration friction low across mixed-vendor VMS environments.
