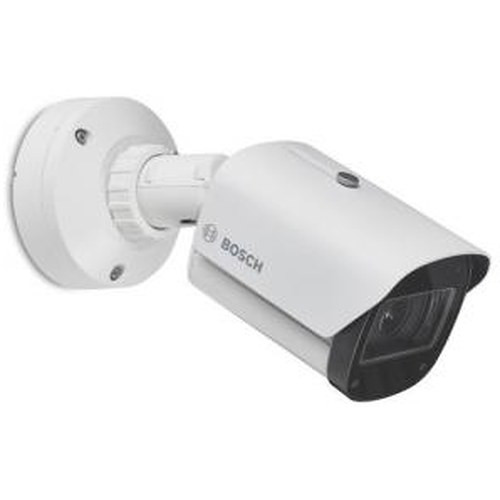

Bosch NBE-7702-ALXT DINION 7100i IR 2MP Outdoor Bullet Camera

Bosch NBE-7702-ALXT Network Turret Camera

Overview

The Bosch NBE-7702-ALXT is a compact 2MP turret camera engineered for outdoor surveillance in high-security and high-traffic environments. Rated IP67 for dust and water ingress protection and IK10 for vandal resistance, this camera delivers reliable video capture across a wide range of deployment scenarios. Powered by single PoE (802.3af), the NBE-7702-ALXT integrates seamlessly into existing network infrastructure without requiring additional power lines or complex installation.

Key Features

• 2 MP Resolution: Captures clear, detailed video suitable for identification and monitoring tasks across mid-range coverage areas.
• Varifocal Lens (10.5–47 mm): Delivers flexible focal length adjustment on-site, enabling operators to optimize framing from wide-angle to telephoto perspectives without camera repositioning.
• H.265, H.264, and MJPEG Codec Support: Multiple compression standards maximize bandwidth efficiency and codec compatibility with diverse VMS platforms and recording infrastructure.
• Day/Night Infrared: Integrated IR illumination and automatic day/night mode switching enable 24/7 surveillance regardless of ambient light conditions.
• PoE Power (802.3af): Single-cable power and data delivery reduces installation labor and simplifies cable management in retrofit and new-build deployments.
• IP67 Environmental Rating: Full dust sealing and water jet protection (up to 100 kPa at 12.5 L/min) ensures operation in rain, wash-down, and coastal environments.
• IK10 Vandal Resistance: Robust polycarbonate housing withstands impact up to 20 joules, meeting critical durability requirements for exposed or high-traffic zones.
• Integrated Microphone: Built-in audio input supports two-way communication, event verification, and forensic audio capture where permitted by local regulation.
• Turret Form Factor: Compact design enables flush mounting on walls and ceilings with minimal protrusion, reducing sightline obstruction and improving aesthetics in indoor/outdoor hybrid installations.

Integration & Compatibility

The Bosch NBE-7702-ALXT adheres to ONVIF standards for broad VMS compatibility, enabling integration with Bosch Video Management System (BVMS), third-party recording platforms, and cloud-connected workflows. Varifocal optics and codec flexibility allow seamless adoption in both greenfield deployments and retrofits alongside legacy infrastructure. Audio input provisioning supports synchronized recording and intercom scenarios where applicable.

Deployment Considerations

IR range and low-light performance are optimized for perimeter and interior monitoring within typical surveillance distances (30–50 meters). Varifocal adjustment should be performed during commissioning to match scene geometry and identification requirements. IP67 and IK10 ratings position this camera for exposed outdoor mounting, parking structures, loading docks, and facilities requiring resilience against weather and impact. PoE power delivery simplifies long cable runs and supports daisy-chain topology across multiple cameras on a single PoE switch port (subject to wattage headroom).

Eden Phillips

I've evaluated the Bosch NBE-7702-ALXT during planning phases for mixed-use outdoor surveillance projects, and its combination of rugged durability and flexible optics makes it a practical choice for integrators managing both harsh-weather and retrofit scenarios. The varifocal 10.5–47 mm lens is a genuine efficiency gain—it eliminates the need to stock multiple fixed-lens SKUs and reduces site visits when field-of-view adjustments are required after installation.

Technical Highlights:

• Compact IP67/IK10 Envelope: Turret design fits tight mounting spaces; environmental ratings cover rain, wash-down, and vandal-prone areas without requiring additional protective housings.
• Multi-Codec Output: H.265 compression reduces storage overhead by ~50% versus H.264 while maintaining H.264 and MJPEG fallback for older VMS systems or bandwidth-constrained WAN links.
• PoE Simplicity: 802.3af power eliminates auxiliary power supplies and supports cost-effective gigabit PoE switches without Class 4+ investment.

Deployment Considerations:

• Varifocal lenses require on-site focus and zoom adjustment during commissioning; budget 15–20 minutes per camera for precise framing in the field.
• IR performance is optimized for mid-range (~30–50 m) perimeter work; supplementary IR fixtures may be needed for longer standoff distances or high-reflectance environments.
• Microphone audio input is useful for two-way intercom and event context but requires compliance verification in privacy-sensitive deployments.

For security integrators balancing ruggedness, flexibility, and PoE efficiency across multi-site programs, the NBE-7702-ALXT delivers solid value. Its durability credentials and lens flexibility justify the capital, and the multi-codec support simplifies backend standardization across mixed-generation systems.
