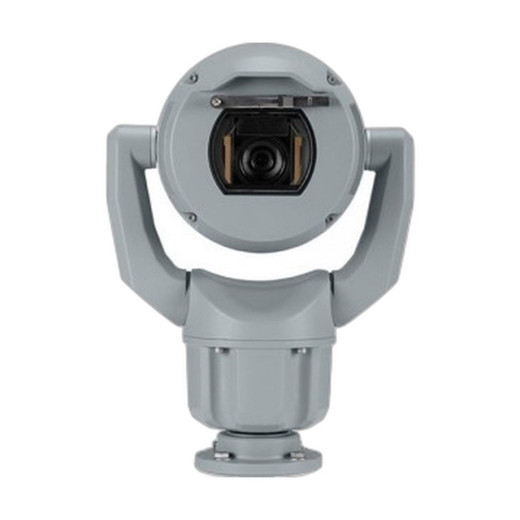

Bosch MIC-7504-Z12GR Network Surveillance Camera

Overview

The Bosch MIC-7504-Z12GR is an 8MP PoE-powered network surveillance camera engineered for demanding outdoor and semi-exposed deployment environments. This model combines high-resolution imaging with vandal-resistant construction (IK10 rating) and full environmental sealing (IP67), making it suitable for security integrators and IT managers implementing hardened perimeter, facility, and infrastructure monitoring solutions. The MIC-7504-Z12GR delivers flexible focal length options through its varifocal lens design while maintaining robust operational reliability across temperature extremes and harsh weather conditions.

Key Features

• 8MP Resolution: Captures detailed video suitable for identification and forensic analysis in mid- to long-range deployments.
• Varifocal Lens: Adjustable focal length accommodates varied installation distances and scene requirements without requiring multiple camera models.
• PoE (802.3af) Power: Single-cable deployment simplifies installation and eliminates separate power conditioning infrastructure.
• IP67 Environmental Rating: Hermetically sealed against dust and water ingress; rated for temporary submersion up to 1 meter for 30 minutes. Suitable for outdoor walls, exposed ceilings, and pole-mounted applications.
• IK10 Vandal Resistance: Withstands impact up to 20 joules; appropriate for accessible locations and high-risk security zones.
• H.265 / H.264 / MJPEG Compression: Supports H.265 (HEVC) for bandwidth-efficient streaming and recording; backward-compatible H.264 and MJPEG options ensure broad NVR and VMS ecosystem compatibility.
• Integrated Microphone: Built-in audio capture enables two-way communication and audio event logging without external microphone modules.
• Day/Night IR Capability: Automatic infrared illumination and sensor switching ensures 24/7 operational visibility in low-light and complete darkness conditions.
• Multi-Mount Design: Supports wall, ceiling, pole, and rack installation configurations; flexible mounting reduces site-specific engineering overhead.
• Compact Ruggedized Housing: Industrial-grade construction rated for prolonged outdoor exposure and mechanical stress.

Integration & Compatibility

The Bosch MIC-7504-Z12GR integrates with ONVIF-compliant video management systems and enterprise NVR platforms via standard Ethernet. Native support for H.265 compression reduces storage and bandwidth requirements in large-scale deployments, while H.264 and MJPEG fallback modes ensure legacy system interoperability. The camera's PoE power delivery aligns with 802.3af standard switches, minimizing power infrastructure modifications in retrofit installations.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During a recent perimeter security expansion for a logistics facility, I evaluated the Bosch MIC-7504-Z12GR for mounting on exposed warehouse surfaces and exterior gate structures. The combination of 8MP resolution, varifocal optics, and IK10 impact resistance made it an optimal choice for this environment where vandalism risk was elevated and environmental exposure was continuous.

Technical Highlights:

• IP67 + IK10 Durability: The sealed enclosure and impact-rated housing eliminate the need for protective cages or redundant environmental shelters, reducing installation footprint and cost.
• H.265 Efficiency: At 8MP, H.265 encoding cuts bitrate by approximately 50% versus H.264, enabling longer retention windows on standard PoE-powered NVR systems without bandwidth saturation.
• Varifocal Flexibility: Adjustable focal length allowed us to optimize for both wide gate overview and detailed vehicle plate capture from a single installation point.

Deployment Considerations:

• Verify PoE switch capacity: 802.3af delivers ~12.95W typical power draw; ensure adequate budget on PoE-enabled ports, particularly in distributed deployments.
• Plan IR coverage: Day/night IR operation is effective for perimeter security but consider supplemental white-light illumination for license plate and facial detail capture in complete darkness.
• Confirm varifocal adjustment during commissioning: Field-adjustable lenses require precise focal length and focus setting; budget commissioning time accordingly.

The MIC-7504-Z12GR delivers robust outdoor surveillance capability with minimal environmental or mechanical compromise. Recommended for integrators specifying resilient, bandwidth-conscious 8MP solutions in exposed and high-risk locations.
