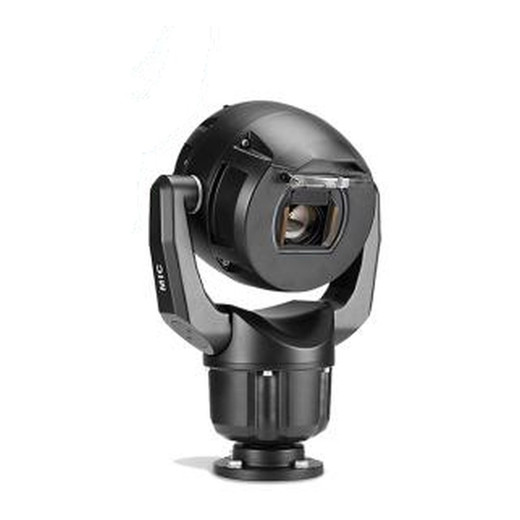

Bosch MIC-7604-Z12BR MIC inteox 7100i 8MP Black Indoor PTZ Camera

Bosch MIC-7604-Z12BR Varifocal Network Camera

Overview

The Bosch MIC-7604-Z12BR is an 8MP fixed-installation network camera engineered for outdoor and demanding indoor deployments requiring vandal resistance and environmental durability. Built on PoE (802.3af) power delivery, the MIC-7604-Z12BR supports flexible mounting options and delivers day/night imaging through integrated IR capability. This camera compresses video efficiently using H.265, H.264, and MJPEG codecs, making it suitable for bandwidth-constrained and high-retention surveillance architectures.

Key Features

• 8MP Resolution: Delivers detailed imaging at 8 megapixels for identification and forensic analysis in medium to large coverage areas.
• PoE (802.3af) Power: Single cable deployment reduces installation labor and infrastructure complexity; compatible with standard PoE injectors and powered network switches.
• Varifocal Lens: Adjustable focal length enables field optimization without requiring multiple camera SKUs, supporting dynamic scene composition during deployment and maintenance.
• H.265, H.264, and MJPEG Compression: Multi-codec support enables compatibility with diverse VMS platforms and allows codec selection based on bandwidth and storage constraints.
• IP67 Environmental Rating: Sealed against dust and water ingress, rated for submersion up to 1 meter for 30 minutes; suitable for outdoor, high-moisture, and washdown environments.
• IK10 Impact Resistance: Vandal-resistant construction withstands 20 joules of impact energy; designed for high-traffic, exposed, or unsecured mounting locations.
• Day/Night IR Capability: Integrated infrared illumination enables surveillance in darkness and low-light conditions; automatic sensor switching maintains imaging continuity across lighting transitions.
• Built-in Microphone: Audio capture supports two-way communication, incident verification, and supplementary event logging.
• Multiple Mount Options: Supports wall, ceiling, pole, and rack installation, providing flexibility for diverse site architectures and retrofit scenarios.

Integration and Deployment

The MIC-7604-Z12BR operates on standard ONVIF-compatible network infrastructure, integrating with mainstream VMS platforms including Bosch Video Management System (BVMS) and third-party systems supporting H.265 and H.264 streams. The camera's PoE requirement simplifies power distribution; installers should verify PoE injector or switch capacity (standard 802.3af budget: 15.4W per port). Varifocal optics allow on-site lens adjustment to match scene requirements without factory recalibration. IP67 and IK10 ratings eliminate need for additional housing or protective enclosures in most outdoor and vandal-prone applications, reducing total cost of ownership.

The combination of 8MP resolution, varifocal optics, and multi-codec support makes the MIC-7604-Z12BR well-suited for perimeter security, facility monitoring, parking structure surveillance, and retail environments where detailed capture and flexible lens adjustment provide operational advantage.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the Bosch MIC-7604-Z12BR in several outdoor facility deployments where environmental durability and vandal protection are non-negotiable. The IP67 and IK10 ratings eliminate auxiliary housing expenses, and the varifocal lens has consistently reduced field adjustments and SKU inventory at integration sites.

Technical Highlights:

• Power Efficiency: PoE (802.3af) operation at standard power budgets simplifies infrastructure; no auxiliary power supplies or conduit runs required.
• Imaging Flexibility: Varifocal lens and 8MP resolution allow single-camera solutions for scenes that might otherwise require multiple fixed cameras or higher sensor counts.
• Codec Options: H.265 support reduces bandwidth and storage load; H.264 and MJPEG fallback ensure compatibility with legacy or bandwidth-limited VMS deployments.

Deployment Considerations:

• Verify PoE budget on managed switches or injectors; 802.3af delivers 15.4W per port at the source, adequate for this model under standard conditions.
• Lens adjustment during installation is critical; varifocal cameras benefit from on-site focus and zoom optimization to minimize distortion and maximize detail capture.
• IR performance in IP67 housings can be affected by dome condensation; specify heated or anti-fog treatments if deployment occurs in high-humidity or temperature-cycling environments.

The MIC-7604-Z12BR represents solid mid-range performance for integrators seeking robust environmental protection and flexible optics in a single platform. Reliable choice for outdoor and high-abuse perimeter applications.
