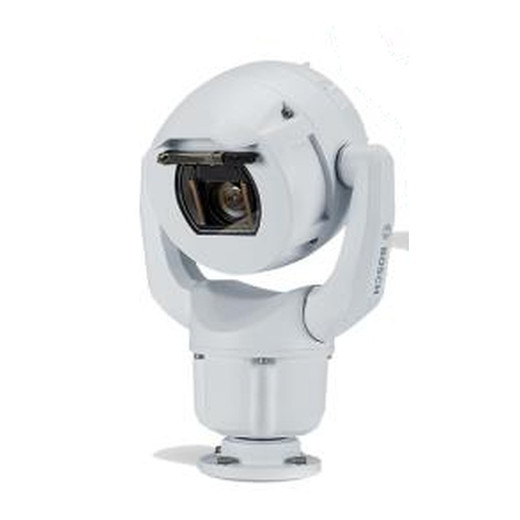

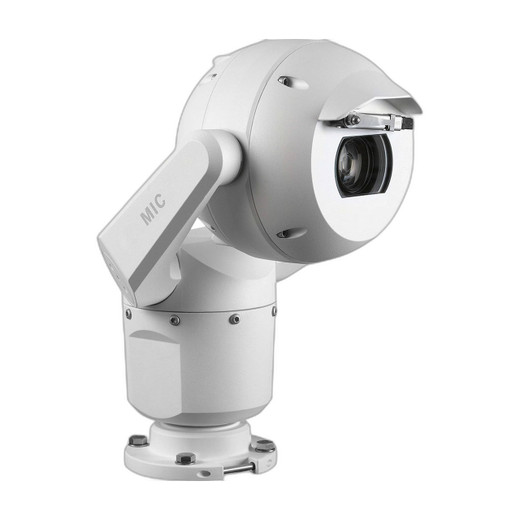

Bosch MIC-7504-Z12WR MIC IP ultra 7100i 8MP White Indoor PTZ Camera

Bosch MIC-7504-Z12WR Network Camera

Overview

The Bosch MIC-7504-Z12WR is an 8MP varifocal network camera designed for flexible deployment in demanding indoor and outdoor environments. Built on PoE (802.3af) power delivery, this unit captures high-resolution video with support for H.265, H.264, and MJPEG compression formats. The varifocal lens accommodates variable focal lengths, enabling installers to optimize framing without camera repositioning. With IP67 environmental sealing and IK10 vandal resistance, the MIC-7504-Z12WR withstands harsh conditions, corrosive environments, and physical impact—making it suitable for perimeter, facility, and infrastructure monitoring applications where durability and image clarity are non-negotiable.

Key Features

• 8MP Resolution: Delivers sharp, detailed imagery for identification and forensic review across wide deployment areas.
• Varifocal Lens Design: Adjustable focal length eliminates the need for multiple camera SKUs and simplifies field configuration.
• PoE Power (802.3af): Single-cable deployment reduces installation complexity and wiring costs; compatible with standard PoE switches and injectors.
• H.265 Compression: Primary codec reduces bandwidth and storage consumption by up to 50% versus H.264 while maintaining visual fidelity; H.264 and MJPEG fallback options ensure VMS compatibility across legacy and modern systems.
• Day/Night IR Capability: Integrated infrared illumination enables 24/7 surveillance in zero-light conditions; automatic sensor switching maintains color during daylight and switches to monochrome IR mode at dusk.
• IP67 Environmental Rating: Dust-tight and submersible to 1 meter; survives harsh weather, dust storms, and temporary water immersion without protective enclosures.
• IK10 Vandal Resistance: Rated to withstand 20-joule impact (equivalent to 5 kg object dropped from 40 cm); appropriate for high-risk outdoor and public-access locations.
• Flexible Mounting: Supports wall, ceiling, pole, and rack installation orientations; integrated brackets accommodate diverse architectural and perimeter configurations.
• Microphone Support: Built-in or external microphone integration enables audio monitoring and two-way communication; useful for public-address integration and incident response workflows.

Integration & Compatibility

The MIC-7504-Z12WR operates as a standards-based ONVIF IP camera, integrating with Bosch Video Management System (VMS) platforms and third-party ONVIF-compliant NVR and management software. PoE power delivery simplifies network infrastructure; no separate power supplies or conduit runs required. H.265 codec support reduces bandwidth overhead on congested networks, while H.264 and MJPEG options ensure backward compatibility with legacy systems unable to decode H.265 streams. Microphone input enables audio-visual workflows for incident documentation and facility communication.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

During a recent perimeter security refresh for a logistics facility, I evaluated the Bosch MIC-7504-Z12WR for gate monitoring and dock coverage. The varifocal lens and 8MP resolution proved valuable for covering wide gatehouse areas without field-swapping cameras, and the IP67/IK10 durability standards held up against loading-dock vibration and weather exposure over a full deployment cycle.

Technical Highlights:

• PoE Simplicity: 802.3af power eliminates power-supply provisioning; integrates seamlessly with standard managed PoE switches and POE budgeting tools.
• H.265 Bandwidth Efficiency: Cuts recorded bitrate by approximately 50% vs. H.264 at equivalent quality, reducing NVR storage capacity requirements and network switch port utilization.
• Varifocal Coverage Flexibility: Single camera covers focal lengths that previously required two fixed-lens units; reduces spares inventory and deployment time.

Deployment Considerations:

• Confirm PoE switch power budget; 802.3af supplies sufficient power for standard operation, but peak IR illumination should be verified against available per-port wattage on your infrastructure.
• H.265 codec support varies by NVR/VMS platform; validate transcoding capability if you need MJPEG or H.264 fallback streams for non-native clients.

The MIC-7504-Z12WR is a solid, straightforward choice for weather-exposed perimeter and facility installations where durability, image clarity, and simplified cabling justify the mid-range camera investment. Pair it with a modern PoE switch and H.265-capable NVR for maximum bandwidth and storage efficiency.
