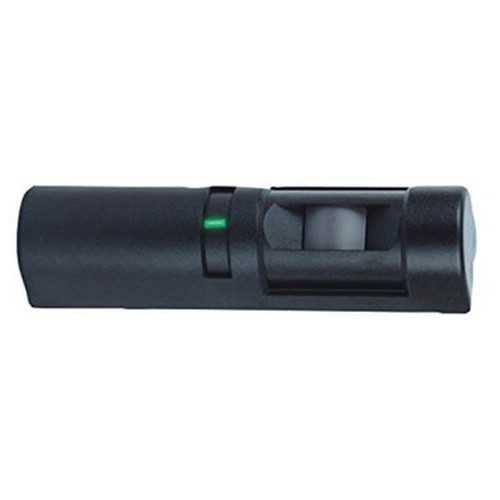

Bosch DS151I Request-to-Exit PIR Motion Sensor

Overview

The Bosch DS151I is a passive infrared (PIR) request-to-exit sensor engineered for hardwired integration into access control systems where reliable occupancy detection drives automated door unlock logic. Unlike video-based exit solutions, the DS151I delivers focused motion sensing without video storage overhead, privacy concerns, or analytics licensing. It mounts to wall or ceiling, depending on your doorway geometry and sightline requirements.

Request-to-exit detection remains a core function in secure facilities—server rooms, data centers, secure filing areas, and badge-controlled hallways all rely on it to signal when someone is egressing and trigger the unlock sequence. The DS151I handles this function deterministically: detect motion inside the exit zone, send a signal to the door controller, unlock fires. No wireless dependency. No battery management. No cloud sync latency.

Key Features

• Passive Infrared (PIR) Motion Detection: Senses changes in thermal radiation from moving bodies. PIR is inherently resistant to false triggers from environmental changes—sunlight shifts, HVAC cycles, or monitor glare won't cause nuisance activations the way some motion sensors do. For a request-to-exit function, this stability matters: you want reliable unlock signals, not doors swinging open at random.
• Dual-Mount Capability (Wall and Ceiling): Wall mounting positions the sensor directly above or beside an exit door frame, ideal when the doorway geometry doesn't leave overhead clearance or when you need a lower coverage angle. Ceiling mounting gives you an overhead vantage point across the entire egress zone, minimizing blind spots from furniture or equipment. Choose based on your specific door layout and traffic patterns.
• Wired Hardwired Connection: Direct integration to your access control panel's motion input. No wireless gateway, no mesh network, no battery replacement cycles. Hardwired means deterministic signal delivery—the door controller receives the motion trigger immediately, with no radio latency or dropout risk. In a security context, that reliability is non-negotiable.
• Compact Form Factor: Small footprint suits tight installation spaces—above door frames, in corner recesses, or alongside other RTE hardware. Doesn't bulk up your doorway aesthetic or interfere with ADA clearances.
• Light Gray Finish: Neutral color blends into standard commercial interiors without calling attention to the sensor itself. Helps maintain the visual profile of the space.
• PIR Sensing Optimized for Indoor Access Control Environments: The DS151I's sensitivity and coverage pattern are tuned for medium-range personnel detection near exit doors. It's not designed for outdoor perimeter surveillance or wide-open warehouse spaces—it's purpose-built for the controlled indoor geometry of a secured facility exit.

Deployment Considerations

Install the DS151I in a position where it has a clear, unobstructed view of the expected egress zone. Confirm the mounting location (wall or ceiling) before running conduit or wiring, to avoid rework. The sensor's coverage pattern assumes standard indoor lighting and room temperature. Verify that your access control panel supports wired PIR input and that the signal routing is configured correctly during commissioning.

Integrators should test the sensor after installation to confirm it reliably detects personnel crossing the exit threshold without false triggers. Sensitivity tuning may be necessary depending on doorway width, traffic speed, and ambient heat sources nearby. Once calibrated, the DS151I requires minimal maintenance—no lens cleaning or firmware updates like IP cameras, just periodic functional testing as part of your access control audit.

For more context on access control sensor selection and integration, consult the access control systems and sensors category for related devices and planning guidance.

Frequently Asked Questions

Q: Can the DS151I be wall-mounted above a standard single-leaf door?

A: Yes. Wall mounting is typical for installations directly above or adjacent to door frames. Ensure the sensor has clear sightline to the interior of the doorway where you expect motion.

Q: Does the DS151I require a separate power supply, or does it draw power from the access control panel?

A: The DS151I is wired directly to the access control panel's motion detection input. Power routing and supply requirements depend on your panel's design—verify with your panel documentation during design phase.

Q: What happens if the sensor detects motion after someone exits—will it trigger unwanted unlock cycles?

A: The door control logic, not the sensor, determines when an unlock signal is acted upon. Modern access control systems ignore additional motion triggers after an unlock event has fired, to prevent re-triggering. Confirm your controller's logic during commissioning.

Q: Is the DS151I suitable for outdoor exit detection, such as a loading dock door?

A: No. The DS151I is designed for indoor environments. Outdoor request-to-exit applications require sensors rated for temperature extremes and weather exposure—consult the Bosch catalog for outdoor-rated alternatives.

Q: Can the DS151I output a signal to multiple door controllers simultaneously?

A: The sensor itself provides a single motion output. If you need to trigger multiple doors, the access control logic (usually in the main panel) routes that single input to multiple unlock commands. Confirm your panel's input/output architecture.

Q: How often should the DS151I be tested or recalibrated?

A: Functional testing as part of your routine access control audit is sufficient—typically annual or per your facility's security policy. Recalibration is rarely needed unless the doorway layout changes or sensitivity issues emerge.

Ted Perry

Perspective based on aggregated and affiliated engineering team experience.

I've specified the Bosch DS151I in multiple access control installations over the years, and it remains a solid, low-friction choice for reliable request-to-exit detection. The PIR technology avoids the complexity and cost overhead of video-based exit sensors—no analytics licensing, no storage burden, no privacy reviews with legal. The DS151I does one thing: detects motion in the exit zone and signals the door controller. For that narrow use case, it's dependable.

Technical Highlights:

• Passive Infrared Sensing: PIR eliminates false triggers from ambient environmental shifts—lighting changes, HVAC cycles, monitor glare. In secure facilities where you need reliable unlock signals and minimal nuisance activations, that stability is worth the trade-off against broader-range video analytics.
• Dual-Mount Flexibility (Wall and Ceiling): Your doorway geometry dictates the install. Ceiling mounting gives overhead coverage of the exit zone; wall mounting positions the sensor directly at the point of egress. Choose based on sightline and existing hardware layout. This flexibility saves rework and costly conduit routing.
• Hardwired, Deterministic Integration: Direct wired connection to the access control panel means no wireless dropout risk, no latency, no battery management cycles. In a security context, deterministic signal delivery is non-negotiable—the unlock command executes immediately when motion is detected.

Deployment Considerations:

• Commissioning and Sensitivity Tuning: After installation, test the sensor in situ to confirm reliable detection across the expected egress threshold. Sensitivity may need adjustment depending on doorway width, expected traffic speed, and nearby heat sources (sunlight, ductwork, equipment). This is a one-time task—done correctly, the sensor requires minimal maintenance.
• Gotcha: Verify Your Panel's Input Architecture: The DS151I outputs a single motion signal. Confirm that your access control panel's motion detection input is available and correctly wired before ordering. Some older panels have limited input capacity; some newer controllers route PIR inputs through edge logic before firing unlock commands. Check the wiring diagram.

The DS151I excels in controlled indoor access control environments—server room exits, badge-controlled hallways, secure storage areas—where you need rock-solid occupancy sensing without video overhead. Deploy it where the doorway layout permits clear mounting and unobstructed sightline. Avoid it outdoors or in high-traffic public areas where you might benefit from broader environmental monitoring or video forensics.
