Self-Storage Camera Placement Guide: Corridors and Gate
Self-storage placement is corridor-coverage and gate-LPR first. This guide walks through practical placement with specifications.
Bottom Line
Corridor cameras at 9-10 ft, spaced 80-120 feet along corridor axis. Gate LPR at 8-10 ft, 15-30 degrees off vehicle path. Perimeter bullets at 12-15 ft every 100-150 ft. Office discreet at 9-10 ft.
Our team deploys self-storage surveillance regularly.
Best For
- Self-storage operators
- Integrators
- Multi-facility operators
Not For
- Residential
- Commercial office
- Warehouse
In This Guide

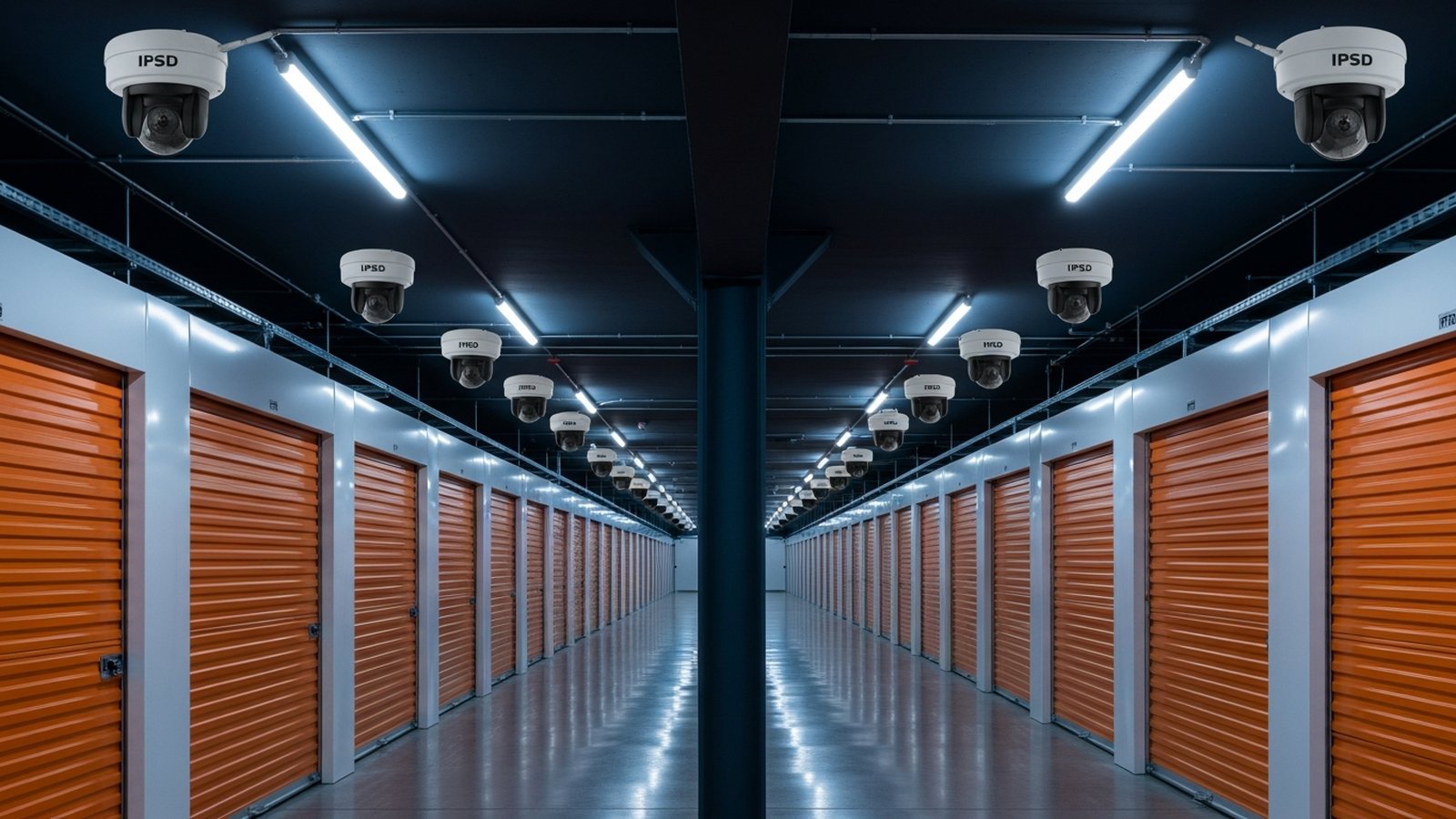

Unit Corridor Placement
Spacing: 80-120 feet between cameras. Closer spacing if corridors exceed 10-12 feet wide.
Mount height: 9-10 feet on corridor support beam or wall.
Angle: Along the corridor axis (not across). Captures anyone walking past.
Indoor vs outdoor corridor: QND-7082R indoor dome for climate-controlled; ANO-L7012R outdoor bullet for covered-but-exterior corridors.
Lighting coordination: Motion-triggered corridor lighting should be on during camera active hours. Test camera performance during the dark-to-light transition.
T-intersections and corridor merges: One camera per leg of the T.
Gate and Keypad Placement
Entry gate LPR: XNO-6120R/LPR mounted 8-10 feet at the lot entry, angled 15-30 degrees off the vehicle path. Captures 5-35 MPH at 15-45 foot capture distance.
Keypad camera: One camera covering the keypad itself. Captures whoever is entering the code.
Exit gate LPR (if separate): Second LPR camera covering exit traffic.
Lighting at gate: Well-lit gate area improves LPR accuracy. Coordinate with facility electrical.
Mount considerations: Gate cameras are the single most-impacted position by vehicle contact; consider additional mount reinforcement.
Perimeter and Exterior
Perimeter fence: ANO-L7012R outdoor bullet every 100-150 feet of fence line. Mount 12-15 feet on fence-post or freestanding pole.
Dumpster and service areas: One outdoor bullet per area.
Roll-up dock and loading zone: One camera covering the dock exterior; one covering the dock-to-corridor transition.
Back perimeter (if no fence): Cameras along the property edge facing outward to capture approaching traffic.
Lighting: Motion-triggered exterior lighting at perimeter positions.
Office and Tour Path Placement
Rental office: One QND-6010R covering the lobby and counter area.
Tour path entry: Camera covering the entry to the unit tour path.
Sign-up / rental desk: Discreet camera covering customer side.
Rental office exterior: Camera covering the office entry from the parking area.
Common Self-Storage Placement Mistakes
Corridor spacing over 120 feet. Leaves blind spots. Tighten spacing.
No LPR at gate. Common mistake; adds vehicle-tracking blind spot.
Perimeter cameras too widely spaced. Use 100-150 foot spacing, not 200+.
Camera across corridor instead of along. Wastes pixels on unit doors.
No dumpster coverage. After-hours loitering and vandalism.
Budget cameras at gate LPR. LPR needs quality optics and frame rate. Do not substitute a general outdoor camera.
No camera-to-management-system integration. Missed opportunity for audit trail.
Recommended Cameras by Self-Storage Position
Cameras matched to placement scenarios.
Hanwha
Hanwha QND-7082R 4MP Indoor IR Dome Camera
QND-7082R
80-120 ft spacing at 9-10 ft mount.
Hanwha
Hanwha ANO-L7012R 4MP Wide-Angle Low Light Outdoor Bullet IP Camera
ANO-L7012R
Covered exterior corridor at 9-10 ft.
Hanwha
Hanwha XNO-6120R/LPR 2MP License Plate Recognition Camera
XNO-6120R/LPR
8-10 ft, 15-30 deg off-axis.
Hanwha
Hanwha ANO-L7012R 4MP Wide-Angle Low Light Outdoor Bullet IP Camera
ANO-L7012R
12-15 ft on fence post.
Hanwha
Hanwha QND-6010R 2MP Network IR Dome Camera
QND-6010R
Budget 2MP for office and tour path.
Also Consider
Premium LPR for difficult conditions.
Hanwha
Hanwha PNB-A9091RLPH 4K Outdoor AI IR LPR Box IP Camera Kit
PNB-A9091RLPH
4K AI LPR for hard lighting conditions.
Frequently Asked Questions
What's the right corridor camera spacing?
80-120 feet between cameras. Wider leaves blind spots; closer is unnecessary.
Where should gate LPR be placed?
8-10 feet mount, angled 15-30 degrees off vehicle path. Handles 5-35 MPH.
Do we need cameras at the keypad?
Recommended. Captures whoever enters the code; supports identification during disputes.
What mount height for perimeter cameras?
12-15 feet on fence post or pole, angled to capture approaching traffic.
Should corridor cameras be along or across the corridor?
Along. Along-corridor captures anyone walking past; across wastes pixels on unit doors.
