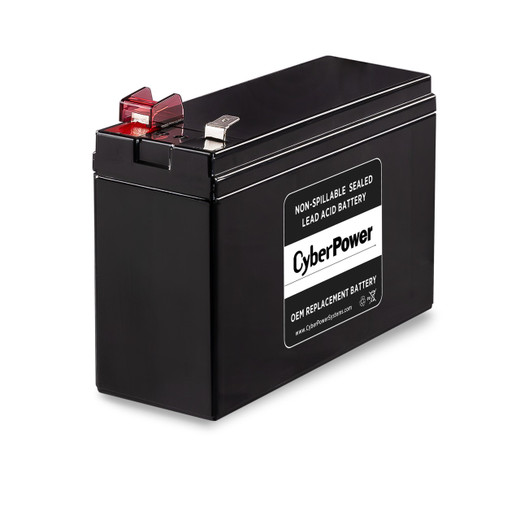

CyberPower APCRBC154-CP Sealed Lead-Acid Backup Battery
Overview
The CyberPower APCRBC154-CP is a 12V 5Ah sealed lead-acid battery cartridge designed as a direct replacement for compatible UPS systems in surveillance, access control, and small-footprint commercial deployments. At 4.0 lbs and compact dimensions (1.97" × 3.98" × 5.94"), this unit fits tight mounting spaces without sacrificing reliable standby capacity. The sealed construction eliminates maintenance and fluid-leakage concerns — a real advantage in 24/7 monitoring environments where you cannot afford downtime for battery servicing.
Key Features
- 12V 5Ah capacity: Provides 60Wh of stored energy. In practice, this means 1–2 hours of runtime at light loads (typical for POE switches, access readers, or small NVR setups drawing 30–50W), or 30–60 minutes at higher loads (500W class). The exact runtime depends on your actual load — heavier draws deplete faster.
- Sealed lead-acid chemistry: No electrolyte maintenance, no water top-ups, no acid spill hazard. This is critical in cabinet or wall-mounted installations where leakage can damage electronics or cable trays below.
- Operating temperature range 32–104°F (0–40°C): Suitable for indoor commercial and warehouse environments. If your site routinely exceeds 40°C (think unventilated electrical closets in summer), runtime will degrade — sealed lead-acid performs best between 68–77°F.
- Operating humidity 0–90% non-condensing: Sealed design handles humid camera rooms and outdoor shelter boxes without corrosion risk, provided you avoid actual water immersion or condensation pooling on terminals.
- 2-Year Limited Warranty: Covers defects in manufacturing and materials. Standard industry coverage for replacement batteries — sufficient for budget-cycle refresh in surveillance deployments, though not a guarantee against early fade due to overcharging or deep-discharge cycling.
- Compact footprint (4.0 lbs, 1.97" W × 3.98" H × 5.94" D): Fits inside standard rackmount UPS chassis and compact cabinet setups where a larger 7Ah or 9Ah battery would not. Weight is light enough for wall or shelf mounting without additional bracing.
Integration & Compatibility
The APCRBC154-CP is a drop-in replacement for CyberPower UPS systems that use this battery cartridge — check your UPS model documentation (typically printed on the unit or available in the manual) to confirm compatibility before ordering. This battery does NOT work with alkaline AA/AAA consumer backups or gel-cell alternates; it is strictly a sealed lead-acid unit for CyberPower-compatible chassis.
Common surveillance deployments using this battery include small commercial NVRs with local 4–8 POE camera feeds, access control panels with 1–2 readers, and network-attached UPS systems protecting warehouse environmental sensors or door strike power. If you are running a 16+ channel NVR or powering heavy loads (inkjet label printers, large industrial fans), you will need a larger UPS or a second battery cartridge in series — contact your integrator to size the system properly.
What's in the Box
The APCRBC154-CP arrives as a single replacement battery cartridge, ready to install into your compatible UPS chassis. No cables, connectors, or installation hardware are included — the cartridge mounts directly into the battery cavity using the existing bracket and terminal contacts inside your UPS unit.
Frequently Asked Questions
Q: What is the runtime on the APCRBC154-CP at full load?
A: Sealed lead-acid runtime depends on load wattage. At 50W, expect 45–60 minutes; at 100W, roughly 20–30 minutes; at 200W or higher, 10–15 minutes or less. These are rough estimates — actual runtime varies with battery age, temperature, and charger float voltage. Test your specific system under controlled load before relying on a critical circuit.
Q: Can I use the APCRBC154-CP in a non-CyberPower UPS?
A: No. This cartridge is designed exclusively for CyberPower UPS chassis that use this form factor and terminal configuration. Installing it in an incompatible system risks incorrect charging, damage to the battery, or system failure. Always verify your UPS model number matches the compatibility list before purchase.
Q: How long does the APCRBC154-CP typically last before replacement?
A: Sealed lead-acid batteries typically retain 80% capacity after 3–5 years in float charge (constant trickle charging on standby). Full replacement cycles (discharge-then-recharge) degrade them faster. In a surveillance UPS used mainly for power-loss backup, expect 4–7 years of useful life before capacity drops below 50%. Temperature and maintenance cycles affect longevity significantly.
Q: Is the APCRBC154-CP recyclable?
A: Yes. Sealed lead-acid batteries are fully recyclable — lead plates, acid, and plastic housing are all recovered in industrial recycling programs. When end-of-life replacement is needed, contact your local hazardous waste handler or battery recycler. Many municipalities accept lead-acid batteries at e-waste collection sites.
Q: What temperature conditions degrade the APCRBC154-CP?
A: Operating above 104°F (40°C) reduces effective capacity and accelerates internal corrosion. Below 32°F (0°C), capacity also drops temporarily (though it usually recovers when warm). Sustained heat is the primary enemy — if your UPS sits in an unventilated closet or hot rack, consider adding airflow or thermal management to keep the battery below 95°F for maximum lifespan.
Q: Does the APCRBC154-CP work with PoE switches?
A: Only if the PoE switch is powered by a compatible CyberPower UPS system that uses this battery cartridge. The battery itself does not directly power a switch — it backs up the UPS unit, which then continues supplying clean, regulated power to the switch and attached cameras during a mains outage.
The APCRBC154-CP is the workhorse replacement for surveillance UPS installs where you need predictable, maintenance-free backup without overspec'ing the cabinet. At 5Ah and 12V, it sits right at the sweet spot for small-to-medium commercial surveillance systems — enough reserve to gracefully power down a network recorder and a handful of POE cameras, or keep an access reader and door strike running through a brief utility fault. The sealed design means no acid checking or fluid leakage risk, which saves real money on site visits and avoids the mess of corroded cable trays.
Technical Highlights:
- 60Wh stored energy (12V × 5Ah): Translates to roughly 1–2 hours of light backup (30–50W typical for POE switches and small NVRs) or 30–60 minutes at moderate load (100–150W). That window is usually enough for orderly shutdown or failover to cellular backup.
- Sealed lead-acid chemistry: Zero maintenance versus vented lead-acid means you don't touch this battery once it's installed. No water-level checks, no acid spill procedures — it just floats on trickle charge inside the UPS until needed. In a cabinet where downtime costs money, this is the right choice.
- Operating temperature margin 32–104°F (0–40°C): Most indoor commercial sites stay inside this range. Watch unventilated electrical closets in hot climates — if ambient exceeds 40°C regularly, capacity drops and lifespan shortens. Ideally, keep the UPS below 95°F with some airflow.
Deployment Considerations:
- Verify CyberPower UPS model compatibility before purchase — this cartridge is form-factor and terminal-specific. Forcing it into an incompatible chassis causes charging faults and early failure.
- Runtime degrades with age and temperature cycling. Test under actual load (your specific NVR + cameras + readers) before relying on it for a critical mission. A 4-year-old battery will deliver noticeably less runway than the factory spec.
The APCRBC154-CP makes sense for retail surveillance networks, warehouse access-control backups, and small commercial NVR sites where graceful shutdown or brief holdover is the goal — not extended runtime. If you need 4+ hours of continuous operation, you need a larger capacity UPS or a second battery module in parallel.
