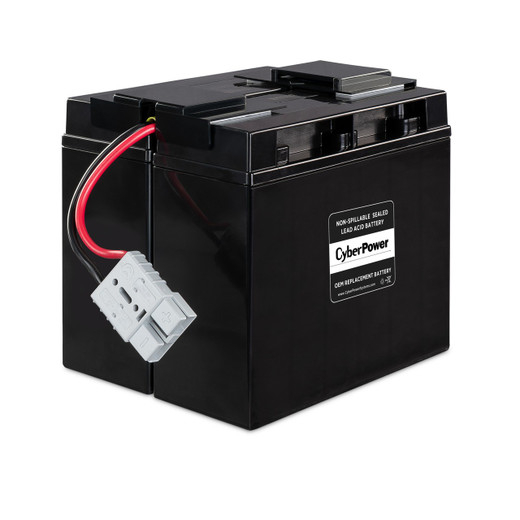

CyberPower RBC7-CP 12V 18Ah Sealed Lead-Acid UPS Battery
Overview
The RBC7-CP is a 12V/18Ah sealed lead-acid replacement battery cartridge designed to restore backup power to UPS systems that have degraded or failed internal batteries. This is a genuine sealed lead-acid battery—not a generic aftermarket substitute—engineered to match the discharge characteristics and footprint of original CyberPower UPS installations. If your surveillance system, retail point-of-sale hardware, or small-to-medium business infrastructure relies on a CyberPower UPS, the RBC7-CP delivers the amp-hour capacity and chemistry your existing system was designed for.
Key Features
- 12V/18Ah sealed lead-acid chemistry: 18 amp-hour capacity provides sustained power during grid loss—enough runtime to gracefully shut down networked surveillance recorders, access control panels, and network switches without data corruption. Sealed construction prevents acid leakage and eliminates maintenance requirements.
- User replaceable: Cartridge design allows trained technicians to swap the battery without specialized tools or extended downtime. No factory service call required when battery life is exhausted, lowering total cost of ownership over a 5-to-10-year surveillance deployment.
- Leak-proof casing: Sealed construction means no acid spill hazard in your server rack, equipment closet, or control room—critical for installations where battery failure could damage adjacent electronics or create an environmental cleanup liability.
- Operating temperature range 32–104°F (0–40°C): Performs reliably in climate-controlled data centers and unheated warehouse backup rooms. Outside this band (below freezing or above 104°F), battery discharge rate and lifespan degrade—so plan battery sizing conservatively if your UPS sits in an uninsulated space.
- Humidity tolerance 0–90% RH: Sealed construction handles humid equipment rooms without condensation-related corrosion or electrical leakage paths. Does not require a dry-room environment.
- 2-year limited manufacturer warranty: Covers manufacturing defects in materials and workmanship. Check your specific UPS model documentation to confirm the RBC7-CP is the correct replacement—compatibility is model-specific, not universal across the CyberPower line.
Physical and Installation Considerations
The RBC7-CP measures 6.0 × 6.8 × 7.2 inches (W×H×D) and weighs 21.5 lbs. This footprint is designed for standard 19-inch rack-mount UPS chassis and wall-mounted units. Verify mounting orientation and connector polarity against your UPS documentation before installation—reversed polarity will damage the UPS control board. The battery ships at 27.4 lbs (including packaging) and should be stored in a cool, dry location until deployment. Do not allow the battery to sit discharged for extended periods; a deep discharge cycle can reduce lifespan.
Integration & Compatibility
The RBC7-CP is a direct replacement for CyberPower UPS systems that originally shipped with this cartridge model. It is not a universal UPS battery. Before ordering, cross-reference your UPS model number against CyberPower's battery replacement tool or product documentation to confirm compatibility. Mixing battery types (different amp-hour ratings or chemistries) in a multi-battery UPS system can cause uneven discharge and accelerate failure in all batteries—always replace batteries as a matched set if your UPS has multiple cartridges.
What's in the Box
- 1x RBC7-CP 12V/18Ah sealed lead-acid battery cartridge
Frequently Asked Questions
Q: What is the warranty period for the RBC7-CP?
A: The RBC7-CP carries a 2-year limited manufacturer warranty covering defects in materials and workmanship. The warranty does not cover battery failure due to improper installation, inadequate maintenance, operation outside the specified temperature range (32–104°F), or use in a UPS model for which it is not designed.
Q: How do I know if the RBC7-CP is compatible with my CyberPower UPS?
A: Check your UPS model number in the CyberPower product documentation or use the CyberPower battery replacement tool on their website. The RBC7-CP is designed for specific UPS models; installing it in an incompatible unit can damage the UPS power board. Never assume compatibility based on physical size alone.
Q: Can I replace a single battery cartridge if my UPS has multiple batteries?
A: No. If your UPS contains multiple battery cartridges, replace all of them together as a matched set. Mixing new and aged batteries causes uneven discharge and accelerates failure in the entire bank. Single-battery replacement is safe only if your UPS contains one cartridge.
Q: What is the expected lifespan of the RBC7-CP?
A: Sealed lead-acid batteries typically deliver 3–5 years of service in standby (float-charge) duty, assuming operation within the specified temperature range (32–104°F). Lifespan shortens significantly if stored or operated outside this band. Frequent deep discharge cycles and high ambient temperatures reduce cycle life.
Q: Is the RBC7-CP user-replaceable, or do I need a technician?
A: The RBC7-CP is designed for user replacement by trained technical staff. The cartridge design allows quick disconnection and reconnection without special tools. However, you must follow the UPS manufacturer's instructions carefully—incorrect polarity or improper seating will damage the UPS. If you are uncomfortable working with UPS equipment, contact a qualified integrator.
Q: What happens if I store the RBC7-CP for an extended period before installation?
A: Store the battery in a cool, dry location at room temperature (around 68°F). Avoid storage below 32°F or above 104°F. Before installation, verify that the battery voltage is within the expected range using a multimeter. A deep discharge (battery left unused for months without trickle charging) can reduce lifespan and void the warranty.
The RBC7-CP is a straightforward sealed lead-acid replacement for aging CyberPower UPS systems in surveillance and retail environments. An 18Ah capacity at 12V gives you roughly 2–4 hours of runtime depending on your load profile—enough time to gracefully shut down networked cameras and recorders without data loss when the grid fails. I see most sites running these in single-cartridge form factors mounted in equipment closets or behind POS terminals.
Technical Highlights:
- 12V/18Ah sealed lead-acid: 18 amp-hours is sufficient for small-to-medium surveillance clusters (4–8 cameras) or retail hardwired systems. More capacity than a smaller 7Ah cartridge, less than a 24Ah variant—the middle-ground battery for most commercial surveillance UPS installations.
- User-replaceable cartridge design: Swap the battery yourself without factory service. Reduces maintenance downtime to under 10 minutes if you follow the UPS manual. No technician trip charge.
- Operating temperature 32–104°F (0–40°C): Covers standard climate-controlled indoor environments. Outside this window—basement storage below 32°F or unventilated attics above 104°F—battery performance drops and warranty voids. Plan your UPS placement accordingly.
- Leak-proof sealed construction: No acid spill risk in racks next to network switches or surveillance recorders. This matters when a battery fails catastrophically and you don't have a containment plan.
Deployment Considerations:
- Verify model compatibility before purchase. The RBC7-CP fits specific CyberPower UPS chassis; installing it in the wrong unit will damage the power board and void warranty. Cross-reference against the battery replacement tool on CyberPower's site.
- If your UPS has multiple cartridge slots, replace all batteries together—never mix old and new. Uneven charge/discharge kills batteries faster and can trigger unexpected UPS shutdown.
- Store new batteries at room temperature (68°F). Do not leave them sitting in a hot warehouse or unheated loading dock for months—lifespan degrades fast. A quick voltage check with a multimeter before installation saves you from installing a half-dead battery.
The RBC7-CP is the right choice for replacing a failed battery in an existing surveillance or retail UPS system where model compatibility is confirmed and the load profile is modest (under 500W sustained). It is not a universal battery—confirm your UPS model before ordering.
