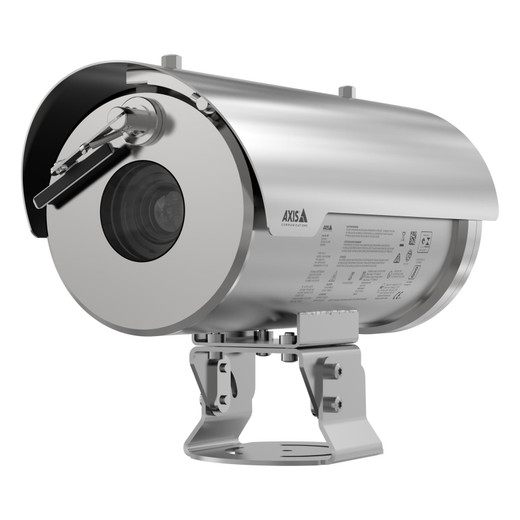

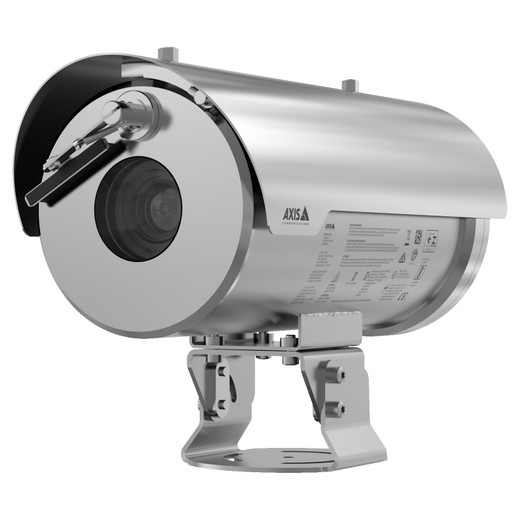

Axis XFQ1656 4MP Explosion-Protected IP Camera
The Axis XFQ1656 is a high-performance 4MP explosion-protected IP camera engineered for hazardous industrial, offshore, and onshore environments where safety certification is non-negotiable. Built with stainless steel construction and certified for Class I/II/III Division 1 and Zone 1/21 compliance, this camera delivers reliable surveillance in the most demanding applications while maintaining superior image quality and advanced security features.
Key Features
- 4MP resolution at 2688×1512 pixels, up to 60 fps for detailed forensic-grade footage
- Explosion-proof design certified for hazardous area deployment
- Lightfinder 2.0 technology for true-color imaging in extremely low light (0.05 lux)
- Forensic WDR for balanced image capture in mixed lighting conditions
- Deep learning-based edge analytics including smoke detection and AXIS Object Analytics
- Motorized zoom lens (3.9–10 mm) with remote focus and zoom capability
- IP66-rated stainless steel enclosure protects against dust, salt spray, and washdown
- PoE Class 6 powered with secure boot, TPM, and signed firmware
- Zipstream technology reduces bandwidth and storage requirements
- IR night vision with Motion JPEG and H.264/H.265 video compression
Technical Highlights
Optical & Imaging: The 1/1.8-inch CMOS sensor with 81–47° horizontal field of view delivers exceptional clarity across wide monitoring zones. Lightfinder 2.0 ensures color detail even at 0.05 lux, while Forensic WDR handles challenging backlit or mixed-light scenes typical of industrial facilities.
Power & Connectivity: PoE Class 6 delivery simplifies installation in hazardous areas where power infrastructure must be minimal and controlled. Wired connectivity ensures reliable, interference-free operation critical to safety systems.
Security & Compliance: Secure boot, TPM, and signed firmware protect against unauthorized access. The stainless steel housing with IP66 rating withstands washdown, salt spray, and extreme weather exposure required in offshore and chemical processing plants.
Analytics & Intelligence: Pre-installed smoke detection and AXIS Object Analytics enable perimeter monitoring and restricted-area alerts at the edge, reducing reliance on external servers and improving response time in emergency situations.
Applications
Ideal for petrochemical plants, gas facilities, mining operations, offshore platforms, pharmaceutical manufacturing, grain handling facilities, and any regulated environment requiring certified hazardous-area surveillance. The combination of 4MP resolution, low-light performance, and edge analytics makes it suitable for both continuous monitoring and forensic investigation.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The XFQ1656 represents Axis's commitment to safety-critical applications where regulatory compliance and reliability are non-negotiable. The explosion-proof certification eliminates a major procurement barrier for hazardous-area projects, while 4MP resolution at 60 fps strikes an optimal balance between image detail and bandwidth efficiency. The combination of Lightfinder 2.0 and Forensic WDR is particularly valuable in industrial settings where lighting is inconsistent and forensic evidence preservation is critical.
PoE Class 6 delivery over a single cable simplifies installation in intrinsically safe circuit designs. The edge-based analytics—especially smoke detection—add proactive safety value beyond passive recording. For organizations managing hazardous facilities, this camera eliminates the complexity of sourcing separate compliance and imaging solutions.
