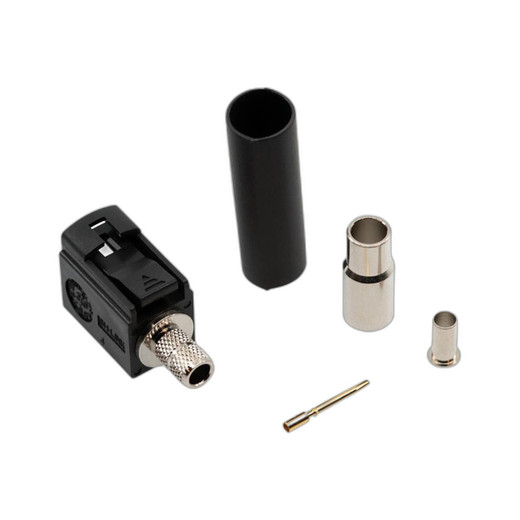

Axis 02469-021 FAKRA Connector Kit for TU6005 Plenum
Overview
The Axis 02469-021 is a 10-pack of FAKRA connectors purpose-built for Axis TU6005 plenum-rated coaxial cables. If you're deploying surveillance in environments where plenum-rated cable is mandated — data centers, HVAC return air plenums, suspended ceilings with active air circulation — these connectors ensure your cable runs meet fire code and airflow safety requirements without interruption or signal loss.
Key Features
- FAKRA Connector Type: FAKRA connectors provide secure, repeatable mating cycles (rated for thousands of insertions) and are widely used in coaxial video distribution. This matters because unreliable connectors lead to intermittent video loss and field troubleshooting — FAKRA's design minimizes both.
- Plenum-Rated Design: Compliant with plenum fire and smoke standards, these connectors are safe for installation in air-handling spaces — critical where building code enforcement is strict. Non-plenum connectors in plenum spaces create fire hazard and code violations that will fail inspection.
- Compatible with TU6005 Cables: Engineered specifically for Axis TU6005 plenum coaxial cable, ensuring proper impedance matching and signal integrity. Mismatched connectors or cables degrade analog or digital video quality; these eliminate that variable.
- Bulk 10-Pack Quantity: Enough for a multi-run installation or field repairs. Single connectors force repeat orders; bulk packs reduce procurement friction and ensure you have spares for emergency repairs or future camera relocations.
Integration & Compatibility
The 02469-021 connectors are designed for use with Axis IP cameras and surveillance equipment that accept FAKRA inputs, particularly in applications requiring plenum-rated cable and connectors. Verify camera or equipment input compatibility with FAKRA connectors before ordering — FAKRA is common in hybrid or coaxial video systems but not universal across all Axis models. Check your camera's datasheet or contact the equipment vendor if unsure.
What's in the Box
- 10x Axis TU6006 FAKRA Connectors
- Compatibility Information Sheet
When to Choose a Different Connector Type
If your installation does not require plenum rating (e.g., runs through conduit in non-air-handling spaces), standard non-plenum FAKRA connectors or alternative connector types may be more cost-effective. If your equipment uses different connector standards (e.g., BNC, SMA, or proprietary connectors), these FAKRA connectors will not be compatible — verify connector type on your equipment first.
Frequently Asked Questions
Q: Are these connectors pre-terminated, or do I need to terminate them myself?
A: Based on the evidence, these are bare connectors intended for termination onto the end of TU6005 cable. You will need basic coaxial termination tools or professional installation support if you do not have crimping or compression equipment on hand.
Q: Can I use these connectors with non-Axis plenum cables?
A: These connectors are engineered for TU6005 plenum cable and may not be compatible with other plenum cables due to impedance and dimension variations. Mixing connectors and cables from different vendors can cause signal degradation or intermittent failures. Stick to Axis TU6005 cable for guaranteed performance.
Q: What building codes or standards do these connectors meet?
A: The connectors are plenum-rated, meaning they meet plenum fire and smoke standards required for installation in air-handling spaces. Your local fire marshal or building inspector will enforce which spaces require plenum-rated components. If your installation is in a suspended ceiling or HVAC return plenum, plenum-rated connectors are non-negotiable.
Q: Do I need plenum-rated connectors if I already have plenum cable?
A: Yes. Code requires both cable and connectors to be plenum-rated if installed in plenum spaces. A plenum cable terminated with a non-plenum connector creates a code violation because the non-plenum connector will off-gas under heat and potentially ignite.
Q: How many connector pairs do I need per camera?
A: That depends on your coaxial run architecture. A single video feed requires one connector pair (male and female). If you're running multiple coaxial lines or have a multi-camera plenum installation, calculate total runs and order accordingly. A 10-pack gives you flexibility for 5–10 complete connections plus spares.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The Axis 02469-021 connector kit is straightforward infrastructure — not flashy, but non-negotiable in plenum-rated deployments. The 10-pack quantity and FAKRA standard design make this a practical choice for multi-run installations or integrators who stock spares. The real value isn't in the connector itself; it's in compliance and eliminating code violations during inspection.
Technical Highlights:
- Plenum Fire Rating: Mandatory for suspended ceilings and HVAC return plenums. Non-plenum connectors in plenum spaces create code violations and fail building inspections — this eliminates that risk.
- FAKRA Connector Design: Rated for thousands of mating cycles, minimizing intermittent disconnections that plague unreliable connectors. Secure seating reduces field troubleshooting and emergency repairs.
- TU6005 Cable Compatibility: Engineered impedance match ensures signal integrity across coaxial runs. Mismatched connectors and cable introduce impedance discontinuities that degrade video quality, especially on longer runs or in analog video systems.
Deployment Considerations:
- Verify your camera or equipment actually accepts FAKRA connectors — not all Axis models use FAKRA. Check the equipment datasheet before committing to a connector type.
- Termination is manual (crimping or compression required). If your team lacks coaxial termination tools or experience, budget for professional cable termination or purchase pre-terminated cable assemblies instead.
- Plenum rating applies to both cable and connectors. A plenum cable with a non-plenum connector is a code violation — don't mix.
Best fit: multi-camera coaxial video deployments in data centers, facilities with strict plenum enforcement, or integrators who need bulk connector stock for field repairs and cable runs in air-handling spaces.
