Axis 02464-021 TU6001 3-Pin 3.81mm Connector 10-Pack

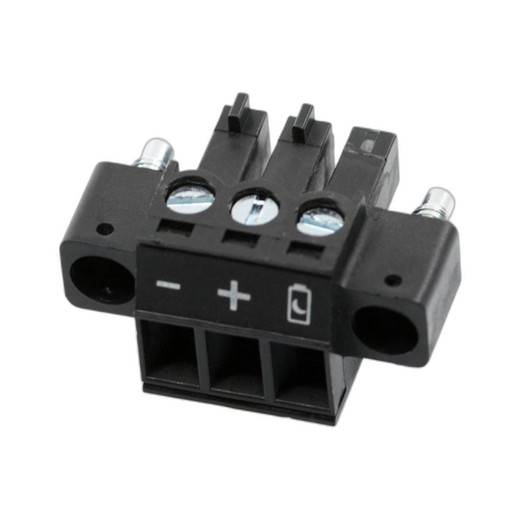

The Axis 02464-021 is a 10-pack of TU6001 3-pin 3.81mm connectors purpose-built for second-generation Axis F91 mobile surveillance systems. These connectors bridge DC power distribution on vehicle installations, enabling the F91 main unit to receive onboard power and manage battery shutdown protocols to prevent drain during periods of inactivity.
Key Features
- 3-Pin 3.81mm Connector Design: Standardized form factor ensures mechanical and electrical consistency across multiple vehicle installations — no ambiguity in polarity or fit. The 3-pin configuration carries both positive and negative DC power plus a logic signal line for shutdown commands, eliminating the need for separate signal wiring.
- 10-Unit Quantity: One pack supplies connectors for up to 10 vehicle-mounted F91 systems, ideal for fleet deployments or staged rollouts. Buying in bulk reduces per-unit cost versus sourcing individual connectors.
- DC Power Distribution on Mobile Platforms: Integrates with Axis F91 onboard power subsystems, allowing the F91 main unit to shut down after a user-defined idle period. This cutoff prevents continuous battery discharge when the vehicle is parked, extending operational uptime on the next deployment cycle.
- Cross-Connector Compatibility: Designed to work with Axis surveillance devices and ancillary components that employ the same 3.81mm connector standard. Verify pinout documentation before deployment to avoid reverse-polarity faults.
- Durable Contact Design: Gold-plated pins resist corrosion in vehicle environments (moisture, salt spray, temperature cycling). Mated pairs maintain low contact resistance over thousands of connect/disconnect cycles.
Integration & Compatibility
The 02464-021 is verified for use with Axis F91 second-generation main units deployed in mobile and fixed-vehicle surveillance installations. Confirm DC voltage and current specifications from your F91 power management documentation before ordering; incorrect voltage application will damage the F91 logic board.
These connectors are passive components — no firmware, software, or driver support required. Installation requires basic hand tools (typically a small flathead or Phillips screwdriver to secure the DC leads into the connector's pin block). Refer to the Axis F91 installation guide for wiring diagrams and pinout assignments.
When to Choose a Different Accessory
If your deployment uses first-generation Axis F91 units or non-Axis vehicle-mounted IP cameras, verify connector compatibility before purchase. Pinout and mating form factor vary across product generations. For fixed-site DC power distribution (non-vehicle installations), consider standard DIN-style or M12 connectors if your main unit supports them — they offer broader ecosystem support and spare parts availability. If you require shielded signal lines for high-EMI environments (near RF transmitters or industrial machinery), request technical specifications from Axis to confirm whether the TU6001 carries shielded pins.
Frequently Asked Questions
Q: Can I use the Axis 02464-021 connectors with first-generation Axis F91 systems?
A: No. The 02464-021 is designed exclusively for second-generation Axis F91 main units. First-gen systems use a different connector form factor. Verify your F91 revision before ordering.
Q: What is the maximum DC current rating for the TU6001 connector?
A: Consult the Axis F91 power management specification sheet and the TU6001 datasheet for current and voltage limits. Exceeding rated current will cause pin overheating and contact failure.
Q: Do I need any crimping tools or special equipment to install these connectors?
A: The 02464-021 uses a screw-clamp terminal design for DC leads. Standard hand tools (small screwdriver) are sufficient. No crimper or specialized equipment is required.
Q: Are these connectors weatherproof for outdoor vehicle-mount applications?
A: The connector itself has no IP rating. Protect the mated connector pair from direct spray and standing water using a shroud or enclosure. Consult the F91 installation manual for recommended environmental protection methods.
Q: What warranty applies to the Axis 02464-021?
A: Warranty terms are subject to regional distributor policy and Axis manufacturer support agreements. Contact your authorized Axis dealer for coverage details.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I see the 02464-021 as a straightforward but essential consumable for fleet-scale Axis F91 mobile surveillance deployments. The 10-pack volume makes sense — if you're fielding vehicles at scale, you'll burn through spares quickly during installation, troubleshooting, and field replacements. The 3-pin 3.81mm form factor is passive, so there's no firmware or configuration overhead; it's just a power and shutdown-logic shuttle.
Technical Highlights:
- 3-Pin Power + Logic Configuration: Carriers positive DC, negative ground, and a logic signal line for battery shutdown timing. Eliminates splicing or extra harness runs — a single mated pair handles both power distribution and F91 idle-shutdown commands, reducing wiring complexity in a vehicle bay.
- Gold-Plated Contacts: Corrosion resistance matters in vehicle environments (moisture, road salt, thermal cycling). Gold plating keeps contact resistance low through hundreds of connect/disconnect cycles — important if you're upgrading or servicing F91 units in the field.
- Screw-Clamp Terminal Blocks: No crimper required. DC leads secure with a flathead screwdriver, lowering the barrier to field installation and reducing technician training burden on a large fleet rollout.
Deployment Considerations:
- Verify that your F91 main units are second-generation; first-gen F91s use a different connector footprint. Mixing generations will result in a no-fit or reverse-polarity scenario — both bad outcomes in the field.
- The TU6001 itself has no IP rating; it relies on the F91 enclosure and a weather shroud to stay dry. In harsh salt-spray or high-humidity port environments, corrosion can still occur at the connector interface over time — include periodic contact inspection in your maintenance schedule.
- DC voltage and current limits are tied to your F91 power subsystem specs, not the connector alone. Overpowering a TU6001 won't trip protection — it'll just cook the F91 motherboard. Download the F91 power spec from Axis before installation.
The 02464-021 is a commodity item, but on a 50- or 100-vehicle fleet deployment, you'll be grateful to have spares on the shelf for field replacement and troubleshooting. Order a box or two extra beyond your vehicle count — they cost little and prevent supply-chain delays when a contact fails mid-deployment.
