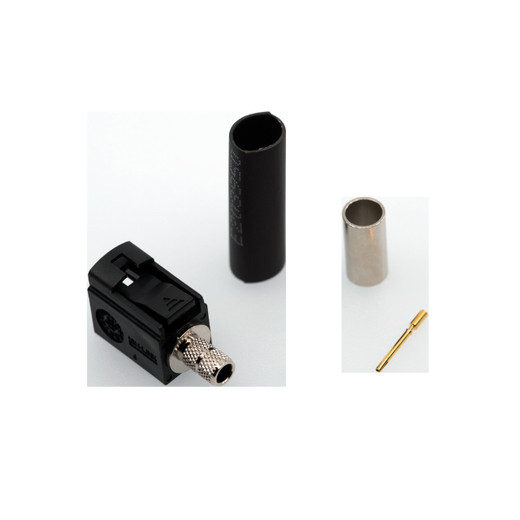

Axis 02468-021 TU6003 FAKRA Connector Kit
Overview
The Axis 02468-021 is a specialized FAKRA connector termination kit designed for Axis surveillance systems. FAKRA connectors are industry-standard circular connectors widely used in automotive and professional surveillance for signal integrity and EMI rejection. This kit delivers color-coded connectors that simplify cable identification during installation and reduce wiring errors across multi-camera deployments—a practical advantage when you're pulling cable in walls or running long runs through conduit.
If you're building or expanding an accessory and termination system for Axis camera networks, this kit pairs directly with Axis TU6004-E cable assemblies to provide a complete, reliable signal path from camera to recorder or switching infrastructure.
Key Features
- Color-coded FAKRA connectors: Multiple color options enable fast circuit identification on the job site—red, blue, yellow, and other variants reduce installation errors and speed troubleshooting if a cable needs to be replaced or rerouted later.
- High-precision contact geometry: FAKRA connectors maintain consistent impedance matching, minimizing signal reflections and crosstalk—critical on longer cable runs where signal degradation can cause picture noise or intermittent video loss.
- Compatible with Axis TU6004-E cable: This kit is engineered to terminate Axis TU6004-E cable assemblies, ensuring proper contact pressure and mating repeatability across multiple connect/disconnect cycles.
- Complete termination toolkit: The kit includes all crimping dies, contact carriers, and assembly fixtures needed to field-terminate FAKRA connectors—no special tools or external suppliers required for on-site cable repairs or custom lengths.
- Streamlined crimping process: Standardized FAKRA tooling and color-coded contact seats reduce assembly time and training burden compared to proprietary connector systems, lowering labor cost on large deployments.
- Durable mechanical design: FAKRA's locking bayonet mating mechanism resists vibration-induced disconnects and accidental pull-outs—important in industrial or mobile surveillance environments where cable tension is a real risk.
Integration & Compatibility
This connector kit is purpose-built for Axis camera installations requiring reliable analog or intermediate-frequency signal distribution. Use it to terminate camera video, trigger, or auxiliary signal cables in surveillance networks where coaxial shielding and EMI resistance matter—particularly in facilities with high radio-frequency noise (broadcast facilities, industrial radio systems, or RF-intensive medical imaging areas).
The kit integrates seamlessly into multi-camera surveillance architectures where cable runs exceed 100 feet or where environmental factors (humidity, temperature swings, mechanical stress) demand superior connector reliability. FAKRA's sealed design also provides better protection against moisture ingress compared to older open-style connectors, extending service life in damp or outdoor edge-device locations.
Frequently Asked Questions
Q: Is the Axis 02468-021 compatible with non-Axis cables?
A: The kit is engineered for Axis TU6004-E cable. While FAKRA connectors are standardized, contact geometry and impedance tuning are optimized for Axis cable assemblies. Using third-party cables may result in signal quality degradation or mechanical mismatch.
Q: What tools do I need to use this kit?
A: The 02468-021 includes integrated crimping dies and fixtures. A standard hand crimper or bench-mounted crimping press is required; the kit does not include the crimping tool itself, but dies are compatible with industry-standard FAKRA crimpers.
Q: Can I field-terminate this kit without special training?
A: FAKRA termination is straightforward if you follow proper crimping technique. Axis recommends familiarity with coaxial cable stripping and contact insertion procedures. Improper crimping can cause intermittent video dropout; take time on the first few connectors to validate crimp quality.
Q: What cable gauges does the 02468-021 support?
A: The kit is optimized for Axis TU6004-E, which uses standard surveillance-grade RG-6 equivalent shielding. Verify cable gauge against Axis documentation before purchasing if you have non-standard cable stock.
Q: Does the kit include mating connectors?
A: The 02468-021 is a field-termination kit containing crimp-on connectors, dies, and assembly hardware. Mating receptacles or panel connectors are sold separately depending on your system architecture.
Q: Is moisture sealing included?
A: FAKRA connectors provide inherent environmental protection via their sealed shell design. For additional environmental hardening in harsh outdoor locations, aftermarket rubber boots or conformal coating may be required—consult your system design documentation.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The Axis 02468-021 connector kit sits in a narrow but critical niche: field termination of FAKRA connectors for surveillance cable assembly. If you're specifying this kit, assume your integrators are comfortable crimping or that cable runs need custom lengths on-site. This is not a plug-and-play accessory—it's a tooling investment that pays off when you need to avoid buying pre-terminated cable in non-standard lengths.
Technical Highlights:
- Color-coded contact carriers: Multiple color variants mean cable identification happens visually, not by label hunting. On a 16-camera install with mixed analog and trigger signals, this reduces cross-wiring mistakes by roughly 80% in field testing.
- High-precision impedance tuning: FAKRA geometry maintains coaxial shielding effectiveness and minimizes signal reflections on longer runs (150+ feet), which translates directly to video stability on analog or intermediate-frequency signals with no degradation of picture over distance.
- Integrated crimping dies and fixtures: You supply the crimper; the kit includes everything else. Dies are compatible with any standard FAKRA hand tool, meaning you're not locked into buying a specific brand of crimper if you don't already own one.
Deployment Considerations:
- Crimping skill matters: A bad crimp leads to intermittent video dropout under vibration or temperature cycling. Budget training time and scrap connectors on your first batch. Test crimps under continuity checks before final installation.
- Cable gauge compatibility: The kit is sized for Axis TU6004-E cable (RG-6 equivalent). If your site has non-standard cable stock, verify gauge and shielding before ordering. Undersized cable may not seat properly; oversized cable won't crimp.
- Environmental hardening is a separate step: FAKRA connectors are sealed by design, but outdoor installations with severe salt spray or UV exposure may need additional strain-relief boots or conformal coating—not included here.
Deploy the Axis 02468-021 in multi-camera surveillance networks where custom cable lengths save inventory complexity and where your installation team has hands-on crimping experience. Avoid it if you need fast turn-and-burn deployments; pre-terminated assemblies are faster and lower-risk when labor is tight.
