Axis 02470-021 TU6002 Right-Angle SMA Adaptor 10-Pack
Overview

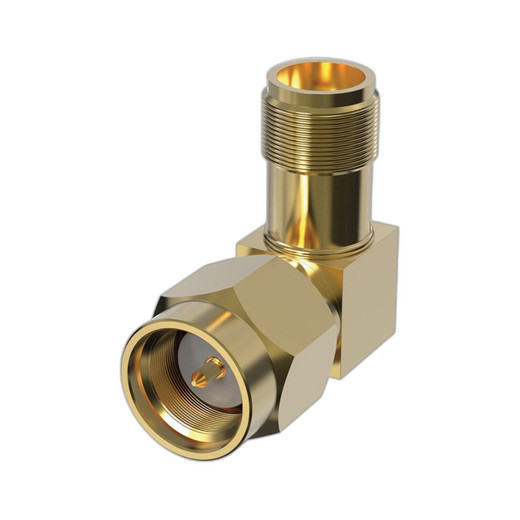

The Axis 02470-021 is a pack of 10 right-angle SMA adaptors designed for use between sensor units and cables in Axis IP camera and surveillance sensor deployments. Right-angle SMA connectors eliminate the need for straight-through connections, which is critical when space is constrained or when cable routing paths cannot accommodate standard perpendicular connectors. This pack of 10 units (02470-021, often searched as 02470 021) provides enough adaptors for medium-scale deployments or as replacement stock for ongoing maintenance.
Key Features
- Right-Angle SMA Connector Design: Rotates the cable 90 degrees from the device port, meaning you can route cables horizontally or vertically without stressing the connector or requiring bulky right-angle cable assemblies. This reduces the mechanical stress on the port itself and lowers the risk of connection failure over time.
- Compatibility with Axis Cable Assemblies: Designed for use with the Axis TU6004-E cable and Axis TU6005 plenum cable, ensuring proper impedance matching and reliable signal integrity for sensor connectivity. Plenum-rated compatibility is important if cables must be run through HVAC systems or air-handling spaces in commercial buildings.
- Tight-Space Installation: In warehouse automation, industrial IoT deployments, or constrained ceiling/wall cavities, a right-angle adaptor often means the difference between a clean, protected cable route and an exposed, bent cable that will fail within months. This is a genuine time-saver during rough-in and commissioning.
- Bulk Pack Efficiency: Ten adaptors per package reduces per-unit cost compared to buying individual connectors and simplifies inventory management for integrators managing multiple sites or ongoing sensor upgrades.
- Standardized SMA Interface: SMA (SubMiniature version A) is a widely used RF/RF connector standard, so these adaptors integrate with any Axis device or accessory using SMA ports—including thermal cameras, external antenna assemblies, and expansion modules.
- No Tools Required: SMA connectors are threaded; installation is hand-tight with a standard wrench or connector tool for final torque. No soldering, crimping, or specialized equipment needed.
Integration and Compatibility
The Axis 02470-021 adaptor is compatible with any Axis surveillance device or accessory with an SMA-male or SMA-female port. Common use cases include connecting external antennas to wireless Axis cameras, linking thermal or multi-sensor modules to base units, and routing sensor cables through tight cable trays or conduit runs in warehouse automation systems. Because it is a passive adaptor—no electronics, no power consumption—there is no configuration or integration effort; install and use.
When to Choose a Different Approach
If your deployment requires more than a simple 90-degree offset (for example, you need a 45-degree angle or multiple adaptors in series), consider a custom right-angle cable assembly from Axis or a third-party RF cable supplier. If you are working with non-SMA connectors (such as TNC or N-type), these adaptors will not fit—verify your device port type before ordering.
What's in the Box
- 10x Axis TU6002 Right-Angle SMA Adaptors
Frequently Asked Questions
Q: Can I use the 02470-021 with Axis cameras that have external antenna ports?
A: Yes. If your Axis camera has an SMA antenna port and you need to route the antenna cable at a right angle to save space or avoid cable strain, the adaptor fits directly onto the camera port.
Q: What is the gender of the connectors on the 02470-021?
A: The adaptor has one SMA-male and one SMA-female port, allowing it to connect an SMA-male cable (such as the TU6004-E) to an SMA-female port on a camera or sensor unit.
Q: Do these adaptors introduce signal loss?
A: Right-angle SMA adaptors are passive components with minimal insertion loss (typically under 0.5 dB at standard RF frequencies). For short cable runs in typical surveillance sensor applications, this is negligible. For long antenna runs or critical RF applications, measure the total cable loss with a signal analyzer.
Q: Are the 02470-021 adaptors waterproof or rated for outdoor mounting?
A: The adaptor itself is a connector; it is not sealed. If it will be exposed to weather, ensure the mated connectors and cables have appropriate IP ratings, and consider using a connector cap or strain relief boot to prevent water ingress at the joint.
Q: Can I daisy-chain multiple 02470-021 adaptors?
A: Technically yes, but not recommended. Each adaptor adds a mating surface; multiple adaptors in series increase mechanical stress on the mated ports and degrade signal integrity. Use a single adaptor per connection point when possible, or invest in a pre-assembled right-angle cable if you need multiple offsets.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02470-021 pack of 10 right-angle SMA adaptors is a small but genuinely useful inventory item for any integrator working with Axis sensor or antenna assemblies. The simple act of routing a cable 90 degrees eliminates a surprising number of field issues—mechanical stress on connectors, cable pinch points in tight spaces, and the awkward cable management that leads to accidental disconnects during maintenance.
Technical Highlights:
- Passive RF Connector: No electronics, no power draw, no configuration—SMA-male to SMA-female interface ensures compatibility with Axis TU6004-E and TU6005 plenum cables and any SMA port on Axis devices or accessories. Installation is hand-tight with no tools beyond a standard wrench.
- Right-Angle Geometry: Saves space in wall cavities, ceiling runs, and equipment racks where a straight cable connector would be impossible to route. Reduces bending radius stress on the cable jacket and connector solder joints, extending service life.
- Bulk Pack (10 Units): Enough for a small-to-medium integrator project or as standing inventory. Ten pieces costs less per unit than buying singles, and ensures you always have spares on hand for warranty replacements or field retrofits.
Deployment Considerations:
- Passive Adapter—No Signal Conditioning: While insertion loss is minimal (under 0.5 dB), each mated connection is a failure point. In long antenna runs or high-frequency applications, total cumulative loss matters. Measure if you are concerned.
- Mechanical Stress Limit: The adaptor itself is robust, but the SMA port on your device is not infinitely rigid. Avoid using the adaptor as a cable strain relief; use a proper cable gland or boot to support the cable weight separately from the connector.
- Outdoor Exposure: The adaptor is not sealed. If cables must run through unconditioned spaces, use weatherproof connector caps or boots at the mated joint to prevent water ingress and oxidation.
The 02470-021 is the right choice for warehouse automation systems with constrained sensor mounting points, thermal camera antenna routing in confined spaces, or any multi-sensor Axis deployment where cable paths cannot be straight. Stock a pack or two; they will be gone faster than you expect.
