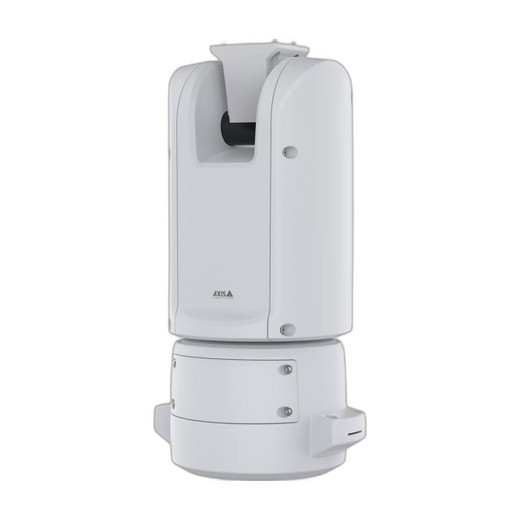

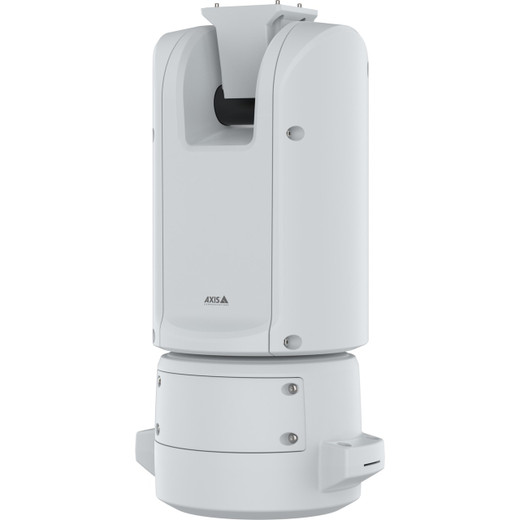

Axis TQ1818-E 360° Pan-Tilt Positioning Unit - 03049-001

Axis 03049-001 TQ1818-E 360° Pan-Tilt Positioning Unit

The Axis 03049-001 TQ1818-E is a professional outdoor pan-tilt positioning unit designed to mount and control large-format box and thermal cameras across perimeter security, border monitoring, and critical infrastructure applications. Built for extended coverage without blind spots, this unit delivers full azimuth and vertical motion with absolute positioning accuracy—meaning your camera returns to preset angles without drift, a critical requirement for automated threat detection and scheduled monitoring workflows.

Key Features

• 360° Endless Pan Range: Continuous full-circle rotation without mechanical stops allows seamless perimeter sweeps and eliminates repositioning delays. Essential for tracking threats that approach from any direction without dead zones.
• 135° Tilt (Ground-to-Sky): Full vertical span from ground-level perimeter coverage to overhead infrastructure monitoring in a single unit—no need for multiple fixed cameras at different angles.
• Absolute Positioning Accuracy: Unit reports and holds precise pan/tilt coordinates, so preset positions remain consistent across power cycles and seasonal temperature shifts. Critical for integrating with video management system (VMS) automation, where cameras must return to known locations for analytics workflows.
• Integrated De-Icing System: Built-in heating prevents mechanical freeze-up in sub-zero climates. Unheated positioning units lose responsiveness in extended cold; the TQ1818-E maintains smooth motion even in arctic or high-altitude deployments where downtime directly impacts border or remote site security posture.
• Dual Network Interfaces (RJ45 + SFP): Supports both copper and fiber connectivity. The SFP port enables long-distance fiber runs ideal for remote perimeter sites where copper cabling would be impractical or pose reliability concerns. The RJ45 port covers standard Ethernet deployments. No need to choose one transport—configure each site based on existing cabling infrastructure.
• Industrial-Grade Weather Sealing: All mechanical and electrical components protected against rain, snow, and dust ingress. Designed to operate reliably in unheated outdoor enclosures for months without maintenance access.
• Multi-Mounting Options (Wall, Pole, Column): Flexible attachment points reduce site preparation time and allow rapid redeployment across diverse topologies—building edges, free-standing masts, tower structures. Universal mounting also accommodates future camera upgrades without structural rework.

Network & Connectivity

The dual-interface design reflects real-world deployment realities. Fiber (SFP) enables distance-independent signal propagation—relevant for perimeter deployments spanning kilometers where copper signal loss becomes problematic. Copper (RJ45) remains the faster integration path for sites with existing Ethernet infrastructure. Both run simultaneously if needed, supporting failover or load distribution architectures. Power is supplied via 56V AC or DC, accommodating both mains-backed and renewable-energy systems common in remote surveillance sites.

Environmental & Reliability Considerations

The integrated de-icing system is a practical differentiator in northern or mountainous deployments. Standard positioning units freeze in sustained below-zero conditions, requiring manual intervention or complete shutdowns until thaw. The TQ1818-E maintains operational continuity, reducing on-site maintenance visits and ensuring perimeter coverage during high-threat winter months when border crossings or theft attempts often spike due to reduced human patrols.

Industrial-standard housing protects against direct rain and heavy dust, typical of open-air perimeters. However, skip this unit if your site requires full submersion protection or extended salt-spray resistance—confirm environmental ratings with the Axis specification sheet before coastal deployments.

Integration with Axis Cameras

The TQ1818-E (03049-001) integrates with Axis box and thermal camera models via direct mechanical and electrical coupling. Compatible thermal cameras enable night-vision perimeter monitoring without visible light pollution, a security advantage for sensitive borders or energy facilities. Box cameras provide flexible lens options and high-resolution capture. Consult the camera compatibility list during specification to confirm your chosen model pairs with this unit.

Ideal Deployment Scenarios

• Perimeter fence line and border crossing checkpoints
• Critical infrastructure protection (power plants, water treatment, ports)
• Remote campus and wide-area facility monitoring
• Coastal and high-altitude installations requiring weather resilience
• Automated threat detection workflows requiring absolute preset accuracy

Frequently Asked Questions

Q: What cameras are compatible with the Axis 03049-001 TQ1818-E?

A: The unit supports select Axis box and thermal camera models. Compatibility is mechanical and electrical; confirm your specific camera model against the Axis compatibility documentation or contact your integrator for verification before purchase.

Q: Can the TQ1818-E be installed indoors?

A: No. The TQ1818-E is designed for outdoor installations with industrial-grade weather sealing. Indoor environments do not require its de-icing or environmental protection features.

Q: Does the unit support ONVIF or standard IP protocols?

A: The TQ1818-E is a positioning/mechanical control unit, not an encoder or video source. It integrates with Axis cameras and compatible VMS platforms via the host camera's ONVIF or proprietary control interfaces. Pan-tilt commands are issued through the camera or NVR controlling the unit.

Q: What is the maximum cable run for the SFP fiber interface?

A: SFP fiber supports standard multi-mode distances (typically 2 km) or single-mode (up to 10 km+), depending on the specific fiber transceiver module installed. Confirm maximum run length with your fiber module specifications before ordering long-distance cabling.

Q: Is the de-icing system always active, or can it be scheduled?

A: The integrated heating system activates based on temperature thresholds. Scheduling and control logic are typically configured through the host Axis camera or VMS. Consult the technical documentation for granular thermal management options.

Q: Can I retrofit the TQ1818-E to an existing camera, or must it be ordered together?

A: The unit is sold separately (MPN 03049-001) and can be retrofitted to compatible Axis cameras already installed, provided mechanical and electrical interfaces match. Verify compatibility before purchasing if upgrading an existing camera deployment.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03049-001 TQ1818-E is a mature, purpose-built platform for outdoor surveillance operators who prioritize uptime and coverage reliability over feature novelty. The 360° endless pan and 135° tilt geometry maximizes situational awareness without blind spots—critical for perimeter defense where a single unmonitored angle becomes a threat vector. Absolute positioning ensures cameras return to preset locations without drift, essential for automated threat detection workflows that depend on consistent framing for AI analytics.

Technical Highlights:

• Dual Network Interfaces (RJ45 + SFP): The fiber option eliminates distance limitations of copper runs. Multi-kilometer perimeter deployments benefit from fiber's immunity to EMI and signal loss—a real advantage over units locked to Ethernet-only connectivity. Configure both or either based on site topology; no architectural lock-in.
• Integrated De-Icing System: Sub-zero deployments are the differentiator here. Standard positioning units seize up in sustained below-zero conditions; the TQ1818-E's heating system maintains smooth motion even at -40°C, reducing winter downtime during peak threat periods. Northern latitudes and high-altitude sites see measurable uptime gains.
• 56V AC/DC Power Flexibility: Accommodates both mains-backed sites and remote installations running solar or wind power with DC-only infrastructure. No need for AC inversion or UPS complexity—direct 56V DC feeds directly into the unit.

Deployment Considerations:

• Camera Compatibility is Non-Negotiable: The TQ1818-E is not a universal pan-tilt—it pairs only with specific Axis box and thermal models. Verify mechanical and electrical coupling before ordering. A mismatched camera-to-positioner combination means rework or write-off.
• Fiber Transceiver Module Not Included: The SFP port is passive (cage only); you supply the fiber transceiver. Budget for both single-mode and multi-mode module options if distance scalability is a requirement.
• Weather Sealing Has Limits: IP-rated for rain and dust, but coastal salt-spray or extreme humidity may require additional corrosion management. Confirm exact environmental specification with manufacturer for maritime deployments.

The 03049-001 excels in remote perimeter monitoring, border checkpoints, and critical infrastructure sites where network isolation, thermal capability, and cold-weather resilience outweigh cost. Skip this unit if you need sub-$5k positioning on a tight budget or if your site is temperate indoors—conventional indoor PTZ units are simpler and cheaper. Choose the TQ1818-E when uptime, distance, and environmental extremes define the deployment.
