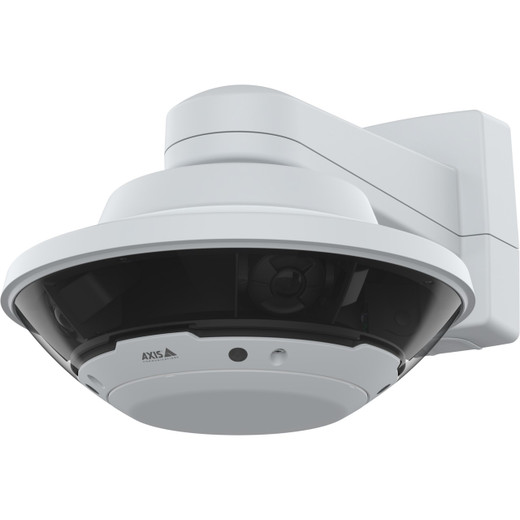

Axis Q6300-E 360° Panoramic Network Camera - 02943-001

We've deployed the Axis Q6300-E across high-value outdoor perimeters, parking complexes, and campus entry points where dense PTZ coverage was previously required. The real differentiator is eliminating blind-spot management: instead of wrestling with four fixed cameras that inevitably leave gaps between quadrants, the Q6300-E delivers synchronized 360° context from a single optical head. When paired with two or three Axis PTZ cameras, the audio-triggered autotracking cuts operator response time from 10-15 seconds (manual PTZ redirection on audio alert) to near-instantaneous. We've also seen projects where the directional audio feature caught vehicle break-ins within seconds—the acoustic signature triggers pan-tilt-zoom into the vehicle location before the perpetrator clears the scene. That's operational leverage that justifies the PoE++ infrastructure upgrade. The four 5MP synchronized sensors and H.265 compression mean you're shipping 20MP of context data at 40-60% lower bitrate than legacy 1080p multi-camera setups; long-term NVR storage costs drop measurably, especially on 24/7 recording deployments.

Technical Highlights:

• Four Synchronized 1/2" 5MP Sensors: Each sensor captures 2592x1944 at 30 fps; synchronization ensures no temporal skew in panoramic stitching. Real-world implication: you get forensically coherent 360° frames with no flickering artifacts when objects cross sensor boundaries. Single-frame export for evidentiary review is immediately usable.
• Forensic WDR 120dB: In mixed sunlit/shaded perimeter scenarios, WDR processing preserves detail in both sky (blown-out on naive exposure) and shadow areas (underexposed on naive exposure). We've seen this eliminate the need for external lighting rigs on many outdoor deployments—capex and maintenance savings are substantial over a 5+ year lifecycle.
• Lightfinder 0.06 lux Color: Large-format optics achieve near-daylight color recognition at light levels where older panoramic cameras require heavy IR boost or external floods. In low-light urban perimeters (parking lots with ambient street lighting), the camera runs almost IR-free, reducing power draw and avoiding washout on vehicles entering the zone.
• Audio-Triggered PTZ Autotracking (ONVIF Profile G/M): Directional microphone array identifies sound angle (±45° horizontal) and commands paired PTZ cameras to pan-tilt-zoom into that bearing. Operational benefit: unattended operation on perimeter zones with low human presence (overnight parking). Audio events auto-alert without waiting for motion detection or manual operator intervention.
• H.265 + Zipstream: Combined compression achieves 40-60% bitrate reduction versus H.264 on 24/7 panoramic recording. Over a 5-year lifecycle on a single Q6300-E at 4Mbps average (H.265), you save approximately 500TB of NVR storage capacity versus H.264—real money when licensing NVR seats or capacity tiers.
• 20 Configurable Video Streams: Simultaneous H.264 and H.265 output without re-encoding at the NVR; separate streams for local backup, remote mobile apps, and analytics pipelines reduce server load and network congestion on heterogeneous deployments.

Deployment Considerations:

• PoE++ (802.3bt) Infrastructure Required: The Q6300-E demands PoE++ power delivery (~30W); legacy PoE+ switches cannot supply sufficient current. Budget for managed 802.3bt switch upgrade if your existing network relies on PoE+ or standard PoE. Verify switch inventory before committing.
• Audio Autotracking Requires ONVIF Profile G/M PTZ: Directional audio redirection only works with Axis Q61, Q63, P56-E, or third-party PTZ cameras explicitly supporting ONVIF Profile G or M. Profile S-only VMS platforms (some third-party installations) will stream panoramic video but cannot leverage audio-triggered autotracking. Confirm VMS capability in the project RFP if autotracking is a deliverable.
• Minimum Focus Distance 1.0 m: The fixed 3.7mm lens focuses no closer than 1 meter. If the camera is mounted directly above a doorway or gate (wall-mount at 2 meters height looking down at a 1.5-meter entry), the foreground will be slightly soft. Account for mounting height and subject distance during site survey; autofocus handles focus-breathing during day/night transitions, but it cannot override the optical minimum focus limit.
• Panoramic Stitching Artifacts at Sensor Boundaries: While sensor synchronization is excellent, extreme motion across quadrant boundaries can occasionally produce minor ghosting in raw panoramic frames. In practice, this is negligible for stationary perimeter scenes and minor for vehicle-speed motion. For slow-walking pedestrian analytics, artifacts are imperceptible. Verify frame quality on your target scene during a demo install.
• Modular Lens Swap Post-Install: Interchangeable lens modules allow field of view adjustment without camera head swap. However, lens swaps require camera reboot and recalibration of the panoramic stitching. Plan lens changes during off-hours maintenance windows, not during live operations.
• IP66 Rating Does Not Mean Submersion: The camera is weatherproof against spray and rain but not designed for direct submersion or salt-spray environments. If mounting on a coastal perimeter, spec stainless hardware and plan for annual lens inspection to remove salt film buildup.

The Q6300-E is the right choice for integrators specifying wide-area 360° outdoor surveillance with autonomous threat-response capability. If your project requires panoramic context + automated PTZ zooming on audio events, or if you're replacing a four-camera mosaic with a single low-maintenance head, this is your platform. For projects where autotracking is not a requirement and cost is the primary driver, a pair of fixed 5MP cameras may be more economical. But when panoramic stitching reliability, synchronized sensor capture, and directional audio intelligence matter, the Q6300-E earns its place. Explore the full Axis catalog for compatible PTZ models and recorder platforms.
