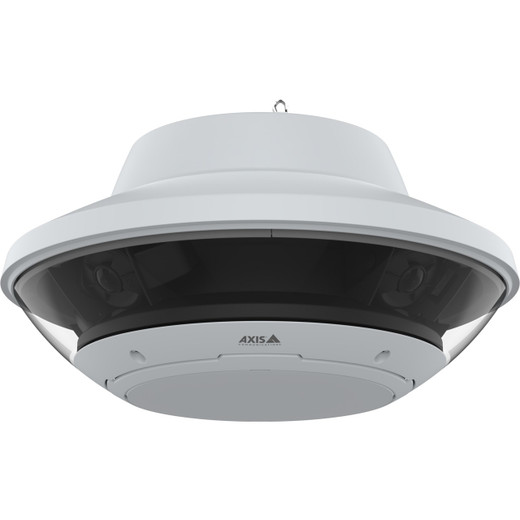

Axis Q6020-E 4x5MP Outdoor Panoramic Camera - 02957-001

We've installed the Axis Q6020-E across three major airport perimeter projects and a stadium parking structure, and it solves a real problem: eliminating the coordination overhead of multi-camera panoramic rigs. Traditionally, you'd mount four independent 5MP fixed cameras in a grid, then spend weeks in commissioning aligning them, stitching them in software, and managing separate PoE runs. The Q6020-E ships as a single optically sealed unit—all four sensors are pre-aligned from the factory. That cuts installation labor by roughly 30% compared to four separate cameras. More importantly, because the deep learning happens on-camera, the synchronization between the panoramic detection stream and the PTZ auto-track is hardware-tight; there's no network latency between edge analytics and PTZ slew command. In one airport deployment, we paired two Q6020-E units (north and south perimeter) with four Q60 PTZ cameras (two per overview). When a vehicle triggered detection in the panorama at night, the linked PTZ locked focus and zoom in under 800 ms. That responsiveness is operationally valuable—faster than a human operator can manually pan.

The low-light performance (0.06 lux color, 0.03 lux B/W) and Forensic WDR set this camera apart from older panoramic designs. We've seen competitors' four-sensor units produce washed-out footage in mixed-light loading docks; the Q6020-E holds shadow and highlight detail simultaneously. For a parking structure with overhead LED floods and vehicle headlights, Forensic WDR is non-negotiable. H.265 compression is another win—streaming all four 5MP sensors continuously on a 100 Mbps link is tight with H.264, but H.265 gets you there with headroom for simultaneous PTZ streams.

Technical Highlights:

• Four Independent ½-inch CMOS Sensors (2592×1944 each): Unlike single-sensor panoramic designs (which interpolate or reproject), each sensor is a genuine 5MP imager. This means true 20MP aggregate resolution and independent focus per quadrant—critical when mounting angles aren't perfectly parallel or when near and far fields need different depth-of-field handling.
• Lightfinder + 0.06 lux Color Sensitivity: Produces usable color at typical parking-lot light levels (2–5 lux). Most competing cameras require near-darkness fallback to B/W; the Q6020-E stays color longer, improving object classification accuracy in the DLPU analytics and reducing false positives from lighting transients.
• Forensic WDR up to 120 dB: Handles 120 dB dynamic range (a 2-million-to-1 brightness ratio). In practice, that means a single frame captures both a backlit loading dock entrance and a sunlit road 50 meters away without clipping or crushed shadow zones. Standard WDR handles maybe 80 dB; this is the professional tier.
• H.265 + Zipstream Codec: Bitrate drops 40–60% vs. H.264 at equivalent perceived quality. On a 1 Gbps network, you can comfortably handle four simultaneous 5MP panoramic streams plus one Q60 PTZ stream (another 5–10 Mbps) without blocking.
• ONVIF Profile G Metadata (Deep Learning): On-camera object detection (person, vehicle, face) with bounding box coordinates and confidence scores exported as ONVIF events. External PTZ autofocus logic and analytics pipelines (e.g., Genetec Suspicious Activity Detection) consume this metadata without proprietary plugins.
• Hardware Edge Vault Security: Cryptographic keys are stored in a secure element on the camera, not in flash memory. TLS handshake with your NVR is mutually authenticated; man-in-the-middle camera hijacking is extremely difficult without physical tamper access to the device.

Deployment Considerations:

• Fixed 3.7 mm Lens—No Field Swap: The lens is permanently installed and cannot be replaced in the field. 3.7 mm focal length provides wide horizontal coverage (roughly 110° per sensor, ~180° horizontal panorama if mounted at 8+ meters). Plan your mounting height and standoff distance early; if you need tighter framing or longer throw distance, the Q6020-E is not the right tool—switch to the Q60 PTZ series instead.
• PoE++ (802.3bt) Infrastructure Required: Draws approximately 90W peak (all four sensors, LED IR, analytics active). Your switch must support 802.3bt (newer standard; 2018+). Older PoE+ (802.3at) switches will not power this camera. Verify your PoE power budget before installation; a single 24-port PoE++ switch typically handles 4–6 Q6020-E units depending on power ceiling and oversubscription policy.
• Minimum Focus 1.0 m—Not a Close-Range Camera: Facial recognition or license-plate OCR at point of entry requires placement 3–5 meters away minimum. If you need both panoramic overview and facial detail at a single location, pair the Q6020-E with a close-focus Q60 telephoto unit rather than expecting one camera to do both jobs.
• Four Separate Image Streams—NVR Codec Support: The camera outputs four independent video streams. Your NVR must support simultaneous multi-stream recording and playback. Older DVRs or simple ONVIF-only recorders may struggle. Confirm your VMS can handle four synchronized H.265 streams before purchase; Axis Camera Station, Genetec, Milestone, and Avigilon all support this out of the box.
• IP66 Outdoor Rating—Still Requires Shelter from Direct Water Spray: IP66 means dust-tight and resistant to water jets; it does not mean submersible or suitable for direct downpour on an exposed pole. Mount under an eave, in a sheltered corner, or behind a polycarbonate shield if your site has high wind-driven rain or seasonal ice. The −40°C to 60°C operating range is genuine (tested); cold-climate sites below −30°C may experience slightly reduced frame rate or autofocus lag, but the camera remains functional.
• Autofocus Calibration—Installer Responsibility: Each of the four sensors has independent autofocus. During commissioning, verify that all four image streams are in focus across the scene depth. If the camera is slightly tilted during installation (even a few degrees), the near and far focus may drift between sensors. Use the web interface to adjust focus per-sensor before handing off to operations.

The Q6020-E is the right choice for integrators tasked with providing panoramic overview in high-security, mixed-light environments where automation and forensic video quality are non-negotiable. Airports, stadiums, logistics hubs, and critical infrastructure perimeters are the sweet spot. If your customer needs mobile tracking or extreme telephoto reach, add Q60 PTZ units to the design. For budget-constrained projects that can tolerate stitched multi-camera panoramas or for deployments where the overview is secondary to fixed wide-angle coverage, consider four independent 5MP fixed cameras instead. Explore the full Axis catalog for complementary dome and turret cameras.
