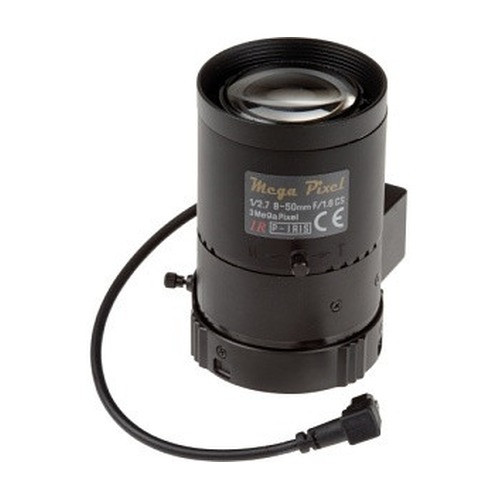

Axis 01469-001 5MP 8-50mm F1.6 P-Iris Verifocal Lens
The Axis 01469-001 is a professional-grade optical module engineered for 5MP network cameras deployed in mixed indoor-outdoor surveillance environments. This lens combines a wide 8-50mm zoom range with a fast F1.6 aperture and precision P-Iris control, delivering consistent image quality across variable lighting and distance conditions. For security integrators and IT architects balancing coverage area with subject detail, the 01469-001 addresses the core tradeoff: broad situational awareness without sacrificing long-distance identification capability.
Key Specifications and Deployment Benefits
- 8-50mm Focal Length (6.25x optical zoom): Spans from wide-angle area monitoring to targeted surveillance of specific zones. Eliminates the need to rotate or reposition the camera body to transition from parking lot overview to license plate capture—a meaningful efficiency gain in fixed-installation scenarios.
- F1.6 Maximum Aperture: Gathers approximately 2–3 stops more light than standard F2.8 lenses, reducing reliance on digital gain and noise in low-light deployments (dawn, dusk, poorly lit corridors, parking structures). Maintains image quality when ambient light drops below 1 lux without triggering excessive sensor amplification.
- P-Iris (Precision Iris) Control: Automatically adjusts iris diaphragm in response to lighting changes, maintaining consistent depth of field and exposure. Reduces flicker and geometric distortion that manual iris designs introduce during scene transitions—critical for facilities with variable natural lighting or dynamic occupancy.
- Verifocal Optical Design: Maintains sharp focus across the entire 8–50mm zoom range without mechanical refocus. Eliminates focus drift during zoom operations, a common issue in non-verifocal designs that can degrade image clarity when integrated with PTZ heads or automated tracking systems.
- Weather-Resistant Construction: Rated for both indoor and outdoor deployments. Handles temperature swings, humidity, and mild environmental stress typical of exterior dome housings, coastal installations, or temperature-variable industrial spaces. Not submersible—verify enclosure IP rating separately if full weatherproofing is required.
- 5MP Sensor Optimization: Optical design matched to 5MP (2592 × 1944) sensor arrays, ensuring edge-to-edge sharpness and minimal vignetting. Pairing with non-5MP cameras will not damage the lens but may underutilize optical resolution or introduce edge softness.
Integration and Compatibility
The 01469-001 is designed for Axis IP cameras in the 5MP class. Verify mount compatibility (C-mount or proprietary Axis interface) before ordering—lens mount type is not detailed in this specification. Integration with motorized focus or zoom adapters requires confirmation of mechanical tolerances. For installations incorporating network video recorders or motion-triggered recording, the verifocal design ensures consistent subject framing without focus adjustment artifacts that could trigger false-positive motion events.
When to Choose a Different Model
If your deployment requires shorter focal length range (e.g., wider angles for entrance monitoring), consider Axis varifocal lenses with lower starting focal lengths. If higher megapixel sensor support is needed, verify that higher-resolution Axis camera variants are compatible with your chosen optical module. For applications requiring longer telephoto reach (beyond 50mm), explore fixed focal-length telephoto options from the Axis optical catalog.
Real-World Tradeoffs
The 8–50mm range sacrifices extreme wide-angle capability (no 4mm start point) in exchange for telephoto reach. The F1.6 aperture increases lens mass and barrel diameter compared to more compact F2.8 designs—verify that your camera housing and mount hardware accommodate the larger form factor. The verifocal mechanism and P-Iris electronics add cost relative to fixed-iris, fixed-focus alternatives; this investment pays off in environments where focus precision and automatic iris adjustment directly reduce integration labor and image-quality troubleshooting.
Frequently Asked Questions
Q: Is the 01469-001 compatible with all Axis 5MP cameras?
A: The 01469-001 is designed for Axis 5MP network cameras, but mount type and mechanical compatibility vary by camera model. Verify the camera's lens mount specification and optical interface before purchase.
Q: What is the minimum focus distance on this lens?
A: Minimum focus distance is not specified in the available product data. Contact the manufacturer or your system integrator for field-of-view diagrams at specific working distances.
Q: Does the P-Iris mechanism work with Axis camera firmware automatically, or does it require configuration?
A: P-Iris integration is firmware-dependent. Axis cameras supporting P-Iris will auto-detect and configure the mechanism; verify your camera model's firmware version supports this lens before deployment.
Q: Can the 01469-001 be used indoors and outdoors interchangeably?
A: Yes, the weather-resistant construction supports both indoor and outdoor use. However, outdoor mounting must include appropriate housing (dome, turret, or bullet) with an IP rating matching your environmental conditions.
Q: Is manual focus adjustment available if verifocal operation fails?
A: Manual focus capability is not documented. If optical focus is lost, lens replacement or factory service may be required.
Q: What is the optical format (e.g., 1/2.8") for 5MP sensor compatibility?
A: Optical format is not specified in available documentation. Confirm compatibility with your specific Axis 5MP camera model's sensor format before ordering.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
The Axis 01469-001 represents a deliberate engineering choice for integrators who need to deploy a single optical module across variable lighting and distance scenarios. The F1.6 aperture on this lens is not a cosmetic spec—it delivers approximately 2–3 additional stops of light-gathering capability compared to standard F2.8 optics. In practice, this translates to usable video in parking structures or warehouse aisles where competing lens designs would force you to raise digital gain and accept visible noise degradation. The P-Iris mechanism ensures that as lighting changes throughout the day, iris adjustment happens automatically and consistently, reducing the exposure flicker that manual-iris designs introduce when the camera transitions from sunlit exterior shots to shadowed interior zones.
Technical Highlights:
- 8–50mm focal length with verifocal design: Provides 6.25x optical zoom without focus drift during zoom transitions. Critical for automated tracking, PTZ head integration, or any scenario where maintaining sharp focus across the focal range prevents tracking artifacts or loss of subject detail.
- P-Iris precision control: Maintains consistent depth of field across variable ambient light, reducing reliance on sensor gain and maintaining image quality in mixed-lighting environments (parking areas, mixed indoor-outdoor retail, warehouse perimeters).
- Weather-resistant construction: Rated for both indoor and outdoor deployments, handling temperature swings and environmental humidity. Not fully submersible, but appropriate for vented dome housings or turret designs in humid or coastal climates.
Deployment Considerations:
- Mount and mechanical compatibility: Verify lens mount type (C-mount or Axis proprietary) against your camera model before ordering—incompatible mounts will delay integration and require lens exchange.
- Optical format mismatch: The lens is optimized for 5MP sensors. Using it on non-5MP Axis cameras may result in edge vignetting, softness, or underutilized optical resolution. Confirm sensor format compatibility with your camera specification sheet.
The 01469-001 is best suited to fixed-installation surveillance requiring both area coverage and subject identification without lens or camera repositioning—retail zones with variable lighting, perimeter monitoring with mixed sun-and-shade paths, and warehouse sections spanning dock-to-interior transitions. It trades extreme wide-angle capability for telephoto reach; if your primary need is ultra-wide entrance monitoring, a shorter 4mm start-focal-length alternative will serve better. For integrators prioritizing image consistency and automatic exposure control, the combination of F1.6 aperture and P-Iris on the 01469-001 simplifies commissioning and reduces post-installation focus and iris adjustment labor.
