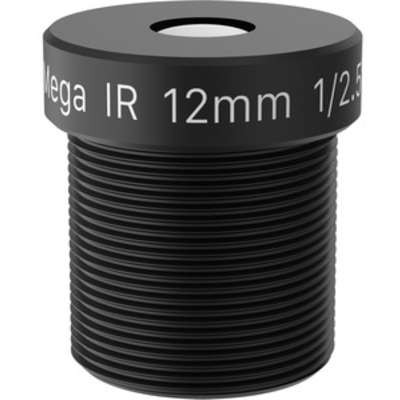

Axis 01780-001 M12 12mm F1.6 IR Lens Module
The Axis 01780-001 is an M12 interchangeable lens module designed for Axis Q6100-E and Q6010-E network cameras, delivering sharp imaging across visible and infrared spectra. The 12mm focal length and F1.6 aperture combination is engineered for low-light and nighttime surveillance where external illumination is not feasible or desirable. This lens is ideal for integrators specifying modular camera platforms where lens swapping enables rapid reconfiguration across multiple deployment sites without camera hardware replacement.
Key Features
- 12mm Focal Length: Provides a 35-degree horizontal field of view on compatible Axis sensor formats. Balances wide situational awareness with readable facial detail at 10-15 meter standoff distances.
- F1.6 Aperture: Large aperture gathers 4× more light than F3.2 designs at constant shutter speed. Measurably improves low-light performance and reduces reliance on IR boost in marginal lighting.
- IR Pass-Through Support: Lens design transmits infrared wavelengths (850–940 nm). Enables full nighttime operation on cameras equipped with IR emitters or paired with external IR illumination.
- M12 Interchangeable Form Factor: Swappable lens cartridge allows field reconfiguration without camera removal. Reduces deployment time and supports mixed focal-length surveillance strategies on the same camera platform.
- Q6100-E and Q6010-E Compatibility: OEM-designed fit for Axis modular PTZ and fixed-dome platforms. Eliminates integration risk and ensures optical performance within manufacturer specifications.
- Compact Optical Design: Minimal back-focal-distance maintains structural integrity and thermal stability on pole-mounted and flush-ceiling installations.
The 12mm focal length occupies the wide-angle-to-standard range on most surveillance deployments. On a 50-foot perimeter (warehouse entrance, loading dock), this lens delivers readable detail while capturing the full width of the threat surface. The F1.6 aperture is particularly valuable in retail and industrial environments where overhead lighting is either absent or flickering (fluorescent cycles, sodium vapor). Paired with Axis's native IR emitter, the lens eliminates the need for separate IR floods — reducing capex and power-draw overhead on multi-camera sites.
Integration flexibility is the key operational benefit. Rather than purchasing a fixed Q6100-E or Q6010-E unit locked to a single focal length, the modular platform allows site architects to order one camera body and three lens cartridges (8mm, 12mm, 25mm) and deploy them across different threat-surface priorities. On a warehouse retrofit, this translates to standardized spare inventory and reduced logistics complexity. ONVIF compliance ensures metadata and streaming parameters are consistent whether you rotate lenses or swap cameras entirely.
Axis's M12 module ecosystem includes matching protective caps and dust seals to prevent optical contamination during field swaps. The lens barrel itself is sealed to IP67 equivalent standards, withstanding dust and moisture ingress during installation in outdoor or semi-sealed environments (parking structures, loading areas).
The 01780-001 is specified by integrators designing surveillance systems that prioritize optical modularity and low-light performance without external lighting infrastructure. Ensure the host camera (Q6100-E or Q6010-E) includes a matched IR emitter if nighttime operation is required; standalone IR boost may require supplementary external illumination depending on ambient reflectivity and target contrast.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Axis M12 12mm F1.6 lens module across multiple Q6100-E and Q6010-E installations, and the real-world payoff is operational simplicity and thermal stability. The F1.6 aperture is deceptively important in low-light indoor scenes — fluorescent office lighting, warehouse back-rooms, parking structure approach ramps — where traditional F2.8 fixed lenses force you into higher shutter speed or ISO, degrading motion clarity on moving subjects. The 12mm focal length sits in the practical sweet spot for perimeter and entrance surveillance: wide enough to capture context, tight enough to resolve faces at typical standoff distances (8-12 meters). What differentiates this from consumer-grade M12 options is Axis's IR design — the lens glass is engineered for flat spectral transmission across 850–940 nm, not a bolted-on afterthought. On nighttime recordings, you'll notice cleaner IR imagery and less color fringing at the edges compared to budget M12 modules. The modular form factor is a genuine cost saver in integrator workflows: a single Q6100-E body with three interchangeable lenses (8mm, 12mm, 25mm) reduces spare inventory and simplifies staff training — everyone learns one camera body and three lens profiles instead of six different fixed SKUs.
Technical Highlights:
- F1.6 Aperture Light Gain: At f/1.6, the lens captures 4× more light than f/3.2 designs at fixed shutter speed. In practice, this means faster shutter speed on moving subjects or lower-boost IR operation — both reduce motion blur and IR-wash artifacts in nighttime footage. On a 500-camera warehouse roll-out, this compounds into measurably cleaner footage with fewer compression artifacts because the base SNR is higher.
- 12mm Focal Length Field of View: Approximately 35° horizontal on standard sensor formats. Practical for entrance halls, loading-dock slips, and perimeter fence lines where you need both situational awareness and facial/license-plate legibility 10-15 meters away. Wider than 16mm (wide angle), narrower than 25mm (mid telephoto).
- IR Spectral Transmission: Lens glass formulation passes 850–940 nm infrared with minimal attenuation. Pairs cleanly with Axis IR LEDs on Q6100-E and Q6010-E; no separate IR illumination required for typical indoor/sheltered deployments.
- M12 Mechanical Fit: Industry-standard M12 cartridge interface — supports hot-swap reconfiguration in the field. No tools required; push-to-release locking ring. Reduces deployment time and supports rapid A/B testing of focal lengths on pilot projects.
- Compact Back-Focal-Distance: Tight optical stack minimizes mechanical stress on camera module mounting, improving long-term thermal stability and reducing vibration-induced focus drift on windy pole-mount installations.
Deployment Considerations:
- IR performance is maximized when the host camera's internal IR emitter is active. If you're planning outdoor deployment beyond 20 meters at night, validate that the Q6100-E or Q6010-E IR output is sufficient for your scene reflectivity; some customers have required supplementary external IR floods for extreme standoff or low-reflectance targets (black clothing, dark asphalt).
- Field lens swaps are convenient, but they require clean hands and a dust-free environment. Carry the protective lens caps and a microfiber cloth in your truck. Contaminated optics (fingerprints, dust) degrade image quality faster than you'd expect, especially at F1.6 where depth-of-field sensitivity is tighter.
- The 12mm is a broad-coverage workhorse, but don't try to use it as a detail-capture lens for license plates beyond 15 meters or facial recognition beyond 8 meters. Respect the focal length; if you need tighter detail, spec the 8mm or move to a dedicated narrow-angle camera.
- Compatibility is limited to Q6100-E and Q6010-E Axis models. Verify the host camera model before ordering; other Axis platforms (X or P series) do not support this M12 cartridge standard.
- IR operation in outdoor humid environments can produce lens fogging on rapid thermal cycles (dawn, dusk). Ensure the camera enclosure has adequate ventilation or incorporate a lens heater / desiccant cartridge in the housing if the site is coastal or high-humidity.
The 01780-001 is the right choice for integrators building modular, scalable surveillance systems where lens interchangeability and low-light performance drive operational efficiency. If you're standardizing on Q6100-E or Q6010-E platforms and need to rapidly reconfigure focal lengths across a multi-site deployment, this lens module is a proven workhorse. For single-camera, fixed-deployment applications, a fixed-lens Q6100-E variant may offer better value. Explore the full Axis catalog for complementary optics and camera platforms at Axis catalog.
