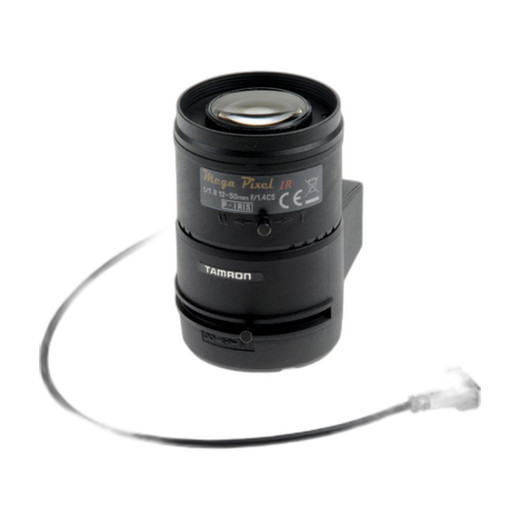

Axis 01690-001 Tamron 12-50mm F1.4 P-Iris CS-Mount Lens
Overview
The Axis 01690-001 is a 12-50mm varifocal CS-mount lens engineered for 8MP network cameras requiring flexible focal length without lens swaps. The F1.4 aperture delivers exceptional light-gathering—critical for low-light retail floors, loading docks, and corridors where you need usable footage without pushing sensor gain and introducing noise. The P-Iris (precision iris) mechanism eliminates stepping artifacts in exposure transitions, keeping frame-to-frame flicker out of your footage during dynamic lighting changes typical in mixed indoor/outdoor perimeter scenes.
Compatibility
Direct CS-mount fit for Axis 8MP network cameras equipped with CS-mount lens ports. Verify your camera's lens mount specification before ordering—CS-mount is mechanically different from C-mount, and cross-fitting creates focus and mechanical issues. The lens is optimized for Axis 8MP sensor geometry; pairing with lower-resolution cameras wastes optical capability, while pairing with higher-megapixel sensors may not fully resolve the lens's sharpness advantage.
Installation Notes
CS-mount threads require careful hand-tightening followed by a quarter-turn with a proper lens wrench to avoid stripping. Back-focus adjustment is needed after installation to achieve sharp imagery across the zoom range—this is not a plug-and-play lens. Ensure your camera mount point has adequate structural support; the varifocal mechanism adds slightly more mass than fixed-focal lenses. P-Iris operation requires power and control signal from the camera; confirm your camera model supports P-Iris drive before installation. Operating temperature range is -40°C to +125°C; avoid rapid thermal cycling which can degrade focus accuracy over time.
