Axis S9301 Mk II Dual 4K Workstation NVR - 03426-004

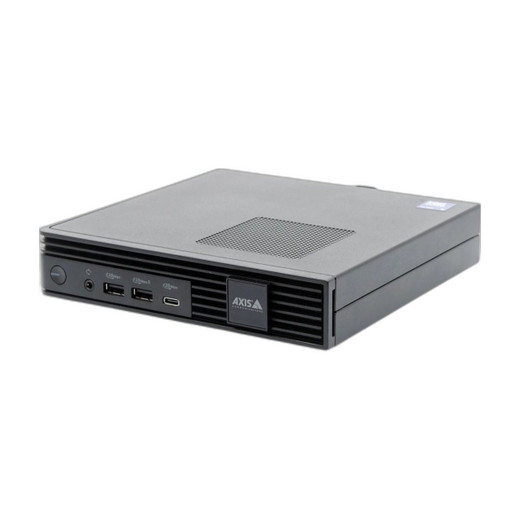

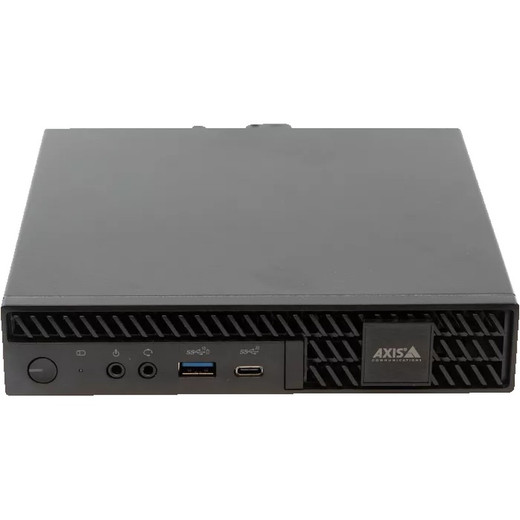

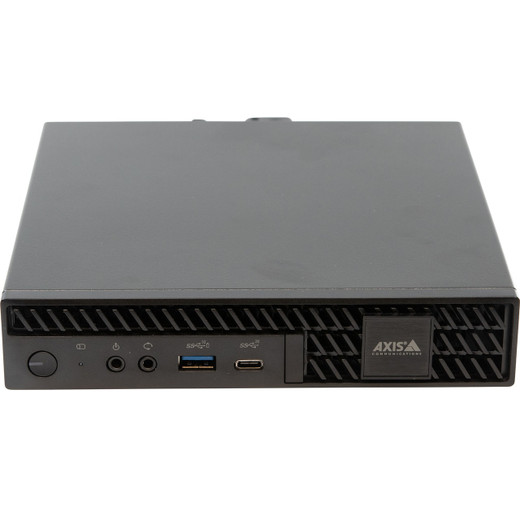

Axis 03426-004 S9301 Mk II Dual 4K Workstation NVR

The Axis 03426-004 S9301 Mk II is a purpose-built micro form factor workstation designed for professional video surveillance operations and multi-site monitoring coordination. This compact client platform runs AXIS Camera Station Pro and can function as either a standalone monitoring workstation or as an integrated management station when paired with AXIS S30 Series recorders. At 182 × 36 × 178 mm and 1.1 kg, the S9301 Mk II solves the space constraints that plague traditional rack-mount or tower-form surveillance consoles—making it practical for reception desks, distributed remote observation hubs, security command centers, and control rooms where floor or wall real estate is at a premium.

Key Features

• Dual 4K DisplayPort 1.4a outputs: Two synchronized 4K monitor connections eliminate the need for external graphics adapters or daisy-chained display hubs. Run live view on one monitor at full 4K resolution while managing playback, map overlays, or analytics on a second 4K display simultaneously—a real operational advantage when operators need simultaneous situational awareness across multiple sites.
• Intel Core processor with 16 GB RAM and Intel UHD graphics: This combination delivers predictable real-time video decode performance for mixed-resolution deployments. Live view at single 4K 30 fps, 4-way 1080p split at 30 fps, 9-way 720p split at 30 fps, or up to 36-way 360p split at 15 fps—flexibility matters when retrofitting systems that span legacy SD cameras and newer 4K sensors on the same monitoring console.
• Windows 11 IoT Enterprise LTSC 2024: Long-term support (10-year lifecycle) means no forced feature updates breaking your workflows. LTSC editions receive security patches without disruptive UI changes—critical for 24/7 control room installations where OS stability trumps cosmetics.
• FIPS 140-2 Level 2 TPM 2.0 and Secure Boot: Federal Information Processing Standards compliance satisfies government procurement mandates, enterprise IT governance policies, and critical infrastructure security audits. Attestation support enables zero-trust architectures in larger deployments.
• 10 AXIS Audio Manager Pro licenses with support for 200 simultaneous audio streams: Two-way audio coordination across up to 200 network speakers, microphones, or IP intercoms is built in. This means you can integrate access control announcements, emergency evacuation messaging, or multi-zone paging without separate VoIP infrastructure—real cost savings in distributed monitoring networks.
• SSD storage for fanless operation: No spinning disk or cooling fans means silent operation essential for open-plan security operations centers and reception areas. Faster boot and application load times reduce mean-time-to-view when incidents occur.
• Single 1-port network interface: A single gigabit connection simplifies cable runs and network segmentation. No dual-NIC complexity; wired-only design eliminates wireless interference in RF-sensitive environments like manufacturing floors or hospitals.
• Universal audio jack: Standard 3.5 mm connector supports headsets, speakers, or analog intercom feeds without proprietary adapters.
• DC power input with 10°C to 35°C operating range: Lower temperature floor (10°C vs typical 0°C) allows deployment in unheated server closets or outdoor equipment shelters. DC input option simplifies UPS integration for surveillance continuity during mains loss.
• TAA compliant for federal and government procurement: Meets Buy American Act requirements—essential if your buyer is a GSA contract holder, a state/local government agency, or a critical infrastructure operator subject to NDAA sourcing rules.

Integration & Compatibility

Ships preloaded with AXIS Camera Station Pro and includes AXIS Recorder Toolbox for streamlined deployment. The S9301 Mk II has been extensively tested across the Axis product ecosystem—support for ONVIF-compliant cameras is standard. When paired with an Axis network video recorder, the workstation can pull playback directly from the recorder's storage, reducing local storage requirements on the client itself.

Deployment Scenarios

• Retail and hospitality: Reception desk or loss-prevention office monitoring with synchronized 4K displays for facial recognition or detail review.
• Enterprise security operations: Multi-site command stations where compact footprint and fanless operation reduce infrastructure overhead.
• Banking and financial services: Compliance-grade audit trail and FIPS 140-2 attestation for mandatory video recording governance.
• Healthcare: Patient monitoring, access control integration, and HIPAA-compatible audio recording across nurse call systems.
• Critical infrastructure: Remote observation stations in data centers, utility substations, or telecom shelters where space and power budgets are constrained.

When to Choose a Different Model

If your deployment requires 8+ physical monitor connections, a traditional multi-output graphics card in a larger tower or rackmount form factor may be simpler. If you need wireless connectivity or battery backup integrated into the unit itself, the S9301 Mk II is not the answer—standard UPS solutions and wired infrastructure are assumed. If audio is not mission-critical, the 10 included AXIS Audio Manager Pro licenses represent unutilized licensing overhead.

Frequently Asked Questions

Q: Is the Axis 03426-004 NDAA Section 889 compliant?

A: The S9301 Mk II is TAA compliant, meaning it meets Buy American Act sourcing requirements for federal procurement. However, TAA and NDAA Section 889 restrictions on Chinese-origin telecommunications equipment are separate compliance frameworks. Verify with your procurement team whether your specific contractual obligations require Section 889 attestation.

Q: What is the maximum number of cameras the S9301 Mk II can decode simultaneously?

A: Real-time decode performance is measured by resolution and frame rate combinations rather than a hard camera count. The S9301 Mk II supports one 4K stream at 30 fps, four 1080p streams at 30 fps, nine 720p streams at 30 fps, or up to 36 streams at 360p/15 fps. Any combination across both monitors is supported, so the practical limit depends on your camera mix. For example, a system with 20 legacy 720p cameras and 4 new 4K cameras would comfortably fit within the workstation's decode budget.

Q: Does the S9301 Mk II work with third-party VMS platforms like Milestone XProtect or Genetec?

A: The workstation ships with AXIS Camera Station Pro client software preloaded. Integration with third-party VMS platforms depends on ONVIF compliance in your camera infrastructure and whether those platforms support third-party NVRs. Consult the compatibility matrix for your chosen VMS before procurement.

Q: Can I mount the S9301 Mk II vertically or on an arm in a control room?

A: The micro form factor (182 × 36 × 178 mm) allows flexible placement: desktop, wall-mount via VESA pattern, or articulating arm. Verify the arm's weight rating against the 1.1 kg unit weight and confirm that cable routing (single RJ-45 input, dual DisplayPort outputs, audio jack, DC power) aligns with your installation layout.

Q: What is the warranty on the 03426-004?

A: Warranty terms are available through your specialty distributor. Standard Axis hardware typically includes a 3-year warranty; confirm specifics at time of quote.

Q: Does the workstation support remote management or out-of-band administration?

A: Windows 11 IoT Enterprise LTSC supports standard Windows Remote Desktop, SSH, and enterprise management tools (e.g., Microsoft Endpoint Manager, group policy). The TPM 2.0 and Secure Boot enable baseline security postures for remote provisioning. Network access is via the single gigabit port; confirm firewall and network segmentation policies before deployment.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Axis 03426-004 S9301 Mk II represents a mature, deliberately constrained design—and that's the point. In a market obsessed with maximum port counts and maximum megapixels, this workstation cuts away the noise and delivers exactly what a professional surveillance operator needs: dual 4K monitor support, predictable Intel-based video decode, compliance-grade security credentials, and silent, fanless operation. The 16 GB RAM and UHD graphics pairing is specifically tuned to handle mixed-resolution camera environments—where legacy 720p sensors coexist with new 4K and 8MP deployments. The inclusion of 10 AXIS Audio Manager Pro licenses is not window dressing; it reflects real-world needs in multi-site operations where audio coordination across access control, emergency systems, and intercom infrastructure matters.

Technical Highlights:

• Dual DisplayPort 1.4a with independent resolution control: 4K on one display while running lower-resolution multiview on the second eliminates the false choice between detail and breadth. In a 12-hour shift, operators will thank you for this flexibility.
• Windows 11 IoT Enterprise LTSC 2024 with 10-year support: No forced feature updates, no telemetry overhead, no surprise UI redesigns at midnight. This matters in unattended installations and shift-change environments where muscle memory is muscle memory.
• FIPS 140-2 Level 2 TPM 2.0 and Secure Boot: Firmware attestation, secure provisioning, and cryptographic key binding enable zero-trust integration into enterprise identity and access management. Real value in compliance-heavy verticals (finance, healthcare, government).
• Single 1-port gigabit NIC and SSD-only storage: No spinning disk, no dual-NIC complexity. Boot time measured in seconds, not minutes. Network segmentation is simpler when there's only one cable to manage.

Deployment Considerations:

• The 10°C floor temperature rating is genuinely useful for unheated shelters or outdoor equipment cabinets—a detail often overlooked in spec sheets but critical for field deployments in temperate climates.
• Audio stream support (200 simultaneous) is a gotcha in reverse: if your deployment has no IP speakers or intercoms, you're licensing overhead. For audio-light sites, verify that unused licenses won't inflate your software support costs.
• Single network port means no built-in NIC redundancy. High-availability surveillance operations should pair this with a managed switch and link aggregation or failover at the infrastructure layer, not at the workstation itself.

The S9301 Mk II earns its position as the go-to console for distributed command centers, retail security hubs, and multi-site banking operations where space is finite and compliance is non-negotiable. It's not a camera recorder—it's a client workstation designed to pull video from central recorders and present it cleanly. Size constraints and fanless operation make it the right tool for reception desks and control room corners where a full tower or rack simply won't fit.
