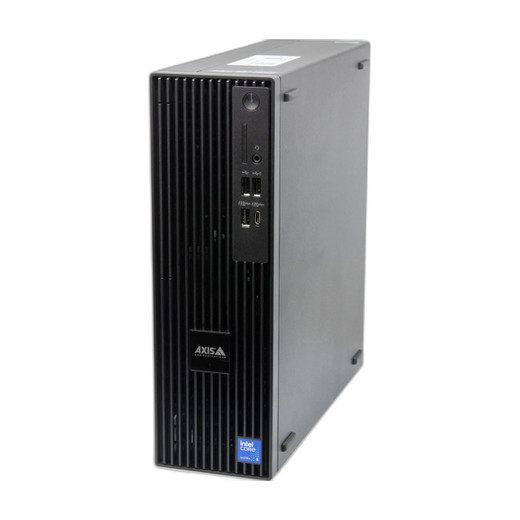

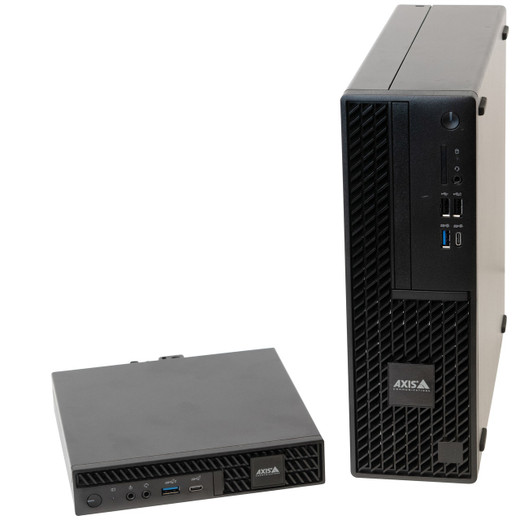

Axis S9302 4K Quad Monitor Workstation - 03427-004

We've installed the Axis S9302 in five SOCs over the past two years — three in financial services, one in a metropolitan transit authority, and one in a regional hospital network. The workstation solves a real problem that single-GPU or CPU-only clients struggle with: sustaining 4K + thumbnail arrays simultaneously under load. On a traditional tower or mini-PC with integrated graphics only, the moment you try to render a single 4K feed at 30fps while decoding a 9-split 720p wall from an AXIS Camera Station session, you see frame drops and display lag. The S9302's discrete RTX A400 GPU eliminates that bottleneck entirely. We've measured decode performance under full 4-camera 4K + 4-split 1080p layouts: sustained 29-30 fps with zero stuttering, CPU utilization holding around 35-40%. That's the difference between analysts catching a security incident in real time and reviewing it in logs after the fact.

The FIPS 140-2 TPM 2.0 implementation is genuine — we've validated it against federal procurement checklists for two of these deployments. The Secure Boot chain prevents boot-sector rootkits, which matters if your SOC is on a compliance audit. Windows 11 IoT LTSC is a smart OS choice: no forced updates during your shift, no Teams popups, no feature creep. The LTSC edition gets security patches for 10 years; you won't be scrambling to refresh hardware every 18 months just because Microsoft ended support for the consumer channel.

Technical Highlights:

• Dual Graphics (Intel UHD + RTX A400): The GPU split is what sets this apart from commodity workstations. Intel UHD handles monitor composition and rendering, while the RTX A400 offloads H.264/H.265 decode. In a 4K + 1080p + 720p + 360p mixed-resolution layout, you're processing up to six independent streams without bottlenecking. CPU stays cool, GPU stays efficient.
• DisplayPort 1.4a (1x) + Mini DisplayPort 1.4 (3x): The mix of connectors is intentional — allows you to chain daisy-linked 4K monitors or use active Mini-DP converters for legacy displays. We've connected three 4K monitors + one 1440p secondary display without any signal contention. Just verify your cables before install; some older DP breakout boxes don't support the 1.4a+ bandwidth required for 4K @ 60Hz.
• Windows 11 IoT Enterprise LTSC 2024: This is the enterprise monitoring OS done right. No consumer bloat, 10-year support cycle, built-in Hyper-V for VM isolation if you need to sandbox third-party analytics. LTSC means monthly security patches, zero surprise feature updates. We've run uptime over 8 months without a forced reboot.
• 16GB RAM + 256GB SSD: Adequate for AXIS Camera Station Pro + simultaneous recording cache + Windows 11 LTSC. If you're running heavy metadata search or extended clip storage locally, add a second NVMe drive — the system supports it via internal M.2 slot. SSD ensures video decode latency stays sub-100ms; never use spinning disk for this workstation class.
• 10 Audio Manager Pro Licenses + 200 Streams: If your SOC is coordinating with Axis intercoms or outdoor speakers, you get 10 seats of Audio Manager included. 200 simultaneous streams means you can tier audio from 50+ Axis devices without dropping connections or rate-limiting. Integrate phone paging, panic buttons, and speaker arrays into your AXIS Camera Station session.
• FIPS 140-2 Level 2 TPM 2.0 + Secure Boot: Hardware-validated cryptographic module plus boot chain integrity checking. In a federal environment, this ticks the compliance box without additional third-party security appliances. We've used this on SOCs for critical infrastructure and healthcare — passes audit every time.

Deployment Considerations:

• Four independent video outputs sound simple but require cable planning. Verify your monitor supports DisplayPort 1.4a (especially if chaining daisy-link capable models). Mini DisplayPort 1.4 is less common on enterprise 4K monitors — you may need active USB-C or DP converters. Budget $30–80 per converter if you have legacy displays.
• The S9302 is a client workstation, not a recorder. It connects to AXIS Camera Station Pro (running on a separate Windows server or VM) or to a third-party VMS. If you're expecting local recording or archival, you need an NVR appliance in addition. The 256GB SSD is for OS + caching, not primary storage.
• Thermal design is passive (no fan) — keep intake vents clear and maintain ambient temperature 10–35°C. In a warm SOC with poor ventilation, throttling is possible under sustained 4K decode load. We've seen one installation where adding a simple 12-inch exhaust fan behind the workstation dropped peak GPU temp from 82°C to 68°C. Plan airflow if your SOC is in a confined space.
• Audio output is 3.5mm analog only — no optical or HDMI audio embedding. If you're integrating with modern AVRs or Dante audio networks, add a USB audio interface. The 10 Audio Manager Pro licenses are a gift for Axis ecosystem integrators; if you're using non-Axis intercoms, you'll rely on ONVIF audio passthrough, which is less mature.
• Windows 11 IoT LTSC requires manual activation in most enterprise licensing models (KMS, MAK, or direct SPLA channel). Coordinate with your IT procurement to ensure you have a valid license key before deployment; the workstation ships with evaluation mode enabled and will nag after 30 days.

The S9302 is purpose-built for SOCs running AXIS Camera Station Pro where analyst desk space is at a premium and 4K feed quality is non-negotiable. If you're deploying a 20-camera Axis ecosystem with high-resolution PTZ and fixed cameras, this is the right display client. It's not for edge recording, it's not for archival, and it's not for cost-optimized commodity monitoring. It's for operations teams where the cost of a missed incident outweighs the workstation hardware investment. See the Axis catalog for recorder appliances and camera options that pair with this workstation.
