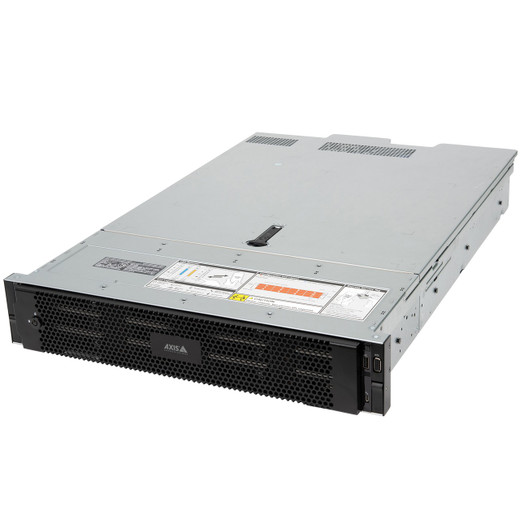

Axis 02542-001 S1296 96-Channel 4K Rack Recording Server
Overview
The Axis 02542-001 is a 2U rack-mounted network video recorder engineered for large-scale surveillance deployments requiring simultaneous recording across dozens of cameras at 4K resolution. This is a purpose-built appliance, not a software-only solution — it ships with pre-installed network video recorders and Axis Camera Station VMS, ready to commission without additional software licensing or configuration complexity. Up to 96 recording channels means this device can handle sprawling warehouse floors, multi-building campuses, or critical infrastructure sites where camera count directly drives TCO.
Key Features
- 96-Channel 4K Recording Capacity: The 02542-001 records simultaneously across up to 96 Axis IP cameras at 4K (8MP) resolution on each channel. For high-occupancy environments — distribution centers, manufacturing plants, transit hubs — this eliminates the cost and complexity of segmenting surveillance into separate NVR clusters.
- H.265 Video Compression: H.265 reduces bitrate 40–60% compared to H.264 under identical scene conditions. Across 96 channels recording 24/7, that compression gap translates directly into lower storage bills and reduced network utilization. The server supports H.265+, H.265, H.264+, and H.264 to maintain backward compatibility with legacy camera firmware.
- 96TB Raw Storage with 6× SATA Bays: The system provides six 3.5" SATA HDD bays, supporting drives up to 16TB each for a maximum 96TB configuration. 6× redundancy means if one drive fails mid-shift, recording continues uninterrupted — a real operational requirement in warehouses and distribution sites where downtime exposes liability gaps. Storage is not pre-installed; you provision drives to match your retention policy.
- Dual 1 Gigabit Ethernet Ports: Two 1GbE ports allow primary and backup network paths or separate traffic segmentation (management on one port, camera feed on the other). For sites with separate corporate and surveillance networks, this isolation reduces attack surface and simplifies bandwidth planning.
- TPM 2.0 Secure Boot: A Trusted Platform Module stores encryption keys and certificates, preventing unauthorized firmware modifications. In regulated environments (airports, banks, healthcare), this hardware-level integrity assurance reduces compliance audit friction.
- Pre-Installed Axis Camera Station VMS: The recorder ships with Camera Station software already deployed, eliminating weeks of licensing negotiation and software hardening. Configuration, user accounts, and recording schedules are managed through the intuitive web UI or mobile app.
- ONVIF Profile S/T Compatibility: While optimized for Axis camera ecosystems, the 02542-001 supports ONVIF-compliant third-party cameras with acknowledged limitations. If you have a mixed vendor environment, verify the specific model against Axis compatibility matrices before committing.
- Continuous, Motion-Triggered, and Scheduled Recording Modes: You can assign different recording policies to different camera groups — 24/7 on entry doors, motion-on-demand in storage aisles, scheduled during business hours in offices. This flexibility cuts storage consumption without sacrificing coverage.
- Redundant Power and USB Backup: The 02542-001 accepts 12VDC at 5A (typically delivered via a managed PDU in a rack). Two USB 3.0 ports support local backup to external drives, bypassing network bottlenecks when archiving footage for legal holds or incident review.
- 1× HDMI and 1× VGA Display Output: Direct console access for emergency viewing, system diagnostics, or offline playback without relying on network connectivity.
Integration & Compatibility
The 02542-001 is purpose-built for Axis network cameras and includes native integration libraries for common Axis models. ONVIF Profile S and T support allows integration of third-party ONVIF cameras, though frame-rate negotiation, resolution fallback, and advanced metadata features may not work identically to native Axis hardware. Before mixing vendors, test a small sample in your network environment. For VMS architecture planning, the pre-installed Camera Station eliminates software licensing friction — all users and recording licenses come with the appliance, not as annual SaaS subscriptions.
Frequently Asked Questions
Q: Can I expand storage beyond 96TB on the Axis 02542-001?
A: The native 6× SATA bay configuration maxes at 96TB (6× 16TB drives). The system supports external USB storage via the two USB 3.0 ports for additional backup or archive capacity, but external drives are not part of the native recording pool.
Q: Does the 02542-001 require a network connection to record?
A: No. The server records locally to internal SATA drives. Network connectivity is required for camera discovery, software updates, and remote viewing, but a network outage does not interrupt local recording.
Q: What happens if a hard drive fails during operation?
A: RAID redundancy on the 6-bay configuration (exact RAID level depends on provisioning) allows continued operation with one failed drive. Recording does not pause, but replacement should be scheduled promptly to restore full fault tolerance.
Q: Is the 02542-001 NDAA compliant?
A: The evidence does not specify NDAA Section 889 compliance. Verify with the manufacturer or your specialty retailer before deploying in federally funded projects.
Q: Can I use the Axis 02542-001 with non-Axis cameras?
A: Yes, via ONVIF Profile S and T support, but native performance and analytics features are optimized for Axis hardware. Mixed deployments should be validated with a pilot before full rollout.
Q: What is the warranty period for the 02542-001?
A: Warranty details are not specified in the available evidence. Contact the manufacturer or specialty retailer for warranty terms, service response time, and parts replacement policies.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02542-001 is a workhorse appliance for single-site, large-channel deployments where administrative overhead and software licensing complexity matter as much as per-camera cost. The 96-channel, 4K, H.265 combination means you can deploy this one box and stop managing license keys, software updates, and multi-node cluster failover — a genuine advantage in understaffed security operations.
Technical Highlights:
- H.265 Compression Efficiency: Across 96 active channels, H.265 cuts bitrate 40–60% versus H.264. At 4K (8MP) per channel, that compression delta alone often pays for the recorder's premium cost within 18–24 months of reduced storage acquisition and network infrastructure scaling.
- 6× SATA Bay RAID Redundancy: Single-drive fault tolerance means a failed 16TB HDD does not halt recording or trigger an emergency page at 3 AM. The RAID rebuild window is your operational timeline, not a crisis window.
- Dual 1GbE Ethernet Segregation: Network isolation between camera traffic and management/remote viewing keeps surveillance data off the corporate LAN, reducing compliance friction in regulated industries and simplifying incident response when a camera is compromised.
Deployment Considerations:
- Drive Installation is Your Responsibility: The 02542-001 ships with empty bays. You must source, install, and configure SATA drives before first boot. Budget 2–4 hours for hardware setup and RAID configuration, especially if your team is unfamiliar with rack appliance provisioning.
- ONVIF Third-Party Cameras Are Lossy: Non-Axis cameras work, but metadata, deep learning analytics, and frame-rate negotiation fall back to lowest-common-denominator ONVIF. If you plan a mixed vendor strategy, test the specific models in your network before committing. Native Axis integration always delivers better feature parity.
- Network Utilization Can Spike with 96× 4K Streams: Even with H.265, 96 simultaneous 4K camera feeds can saturate dual 1GbE ports if all cameras are at full bitrate. In practice, motion-triggered recording and per-camera bitrate capping keep average utilization manageable, but peak usage during a security incident can cause packet loss. Plan for dedicated bandwidth or deploy the 02542-001 on a separate surveillance VLAN.
The 02542-001 shines in large, single-site deployments — warehouses, data centers, manufacturing plants, campuses — where 96 cameras on one recorder eliminates the operational burden of managing distributed NVR clusters. It's not ideal for multi-site, geographically distributed surveillance, where cloud-based or edge-distributed recording architectures scale more gracefully.
