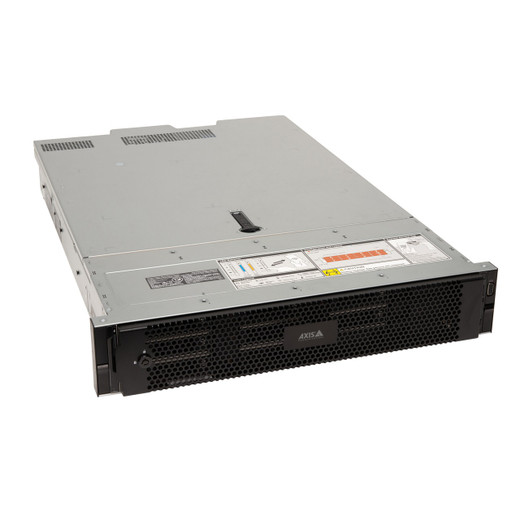

Axis 02540-001 S1264 64TB 96-Channel NVR Rack Server
Overview
The Axis 02540-001 is a purpose-built network video recorder (NVR) designed to handle large-scale surveillance deployments. This 2U rack-mounted server supports up to 96 camera channels and provides 64TB of onboard storage—enough capacity for extended retention periods in demanding environments. The unit runs Axis Camera Station software, pre-installed and configured, so you can deploy it into your network infrastructure without lengthy setup procedures.
The 02540-001 is built around the reality of multi-camera installations: you need centralized recording, reliable storage, and the ability to scale without replacing hardware. This server bridges that gap by consolidating dozens of IP camera feeds into a single, rack-mountable appliance. It supports both Axis network cameras and third-party ONVIF-compliant cameras, making it flexible enough to fit mixed-vendor environments.
Key Features
- 96-Channel Capacity: Manages up to 96 simultaneous camera streams. This headroom matters—you avoid the trap of maxing out a recorder and then scrambling to provision a second one. Scale your camera count without immediate hardware replacement.
- 64TB Storage: Pre-installed storage eliminates procurement delays for external arrays. At 8MP per channel (the quoted resolution in the product family), 64TB provides substantial retention—typically 7–14 days of 24/7 recording depending on bitrate and scene complexity. Real retention math: higher-motion scenes (retail, parking lots) consume more storage than static hallway feeds.
- H.265 Compression: H.265 (HEVC) reduces file sizes roughly 40–60% compared to H.264 without perceptible quality loss in most surveillance use cases. On a 96-channel recorder, this translates directly to fewer storage refreshes and lower total cost of ownership over 3–5 years.
- 2U Rack Form Factor: Fits standard 19-inch server racks alongside network switches and power distribution. Thermal and electrical planning are simpler when your recording server occupies known rack space rather than sitting in a closet on borrowed outlet power.
- Wired Connectivity (Gigabit Ethernet): All camera feeds and management traffic flow over standard copper or fiber uplinks. No wireless bottlenecks—bandwidth-intensive video streams stay on deterministic, switched infrastructure.
- RAID Data Protection: Built-in RAID configuration safeguards against single-drive failure. In a 96-channel recorder, losing a drive and losing footage are not the same event—RAID buys you time to replace hardware before degradation becomes critical.
- ONVIF Profile S Support: Interoperability with third-party ONVIF-compliant cameras (Hikvision, Uniview, Dahua, etc.) breaks vendor lock-in for camera selection. You are not forced to buy only Axis cameras to feed this recorder.
- microSD Card Storage Option: Selected cameras can record locally to microSD for failover or edge storage, independent of the central NVR. Useful when WAN bandwidth is constrained or when local retention is mandated by policy.
Integration & Compatibility
The 02540-001 is optimized for Axis Camera Station VMS software, which ships pre-loaded. This eliminates the typical software licensing negotiation and streamlines deployment. The server pairs seamlessly with Axis IP cameras but does not require them—any ONVIF-compliant network video recorder feed works. Multi-vendor camera deployments (mixing Axis PTZ with third-party domes, for example) are fully supported.
Network integrators often pair this NVR with managed PoE switches to simplify camera power and data delivery. A single uplink from the switch to the 02540-001 consolidates all video traffic, reducing sprawl in your rack and network fabric.
What's in the Box
- Axis S1264 64TB 96-Channel NVR Rack Recording Server (02540-001)
- Rack Mounting Kit
- Power Cords
- Installation Guide
- Axis Camera Station License Information
- System Recovery Documentation
- Warranty and Support Information
Frequently Asked Questions
Q: Is the 02540-001 compatible with non-Axis cameras?
A: Yes. The 02540-001 supports any ONVIF Profile S-compliant IP camera, including models from Hikvision, Uniview, Dahua, and other vendors. You are not restricted to Axis hardware.
Q: What is the typical retention period with 64TB of storage?
A: Retention depends on per-channel bitrate and frame rate. At moderate bitrates typical of surveillance (2–4 Mbps per 8MP channel), expect 7–14 days of 24/7 recording across all 96 channels. Higher-motion scenes consume more storage; static scenes (hallways, parking garages) use less.
Q: Can I expand storage beyond 64TB?
A: The 02540-001 ships with fixed onboard storage. Consult Axis documentation or your integrator for guidance on external storage options or multi-recorder architectures if you need unlimited retention.
Q: Does the 02540-001 require external power distribution?
A: Yes. The unit plugs into standard AC power via the supplied power cords. Coordinate with your facilities team to ensure adequate rack PDU outlets and UPS capacity for continuous operation.
Q: What VMS platforms work with the 02540-001?
A: Axis Camera Station is pre-installed and optimized. Third-party VMS platforms that support ONVIF (Milestone XProtect, Genetec Security Center, etc.) can integrate with this recorder, though direct optimization is not guaranteed.
Q: Is the 02540-001 suitable for small installations?
A: Not ideally. The 96-channel capacity and 64TB storage are built for large deployments. For fewer than 16 cameras, consider a smaller form-factor NVR or edge recording on individual cameras to avoid over-provisioning.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02540-001 is a solid workhorse for enterprise and large municipal surveillance. The 64TB storage paired with H.265 compression is where the value lives—you're not paying for a recorder that fills up in three weeks. The 96-channel headroom lets you grow from 40 cameras to 80 without forklift-upgrade scenarios midway through a project lifecycle.
Technical Highlights:
- H.265 Compression at Scale: On a 96-channel recorder, H.265 reduces bitrate roughly 40–60% versus H.264. That translates to 2–3 additional weeks of 24/7 retention from the same 64TB before you need to archive or delete. In a warehouse or campus setting, that's the difference between 10-day and 14-day retention windows—meaningful for forensics and audit trails.
- 96-Channel Consolidation: Single point of management beats five 16-channel recorders scattered across three buildings. One backup procedure, one power circuit, one network uplink. Operational overhead drops measurably.
- ONVIF Flexibility: The 02540-001 records Axis, Hikvision, Uniview, and any other ONVIF-compliant camera. Mixed-vendor deployments are standard practice in retrofit scenarios—do not let vendor lock-in concerns block this platform.
Deployment Considerations:
- Storage is fixed at 64TB. If your deployment demands 30+ days of 24/7 retention across all 96 channels, you will need external NAS or tiered archival. Budget for that conversation early.
- Rack power and cooling are non-negotiable. A 2U server in a sealed rack without proper airflow will thermal-throttle. Verify your rack has adequate PDU capacity and exhaust ventilation before ordering.
- Network saturation is real. Feeding 96 cameras into a single NVR requires disciplined bandwidth management—typically a dedicated VLAN and gigabit uplink. Do not share this recorder's network with general IT traffic.
Position the 02540-001 for municipal traffic systems, large retail chains, warehouse and logistics sites, and campus security operations where 24/7 retention across dozens of cameras is non-negotiable and central archival is mandatory. This is not a small-office NVR—it is the backbone recorder for deployments that need proven reliability and room to grow.
