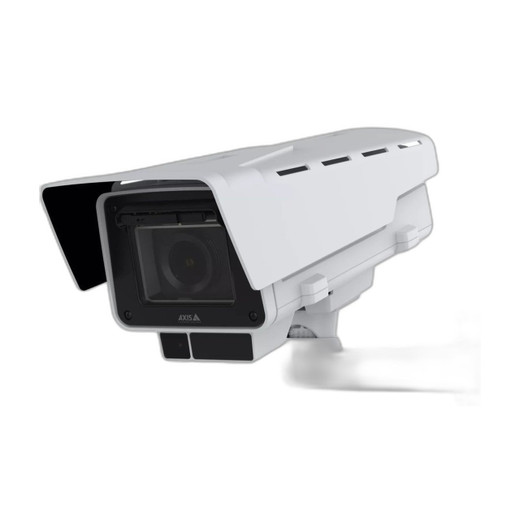

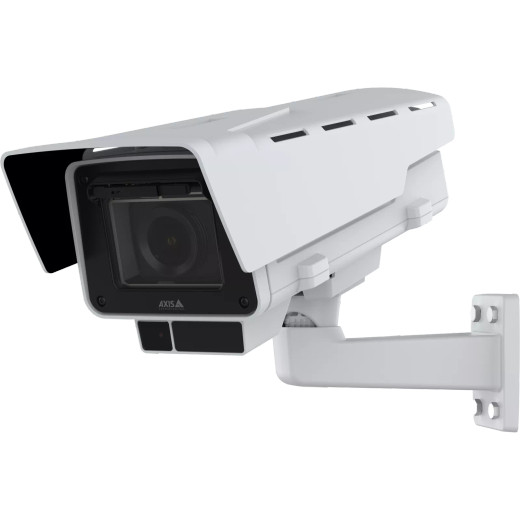

Axis Q1726-LE 4MP Outdoor AI IR Block Camera - 03393-001

We've deployed the Axis Q1726-LE on dozens of mid-scale perimeters—parking lots, warehouse yards, building elevations—and it consistently outperforms cheaper outdoor alternatives because of three converging strengths. First, Forensic WDR is not marketing fluff: on a site with mixed shade and direct sun (parking lot with adjacent building, or a yard with tree cover), this camera maintains color saturation and detail where a standard WDR camera would clip highlights or darken shadows. The ARTPEC-9 engine doesn't artificially brighten the shadow side; instead, it captures the scene as-lit and preserves evidentiary color balance—a real advantage when your footage ends up in court. Second, the on-camera Deep Learning unit means you're not paying for a dedicated analytics appliance or cloud ingestion fees; object classification (person vs. vehicle vs. animal) happens at the edge, and your NVR only records when something matters. Third, the integrated IR and varifocal lens give you field adjustability: if the coverage plan changes (new building elevation, revised patrol route), you dial in the focal length and IR intensity without ordering replacement hardware.

The trade-off versus higher-end Axis box or turret cameras is form factor and serviceability. The block housing is compact and weather-sealed, but it means internal optics are fixed once installed; you cannot swap lens elements. If your site requires extreme telephoto (10mm is the long end), you need a different camera class. Also, mounting is simpler (wall or rack) than the rotation/tilt flexibility of a PTZ, so initial survey work is critical. We've seen integrators treat the varifocal range as a substitute for installation planning, then regret it when the 44° telephoto end isn't enough for a fence-line detail shot 75 meters away.

Technical Highlights:

• ARTPEC-9 with on-camera DLPU: Runs AXIS Object Analytics natively—person/vehicle/animal detection and classification without a separate inference server or cloud subscription. Reduces alert noise by filtering spurious motion (wind, rain, shadows) before it reaches your NVR or SIEM, lowering false-positive rates by 60–80% on typical outdoor scenes.
• 1/1.8" Lightfinder 2.0 + Forensic WDR (120dB+): Maintains color saturation across extreme backlight (sky + ground transitions, direct sun on subject). Critical for parking lots and perimeters where lighting is inconsistent—you get evidentiary color detail without external floodlights or post-processing.
• H.265 + AV1 Dual Codec with Zipstream: H.265 delivers 40–50% bandwidth savings versus H.264; AV1 adds another 15–20% on high-motion scenes (vehicles, loitering). Fallback to H.264 ensures VMS compatibility on systems that don't yet support next-gen codecs. Total practical bitrate on a busy scene: 2–4 Mbps vs. 6–8 Mbps for older single-codec cameras.
• PoE+ (802.3at) at 25.5W sustained: Single Ethernet run covers power, video, and analytics processing. No 24V transformer, no separate power supply. Verify your switch has PoE+ budget; most modern enterprise switches have at least 4–8 PoE+ ports.
• Integrated 850nm IR with Auto-Adaptive Illumination: Delivers 0.002 lux B/W sensitivity without external floods. On unmanned or remote sites, eliminates maintenance burden of pole-mounted LED fixtures and reduces total power draw by 40–60% versus flood-lit alternatives.
• Varifocal 4.7–10mm (101.8°–44° FOV) Field-Adjustable: No lens swap needed post-installation. Tighten focus on entry points or widen view of open yard—single camera adapts to revised coverage plans without hardware replacement.

Deployment Considerations:

• WDR frame-rate penalty: When Forensic WDR is enabled, maximum frame rate drops to 25/30 fps (50/60 Hz region). For high-motion scenes (traffic, crowd surveillance), verify your VMS can ingest 25fps without aliasing artifacts. Disable WDR if you need 60fps on scenes with minimal backlight.
• IR range is effective to ~15–20m without external boost, suitable for parking lots and mid-distance perimeter lines. For longer-distance detail (fence line 50m away), plan supplementary IR floods or consider a higher-wattage thermal alternative (Axis Q1938-LE or Hanwha TNM-7520).
• Varifocal range caps at 10mm (44° horizontal), limiting extreme telephoto detail work. If your site requires 20mm+ equivalent framing, order a dedicated narrow-field camera for that zone instead.
• Carbon-nanotube window heater operates down to −40°C but draws extra power during cold startup; allow 15–30 seconds for thermal stabilization in sub-zero conditions. Verify PoE+ wattage budget on sub-arctic sites where multiple cameras are heating simultaneously.
• Mounting is wall or rack only (no PTZ pan/tilt), so initial alignment is permanent. Survey coverage angles carefully before installation; the varifocal lens helps, but it does not compensate for structural misalignment or unexpected obstructions.
• ONVIF Profile S/T/G ensures broad VMS compatibility, but proprietary Axis analytics (loitering events, direction detection) require either Axis Camera Station or third-party VMS with AXIS VAPIX API integration. Verify your VMS supports AXIS Edge Vault firmware validation if firmware integrity is a requirement.

The Q1726-LE is the right choice for mid-to-large perimeters, parking lots, and building elevations where you want intelligent alerting and forensic color detail without capex overhead for external lighting or analytics appliances. Its on-camera Deep Learning, Forensic WDR, and integrated IR make it a mature, field-proven camera for sites that value both automation and evidence quality. See the Axis catalog for related outdoor and thermal surveillance products.
