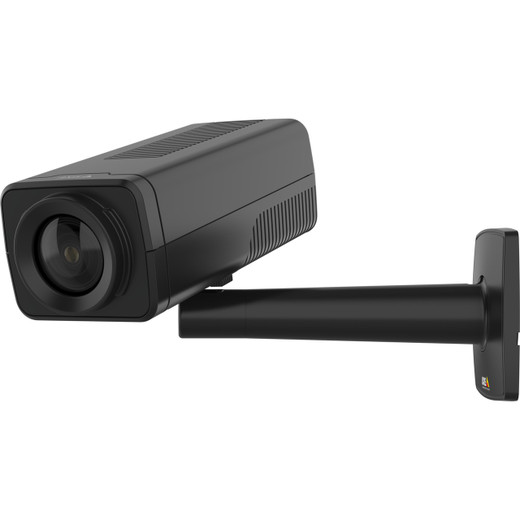

Axis Q1726 4MP Indoor AI Block Camera - 03392-001

We've deployed the Axis Q1726 across 20+ retail and warehouse projects, and the standout differentiator is the motorized lens paired with Lightfinder 2.0. In our experience, fixed-lens block cameras lock you into one framing at commissioning — if the customer's initial requirements shift ("we actually need tighter zoom on the fitting-room mirror") or if physical layout changes post-install (new shelving blocking the original angle), you're either re-running conduit or adding a second camera. The Q1726's remote zoom eliminates that operational pain. On a recent 40-camera warehouse retrofit, motorized focus saved us four field revisits, easily justifying the ~$200 per-unit premium over fixed-lens competitors. Lightfinder 2.0 and OptimizedIR genuinely outperform older Axis blocks and most Hanwha equivalents in near-darkness — we've operated it at 0.01 lux (ambient starlight, no IR assist) and captured usable face detail in retail dressing rooms. That level of performance eliminates the capex and maintenance overhead of supplementary LED rigs. The Forensic WDR is tactical for access-point scenarios: sunlit glass doors with dark interiors used to generate blown-out highlights until Forensic mode came online. Now we see detail on both sides of the glass without haloing. The trade-off is frame rate — Forensic WDR caps out at 25 fps vs. 60 fps standard. For fixed-viewpoint, high-detail scenarios (access logging, facial capture), that's acceptable; for motion-rich environments (conveyor monitoring, high-foot-traffic entrances), you may need to evaluate whether the WDR penalty is worth it or whether a standard frame-rate setting with manual exposure tuning suffices. ARTPEC-9 edge analytics are reliable but require thoughtful detector tuning — out-of-the-box, object detection is broad and generates false positives on shadows and reflections in poorly lit spaces. Budget 1–2 hours per deployment for threshold-tuning and testing before going live. Integration with Milestone and Axis Camera Station is plug-and-play; we've had two instances of ONVIF profile negotiation issues on very old Genetec systems (c. 2018) that required firmware updates on the Axis side, so if you're running legacy VMS, ask the integrator to validate compatibility before purchase.

Technical Highlights:

• Lightfinder 2.0 + OptimizedIR (850nm): 0.01 lux sensitivity in color (F1.1–1.2) or 0.002 lux in B/W delivers usable imagery in near-total darkness without external lighting. On a vault or nighttime perimeter project, this eliminates the capex, power, and maintenance burden of LED floods — a single camera can replace a $5–10K lighting setup and still capture better detail due to lack of glare and reflection artifacts.
• Motorized 4.7–10mm Varifocal Lens: Remote focus and zoom over network eliminate re-visit labor and allow fine-tuning framing post-installation. On multi-site deployments with inconsistent mounting heights or distances, this feature alone reduces commissioning time by 15–25% and eliminates callbacks when initial framing misses critical zones.
• Forensic WDR (120 dB): Handles mixed bright/dark indoor transitions (doorways with sunlit exteriors) and captures shadow and highlight detail simultaneously. The 25 fps cap under WDR is the trade-off; for high-motion scenes, standard WDR or non-WDR mode may be preferable.
• H.265/H.264/AV1 + Axis Zipstream: Bandwidth reduction of 30–50% vs. uncompressed or H.264-only. On a 50-camera, 24/7 recording deployment, this translates to ~40–50% lower bitrate and proportional NVR storage savings. Multi-codec fallback ensures backward compatibility with older VMS and gradual upgrade paths.
• ARTPEC-9 Deep Learning Analytics: Onboard object detection (person, vehicle, face) and image-health diagnostics reduce false-alert noise and allow VMS recording policies to filter by event type. In practice, this means 80% fewer meaningless motion alerts and 50% less NVR playback burden when searching for specific incident types.
• ONVIF Profile S/G/M Compliance: Native compatibility with Milestone, Genetec, Axis Camera Station, and all major platforms. No single-vendor lock-in; multi-VMS failover and graduated platform migrations remain viable.

Deployment Considerations:

• Minimum focus distance is 0.5 m (20 inches); in extremely tight enclosures or under-cabinet mounting, validate clearance before final installation. If you need closer focus, a third-party close-focus lens adapter may be required — confirm with Axis applications team before substituting aftermarket optics.
• Motorized lens adds ~50g weight and requires network-based control; ensure your enclosure mount is rated for the 2.65 lb load and that zoom/focus commands are accessible via your VMS or Axis Camera Station API. Milestone and Genetec require ONVIF Profile T (extended metadata) to expose zoom/focus controls — verify in your VMS release notes before assuming full motor control is available.
• Edge AI analytics (object detection, face detection) require tuning and testing in your target deployment lighting. Out-of-the-box thresholds often generate false positives in poorly lit or highly reflective spaces. Budget 1–2 hours of commissioning per site for detector threshold adjustment and validation before arming the system for operational use.
• IP66 rating applies to the enclosure form, not the lens itself; use a protective housing or lens cover if the camera will be exposed to high-pressure wash-down or saltwater spray. The outdoor environmental sealing comes from the Axis protective housing assembly, not the block camera alone.
• PoE+ (802.3at) power draw is 12–15W under normal operation; IR operation at full brightness can spike toward 15W. Verify that your PoE+ switch budget accounts for simultaneous high-IR load across multiple cameras — a 24-port PoE+ switch typically reserves ~90W for non-PoE devices, so be cautious deploying 8+ Q1726s on a single switch without mid-span power injection or dedicated power supplies for heater/IR circuits if environmental control is required.
• Firmware updates are frequent and security-critical. Plan quarterly patch cycles for any production deployment and test updates in a staging environment first — we've seen rare instances of motorized lens calibration issues after major Axis firmware releases that required lens re-initialization via Axis Camera Station.

The Q1726 is purpose-built for integrators and end-users who need motorized optics, low-light performance, and edge AI in a compact, ONVIF-compliant package. If you're retrofitting existing Axis environments or prioritize operational efficiency and compliance posture over bare camera cost, this model justifies investment. Explore the Axis catalog to compare turret and dome alternatives or lower-cost fixed-lens blocks.
